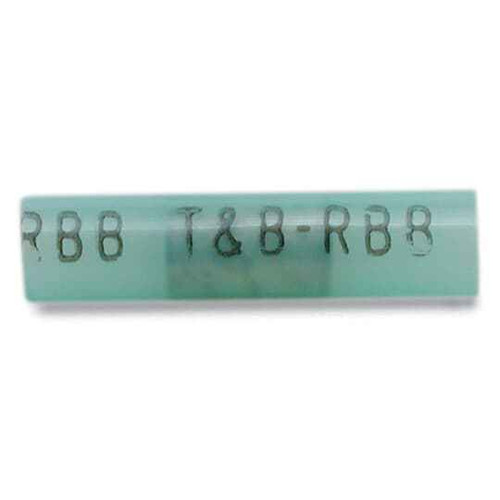

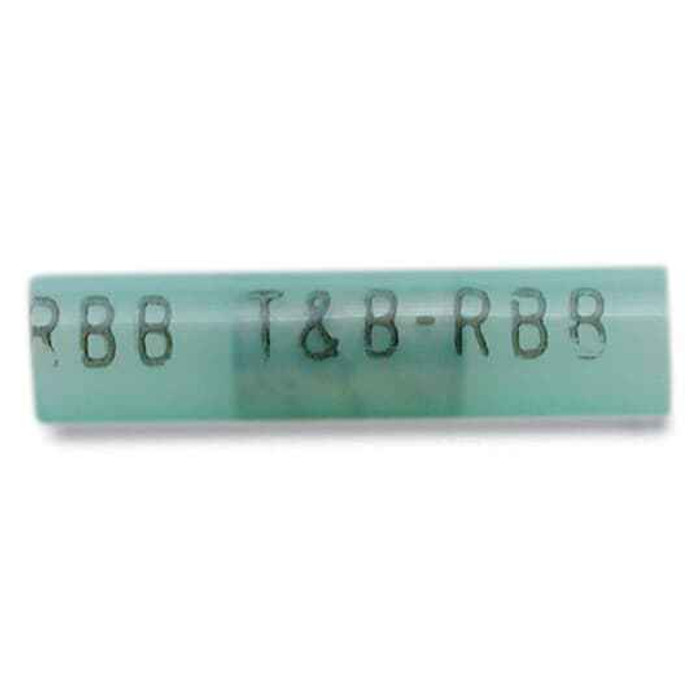

INS NYL BUTT SPLICE, 4 LEN 1.85 DIA
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- Splices
- Product Type:
- Nylon Insulated Butt Splice
- Standards:
- UL E9809
- Temperature Range:
- 105 °C
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Yellow
- Product Material:
- Copper
Sta-Kon 2RF4 – Frequently Asked Questions
1) What voltage and temperature can the Sta-Kon 2RF4 butt splice handle?
The 2RF4 nylon insulated butt splice is rated 600 V with a 105 C temperature rating, which covers standard building power and control wiring in panels, fixtures, and motor connections where ambient heat is a factor.
2) Is the Sta-Kon 2RF4 splice UL listed?
Yes. The 2RF4 carries UL file E9809, so it can be used on work inspected to a UL-listed termination requirement.
3) The yellow Sta-Kon butt splice - what wire size does yellow mean?
Yellow is the standard color code for 12 and 10 AWG on insulated terminals and splices, and the 2RF4 is the yellow-insulated version. If you are splicing 16-14 AWG you want a blue-coded splice instead, and 22-18 AWG takes red.
4) Is the barrel on the Sta-Kon 2RF4 copper or aluminum?
Copper. That makes it a copper-only connector, so use it on copper conductors, not aluminum. Crimp with the die matched to the insulation color.
5) What is the difference between a nylon insulated butt splice and a vinyl one?
Nylon insulation, as on the 2RF4, takes more abuse during pull-through and handling and holds up at higher heat, 105 C here. Vinyl barrels are typically rated lower and tear more easily when a splice is dragged through a conduit body or a tight j-box. Both do the same electrical job; nylon is the one to pick where the splice gets handled or runs warm.
6) Can I use the Sta-Kon 2RF4 to join two wires end to end inside a junction box?
That is exactly what it is for. A butt splice joins two conductors end to end in a single insulated barrel, crimped at each end, giving a lower-profile connection than a wire nut and one that will not back off from vibration. It is a crimp connector, so you need the proper crimp tool, not pliers.
7) What is the manufacturer part number for this Sta-Kon yellow butt splice?
Order it as Sta-Kon 2RF4. That is the full manufacturer part number for the yellow nylon insulated butt splice rated 600 V, 105 C.
8) Where is the Sta-Kon 2RF4 manufactured?
The 2RF4 is made in Mexico. Buyers tracking country of origin for procurement or bid documentation can record it as MX.
