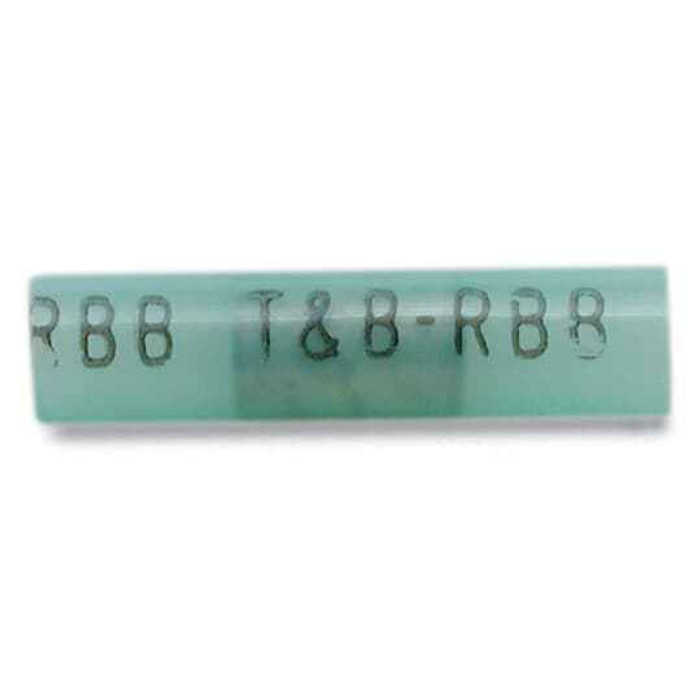

INS NYL BUTT SPLICE 6 LEN 1.85 DIA
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- Splices
- Product Type:
- Insulated Butt Splice
- Standards:
- UL E9809
- Temperature Range:
- 105 °C
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon 2RE6 – Frequently Asked Questions
1) What wire gauge does the blue Sta-Kon 2RE6 butt splice take?
Blue is the standard color code for 16-14 AWG on nylon insulated terminals, and the 2RE6 is a blue insulated butt splice. If you are splicing 12-10 AWG, you need the yellow size instead; 22-18 AWG takes red. Match the color to the conductor before you crimp, because an oversized barrel will not hold under pull test.
2) Can I use the Sta-Kon 2RE6 butt splice on a 480V motor circuit?
Yes. The 2RE6 nylon insulated butt splice carries a 600 V rating, which covers 480 V and 277 V branch circuits as well as standard 120/208 and 240 V work.
3) Are the barrels on the 2RE6 butt splice copper or aluminum, and can I use them on aluminum conductors?
The barrel is copper, so the 2RE6 is a copper-only splice. Do not use it on aluminum or copper-clad aluminum conductors; those require a connector marked AL or AL9CU with the proper inhibitor compound.
4) Do I need a special crimper for the Sta-Kon 2RE6, or will my standard insulated terminal tool work?
A standard insulated-terminal crimper works, as long as you use the blue die nest. Nylon insulated splices like the 2RE6 crimp over the insulation, so the tool has to compress the barrel through the sleeve; a bare-terminal or non-insulated die will split the nylon. Crimp both ends and pull-test each conductor.
5) What exact part number do I order for the blue Sta-Kon nylon butt splice?
Order MPN 2RE6 from Sta-Kon. One model covers this item, so there is no size or finish choice to specify beyond that number.
6) Where is the Sta-Kon 2RE6 butt splice made? I have a sourcing requirement.
Country of origin is Mexico. That is the figure to cite on a procurement or trade-compliance form for the 2RE6 splice.
