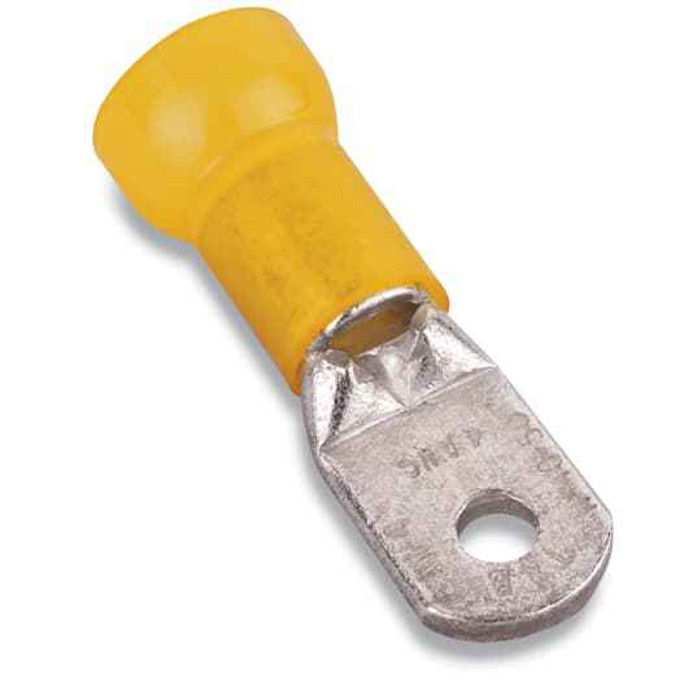

INS NYL RING TERM, 4AN, 5/16, YELLO
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 4AN
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Yellow
- Product Material:
- Copper
Sta-Kon RF10721 – Frequently Asked Questions
1) What wire size does the Sta-Kon RF10721 ring terminal crimp onto?
The RF10721 is sized for 4 AWG conductor. Yellow is the insulation color on this one, so if you are matching a bin of color-coded terminals, yellow here means the 4 AWG body, not the usual small-gauge yellow in the red/blue/yellow 22-10 AWG family. Use a crimp die matched to a 4 AWG lug, not a standard hand crimper for insulated terminals.
2) What stud or bolt size does the RF10721 ring terminal fit?
It is a 5/16 inch ring, so it drops over a 5/16 inch stud, bolt, or breaker lug screw. Check the ring tongue clears your terminal block spacing before you crimp the lug on, since a 4 AWG barrel is bulky next to adjacent poles.
3) Is this ring terminal rated for 600 volt panel and control work?
Yes, the RF10721 carries a 600 V rating and is UL recognized under file E9809, which covers it for typical panelboard, switchgear, and motor control terminations at 600 V and below.
4) Is the RF10721 terminal copper or aluminum, and can I use it on aluminum conductor?
The barrel is copper, so it is a copper-only (Cu) termination. Do not crimp it onto aluminum conductor; aluminum runs need a listed AL/CU or AL-rated connector with the proper inhibitor compound.
5) Is a ring terminal or a fork terminal the right choice for a 4 AWG battery or feeder lead?
Use the ring. A ring tongue is captive, so it cannot vibrate off a loosened 5/16 inch stud the way a fork or spade can. On heavy 4 AWG leads feeding batteries, bus studs, or motor terminals, the mass of the cable plus vibration is exactly the condition that backs a fork terminal out. Forks are for quick-disconnect service points where you want to pull the lead without removing the nut.
6) Can I order the RF10721 in a different ring size or wire gauge?
No. The RF10721 is a single configuration: 4 AWG barrel, 5/16 inch ring, yellow nylon insulation. A different stud size or conductor gauge is a different Sta-Kon part number.
7) What does the nylon insulation on this ring terminal do that a vinyl one does not?
The RF10721 uses a nylon insulating sleeve rather than vinyl. Nylon is tougher against abrasion and cut-through when the lug is pulled into a wireway or flexed at a hinged panel door, and it holds up better at elevated temperature. For a 4 AWG lead that will be bundled and pulled, that matters more than it does on small control wire.
8) For a government or institutional order, where is the Sta-Kon RF10721 made?
Country of origin is Mexico. That is the figure to put on a procurement form asking for origin on the RF10721.
