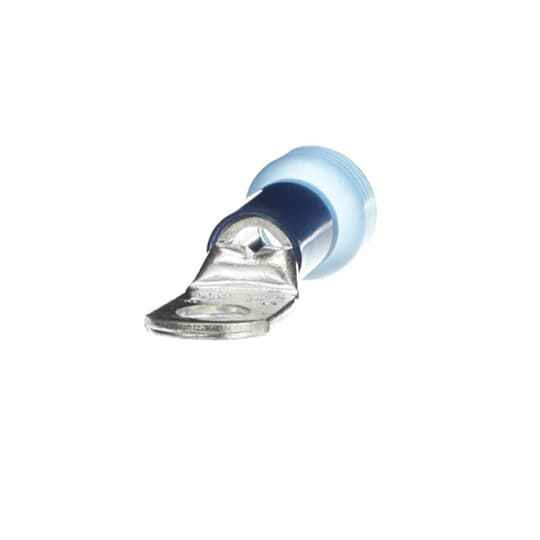

INS NYL RING TERM 6 BOLT 1/4IN BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 6 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RE6-14 – Frequently Asked Questions
1) What wire size does the Sta-Kon RE6-14 ring terminal take?
The RE6-14 is sized for 6 AWG conductor. One size only, so it should not be crimped onto 8 AWG or 4 AWG, both of which will give you a loose or over-filled barrel and a connection that will heat up. Blue is the color code on this part.
2) Is the barrel on this ring terminal copper or aluminum?
Copper. That means the RE6-14 is intended for copper conductor, not aluminum, which needs a dual-rated AL9CU connector and an anti-oxidant compound.
3) Is this ring terminal rated for 600 volt circuits?
The nylon insulation on the RE6-14 carries a 600 V rating, which covers normal commercial branch circuits, panel and motor terminations, and control wiring in an MRO setting.
4) Is the Sta-Kon RE6-14 UL listed for use on an inspected job?
It is covered under UL file E9809. That is the reference an inspector or spec writer will want when the terminal is used on a 600 V termination.
5) Do I need a special crimper for a 6 AWG nylon insulated ring terminal?
Yes, a 6 AWG barrel is beyond hand pliers or a small insulated-terminal crimper. It takes a heavy crimp tool with a die matched to 6 AWG insulated terminals. The nylon insulation stays on the barrel through the crimp, so the die must be the insulated-terminal profile rather than a bare-lug indent die.
How fast can I get the Sta-Kon RE6-14 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Sta-Kon RE6-14 come with a warranty?
Absolutely. The Sta-Kon RE6-14 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
