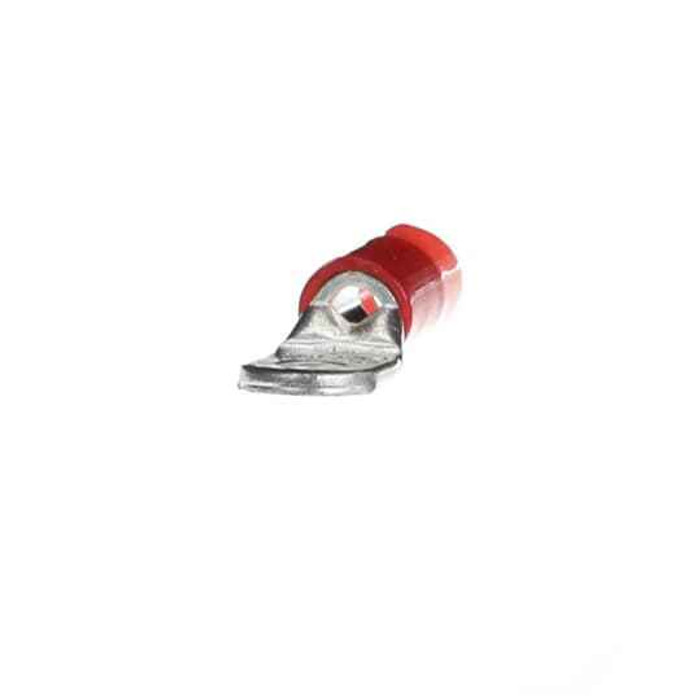

INS NYL RING TERM, 8AN, No10, RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 8AN
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RD10361 – Frequently Asked Questions
1) Is the Sta-Kon RD10361 rated for 600 volt circuits?
Yes, the nylon insulated ring terminal carries a 600 V rating, which covers standard commercial branch circuits, control panel wiring, and motor control work. It is also built under UL file E9809.
2) Is the barrel on this ring terminal copper or aluminum?
Copper. That matters because the RD10361 is intended for copper conductors, not aluminum, and a copper-only terminal on aluminum wire is a code problem and a heat problem. For aluminum feeders you need an AL/CU rated lug instead.
3) Is this terminal UL listed for inspected commercial work?
The Sta-Kon RD10361 is covered under UL file E9809, which is the reference an inspector or spec writer will want for a 600 V insulated ring terminal in panel and control wiring. Quote the file number along with the part number on submittals.
4) What does the red color on a Sta-Kon ring terminal mean?
Red is the insulation color code on this Sta-Kon terminal, and in the standard trade color code red marks the smallest common wire range, 22 to 16 AWG. It also tells you which die color on your crimp tool to use so you are not guessing at the nest.
5) Should I use a ring terminal or a spade terminal on a panel screw?
A ring terminal like the Sta-Kon RD10361 is the right call anywhere the connection is subject to vibration or where a loosening screw must not release the wire: the closed tongue cannot back off the stud. Spade or fork terminals come off without fully removing the screw, which is handy for service work on terminal strips you land and re-land often, but they are not the choice for motor terminals, ground studs, or anything that shakes.
6) Does the Sta-Kon RD10361 need a special crimp tool?
It needs a proper insulated-terminal crimper, not pliers. The nylon insulation sleeve is crimped along with the barrel, so the tool has to have a nest sized for the red color code range. A nicked or flattened sleeve from a general purpose plier is the usual cause of a failed pull test on these.
7) Where is the Sta-Kon RD10361 made?
Mexico. Buyers working to domestic-content or Buy American requirements on a federal or institutional job should factor that in before specifying it.
