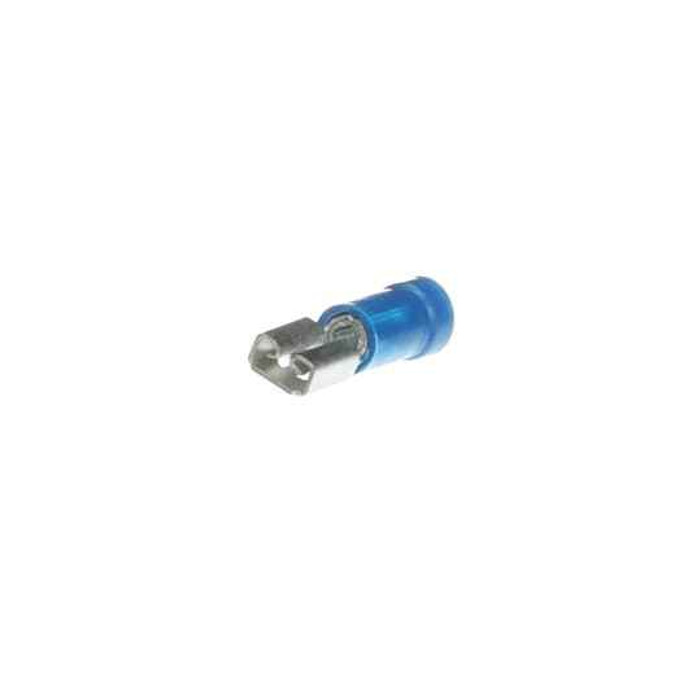

INS VIN FEM 187 DISC 16-14AWG BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Vinyl
- Product Subgroup:
- Disconnects
- Product Type:
- Vinyl Insulated Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Brass
Sta-Kon 14RBD-183 – Frequently Asked Questions
1) What wire size does the Sta-Kon 14RBD-183 blue female disconnect take?
The 14RBD-183 is sized for 16-14 AWG stranded wire, which is what the blue vinyl insulation color signals on crimp terminals. Pair it with a crimp tool die set for the blue (16-14 AWG) range so the barrel compresses correctly on the conductor.
2) What is the Sta-Kon 14RBD-183 terminal made of, and is the insulation heat resistant?
The contact body is brass, and the sleeve is vinyl. Brass gives you solid conductivity for control and appliance wiring. Vinyl is the standard general purpose insulation and is not a high temperature material, so for hot locations near motors or heating elements use a nylon-insulated or non-insulated terminal with heat shrink instead.
3) What part number should I order for the blue Sta-Kon .187 female disconnect, and where is it made?
Order Sta-Kon part number 14RBD-183. It is manufactured in the United States, which matters if your job carries a domestic sourcing requirement for electrical components.
4) Is the 14RBD-183 a fully insulated disconnect or just a sleeve over the barrel?
It is a vinyl insulated female disconnect, meaning the insulation covers the crimp barrel and the receptacle body, so the connection stays shrouded once it is pushed onto the tab. That matters in tight control panels and junction boxes where adjacent terminals could otherwise touch.
