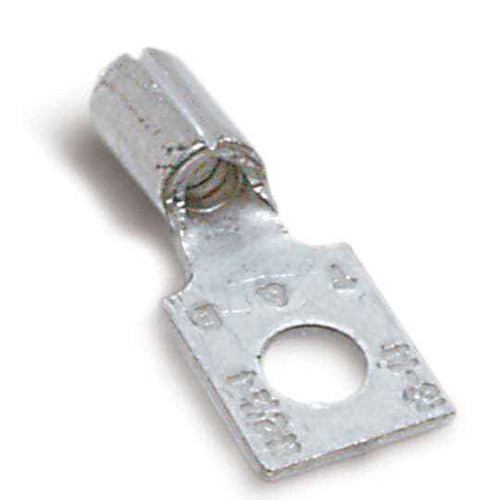

INS VIN RING TRM 18-14 No4 AWG BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RB1327 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RB1327 ring terminal take?
The RB1327 is sized for 18 to 14 AWG stranded copper conductors. The blue vinyl insulation is the standard color code for that 16-14 AWG range, so if you are terminating 16 or 14 gauge control or lighting wire this is the right barrel. For 22-16 AWG you want a red terminal instead, and for 12-10 AWG a yellow one.
2) Is the RB1327 terminal rated for 600 volt circuits?
Yes, 600 V. That covers normal commercial branch circuits, control panels, and motor control wiring at 120/208/240/480 V.
3) Is this Sta-Kon ring terminal UL recognized for panel inspection work?
It carries UL file E9809, which is what an inspector or a panel shop QC reviewer looks for on an insulated terminal going into a listed assembly.
4) Why pick a ring terminal instead of a fork or spade on a terminal block?
A ring is a closed barrel, so it cannot back off the stud if the screw loosens. That is why ring terminals get specified for grounds, battery and vibration-prone equipment. A fork terminal installs faster because you can slide it under a partly backed-out screw without removing it, which is why service techs prefer forks on panels they revisit. If the connection is safety critical or sees vibration, use the RB1327 ring.
5) Is the RB1327 barrel copper, and does that matter for aluminum wire?
The barrel is copper, which means it is intended for copper conductors only. Do not crimp aluminum conductors in it; aluminum needs a terminal marked AL or AL9CU with the proper inhibitor compound.
6) What is the exact part number for the blue No. 4 stud Sta-Kon ring terminal?
Sta-Kon RB1327. That is the manufacturer part number to quote: vinyl insulated ring tongue, 18-14 AWG, No. 4 stud, blue.
7) Is the Sta-Kon RB1327 made in the USA?
Country of origin is the United States, which matters if you are filling a government or institutional order with domestic content requirements.
