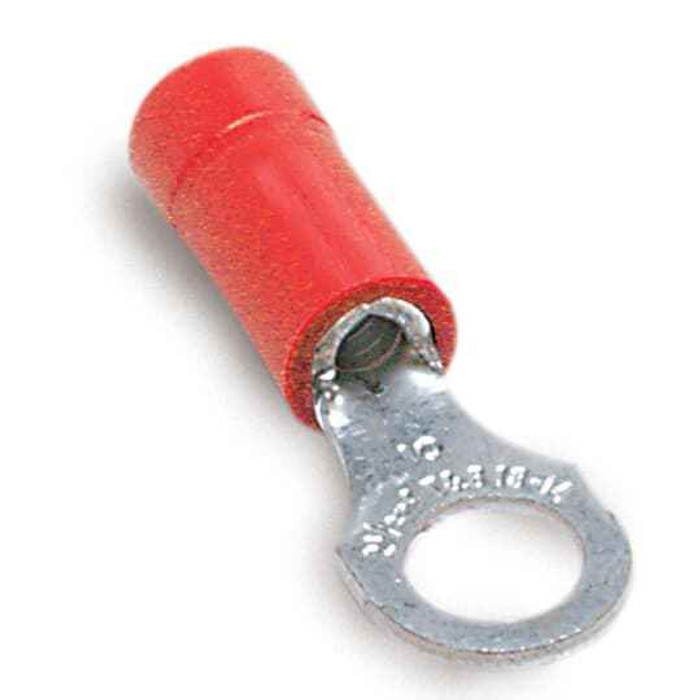

INS VINYL RNG TERM 22-16 5/16IN RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RA727 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RA727 ring terminal crimp onto?
The RA727 is sized for 22 to 16 AWG stranded copper conductor. Red insulation is the standard color code for that range, so if you are pulling 14 or 12 AWG you need the next size up (blue for 16-14, yellow for 12-10) rather than forcing it into this barrel.
2) What voltage is the Sta-Kon RA727 rated for, and can I use it in a 480V control panel?
It carries a 600 V rating, which covers 120/208, 277, and 480 V control and power circuits in a panel. The vinyl sleeve is the insulating element, so keep the crimp fully seated in the barrel with no exposed conductor past the sleeve.
3) Is the RA727 ring terminal UL listed?
It is covered under UL file E9809. For an institutional or government MRO spec that calls for listed wire connectors, that file number is the reference to put on the submittal.
4) Is the barrel on this ring terminal copper or aluminum?
Copper. That means it is for copper conductor only, not aluminum, and it takes a standard copper crimp die rather than an AL/CU rated compression tool. The vinyl sleeve over the barrel gives you strain relief at the wire entry.
5) Where is the Sta-Kon RA727 made?
Made in the United States. That matters on federally funded work and on jobs with Buy American or domestic-preference language in the specification.
6) Can I crimp the RA727 with regular pliers, or do I need an insulated terminal tool?
Use a crimp tool with an insulated-terminal nest matched to the red 22-16 range. Pliers deform the vinyl sleeve and leave an under-crimped barrel, which is the usual cause of a hot connection later. The red color band on most insulated crimpers corresponds to this 22-16 AWG size.
