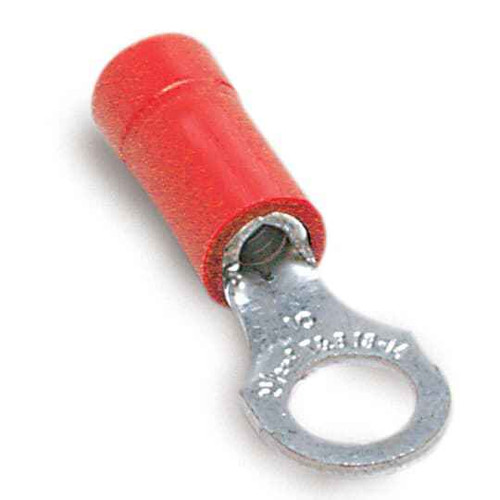

INS VINYL RNG TERM 22-16 3/8IN RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RA737 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RA737 ring terminal accept?
The RA737 is built for 22 to 16 AWG stranded copper conductors, which is the red insulation color code on Sta-Kon terminals. Anything heavier than 16 AWG will not seat in the barrel, and a conductor smaller than 22 AWG risks pulling out of the crimp.
2) Is this ring terminal rated for 600 volt control and branch circuit wiring?
Yes. The vinyl insulated Sta-Kon RA737 carries a 600 V rating and is UL recognized under file E9809, so it is suitable for typical 120/208/240/480 V control panel and motor connection work within that voltage.
3) What is the Sta-Kon RA737 barrel made of, and can I use it on aluminum conductors?
The terminal barrel is copper, so it is intended for copper conductors only. Crimping copper hardware onto aluminum wire creates a dissimilar metal joint that corrodes and loses contact pressure; for aluminum you need a terminal specifically marked AL or AL9CU.
4) Do I need a special crimper for the red 22-16 AWG Sta-Kon terminals?
Use the red die or nest on an insulated-terminal crimp tool. Sta-Kon insulated terminals are color coded by range, and red means the 22-16 AWG group, so the red station on the tool gives the correct barrel compression without cutting the vinyl insulation. Pliers or a bare-terminal die will crush the sleeve and give an unreliable joint.
5) Are Sta-Kon RA737 terminals made in the USA for jobs with domestic sourcing requirements?
Country of origin on the RA737 ring terminal is the United States, which is what government, transit, and other Buy American style procurement specs usually ask for on electrical components. The part is also UL recognized under file E9809 if the submittal needs a listing reference.
