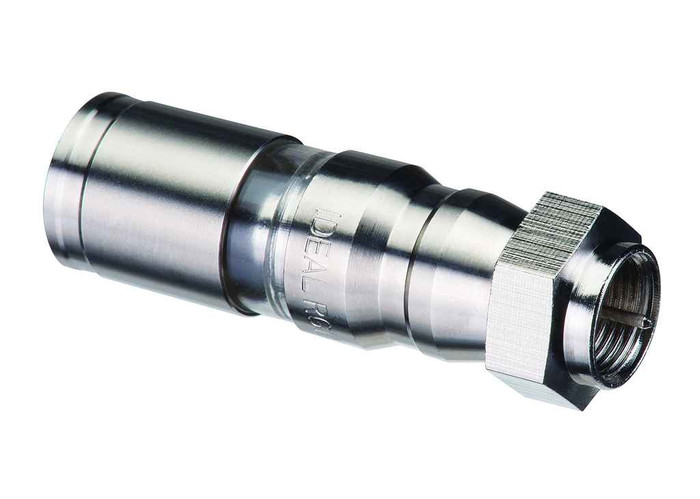

InSITE™ RG-11 Plenum F Compression Connector -10 pk
92-212 - spec sheet
Features
- Designed for use in cable and satellite TV trunk/feeder installations
- A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
- >40 pounds cable retention on all models
- 7/16” nut diameter with 3/8-32 thread
- Accepts RG-11 Plenum coax cables
- Fixed pin won’t come lose or pop out of the connector
- Compresses in 30-793 tool without tool adjustment or adapters
- Increased ranges of compatible cable jacket diameters – works with more cable types and cable manufacturers
- All brass, with nickel plated bodies
- Designed for optimal performance on 75Ω coaxial cables
- Lower cable insertion force – easier to push the connector on to the cable
- WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
- Features InSITE™ technology
92-212 - spec sheet
Manufacturer Resources
Product Specs
- Product Group:
- Sensors
- Deparetment:
- Electrical
- Product Subgroup:
- Occupancy Sensors
- Center Conductor Range:
- 18-14 AWG Solid (.062” - .066”)
- Connector Model:
- 11PLFIS
- Dielectric Diameter Range:
- .270” - .280”
- Frequency Range:
- 0 MHz to 3 GHz
- Outer Jacket Diameter Range:
- .340” - .356”
- Recommended Cable Prep Stripping Tool:
- N/A
- Recommended Compression Tool:
- 30-793 OmniSeal™ PRO XL
- Return Loss:
- >25dB up to 1 GHz
- parent sku:
- IDL-92-212
