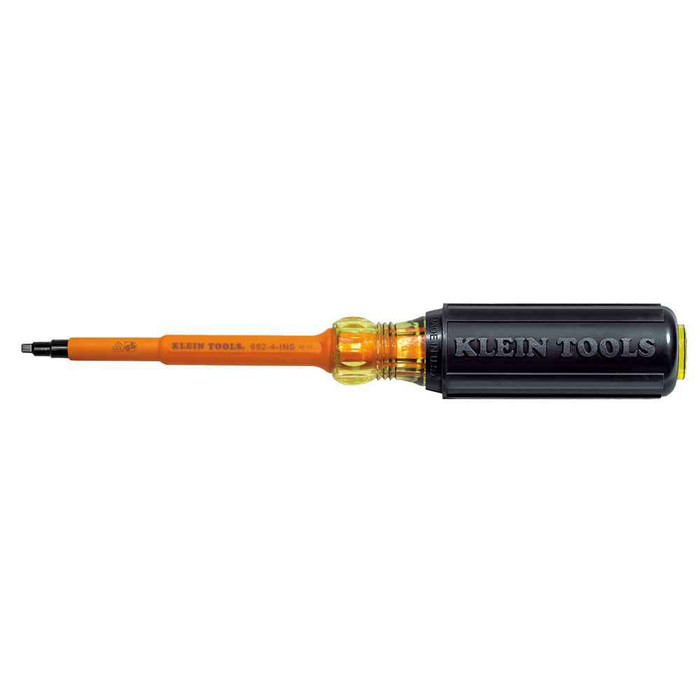

Klein Tools Insulated Square Drive Screwdriver #2 Tip 4-Inch Shank 1000V Rated Professional Tool
Professional 1000V rated insulated screwdriver with flame retardant dual-layer protection
Klein Tools delivers professional-grade electrical safety with this insulated square drive screwdriver featuring a #2 tip and 4-inch shank. Built with induction hardened steel construction and dual-layer insulation meeting ASTM F1505 and IEC 60900 standards, this 1000V rated tool provides reliable protection for electrical work. The Cushion-Grip� handle with high-dielectric plastic material ensures secure handling while the flame retardant and impact resistant design delivers durability in demanding applications.
Professional Features & Benefits
- 1000V Safety Rating: Meets ASTM F1505 and IEC 60900 standards for maximum electrical protection during live work applications
- Induction Hardened Steel Construction: Provides superior durability and long-lasting performance in professional electrical environments
- Dual-Layer Insulation: Flame retardant and impact resistant molded insulation delivers reliable protection against electrical hazards
- Cushion-Grip� Handle: High-dielectric plastic material with ergonomic design ensures greater torque transfer and enhanced comfort
- #2 Square Tip Design: Precision-engineered tip provides optimal engagement with square drive fasteners for secure operation
- 4-Inch Shank Length: Professional length specification allows access to recessed applications while maintaining control
- Made in USA Quality: Custom US-made steel tool construction ensures consistent performance and reliability
Technical Specifications
- Color Code: Red
- Department: Electrical
- Handle Color: Black
- Handle Material: High-Dielectric Plastic
- Insulated: Yes
- Item Depth: 8.3130 in
- Item Height: 1.0000 in
- Item Weight: 0.2000 lbs
- Item Width: 1.0000 in
- Magnetic: No
- Material: Induction Hardened Steel
- Overall Length: 8.313" (21.1 cm)
- Product Details: Recessed
- Product Group: Hand Tools
- Product Subgroup: Screwdrivers & Drivers
- Product Type: Recessed
- Shank Length: 4" (10.2 cm)
- Shank Type: Round
- Standard: IEC 60900 and ASTM F1505
- Tip Size: #2
- Tip Type: Square
- Weight: 3.2 oz (91 g)
Professional Applications
- Electrical Panel Work and Circuit Installation
- Commercial Electrical Maintenance
- Industrial Control System Service
- Residential Electrical Repairs
- Emergency Electrical Services
- Professional Electrical Contracting
- Maintenance and Facility Operations
Why Choose Klein Tools Quality?
Klein Tools maintains rigorous manufacturing standards with custom US-made steel construction and comprehensive safety certifications. The dual-layer insulation system with flame retardant properties and impact resistance ensures long-term reliability in professional electrical applications, while ASTM F1505 and IEC 60900 compliance provides confidence in critical safety performance.
Manufacturer Resources
Spec Sheet
Product Specs
- Color Code:
- Red
- Handle Color:
- Black
- Handle Material:
- High-Dielectric Plastic
- Insulated:
- Yes
- Item Depth:
- 8.3130 in
- Item Height:
- 1.0000 in
- Item Weight:
- 0.2000 lbs
- Item Width:
- 1.0000 in
- Magnetic:
- No
- Overall Length:
- 8.313" (21.1 cm)
- Shank Length:
- 4" (10.2 cm)
- Shank Type:
- Round
- Standards:
- IEC 60900 and ASTM F1505
- Tip Size:
- #2
- Tip Type:
- Square
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Screwdrivers & Drivers
- Product Type:
- Screwdriver
- Product Details:
- Recessed
- Product Material:
- Induction Hardened Steel
- Product Weight:
- 3.2 oz (91 g)
- Product Height:
- 1 in
- Product Depth:
- 8.313 in
- Product Width:
- 1 in
Klein Tools 662-4-INS – Frequently Asked Questions
1) Is the Klein 662-4-INS square drive screwdriver rated for live electrical work at 1000V?
The Klein Tools 662-4-INS is an insulated screwdriver built and tested to IEC 60900 and ASTM F1505, the two standards that govern 1000V rated insulated hand tools. The dual-layer molded insulation is flame retardant and impact resistant, and the Cushion-Grip handle is high-dielectric plastic. Inspect the insulation for nicks or gouges before each use, as those standards require.
2) Will a #2 square tip driver work on the Robertson screws in a panel or on receptacle terminals?
A #2 square (Robertson) tip is the standard size for the square-drive terminal screws found on most 15A and 20A devices and many panel lugs. The 662-4-INS carries a #2 square tip on a round shank. If your fasteners are #1 (smaller, common on light-duty devices) or #3, this driver will cam out or won't seat, and you need the matching tip size instead.
3) How deep can this insulated screwdriver reach into a recessed screw?
Shank length is 4 inches (10.2 cm) with an overall length of 8.313 inches (21.1 cm). On an insulated driver the insulation runs down the shank to near the tip, so the usable reach into a recessed or counterbored application is the shank length, not the overall length. For deep gear trays or recessed enclosure screws, a 4-inch shank is the working number to design around.
4) Will this Klein screwdriver hold the screw magnetically when working in a panel?
No. The 662-4-INS tip is non-magnetic, so it will not retain a loose screw for a one-handed start overhead or down inside a deep enclosure. If magnetic retention is what you need, pick a driver listed as magnetic. Insulated drivers are commonly non-magnetic, so check that line on any 1000V tool.
5) Is this the right tool to add to an electrician's 1000V insulated set, or do I need a full kit?
This is a single driver, one model, 662-4-INS, with a #2 square tip. It covers square drive fasteners only. A working insulated set for panel and control work typically also needs slotted and Phillips cabinet-tip drivers and insulated nut drivers in the same IEC 60900 / ASTM F1505 class. Buy this one to fill the square drive slot in a kit you already carry.
6) How do I tell this insulated Klein driver apart from a standard uninsulated one on the truck?
Look at the color: the insulation is coded red over a black Cushion-Grip handle, which is the visual tell for Klein's 1000V insulated line. The full part number is 662-4-INS, and the INS suffix marks it as the insulated version. A standard square drive driver without that coding is not rated for live work.
7) How durable is the shaft on this insulated square driver under real torque?
The blade is induction hardened steel, which is what keeps a #2 square tip from rounding over when you lean on a stubborn lug. Tool weight is 3.2 oz (91 g), so it rides easily in a pouch without adding bulk to a full insulated set.
