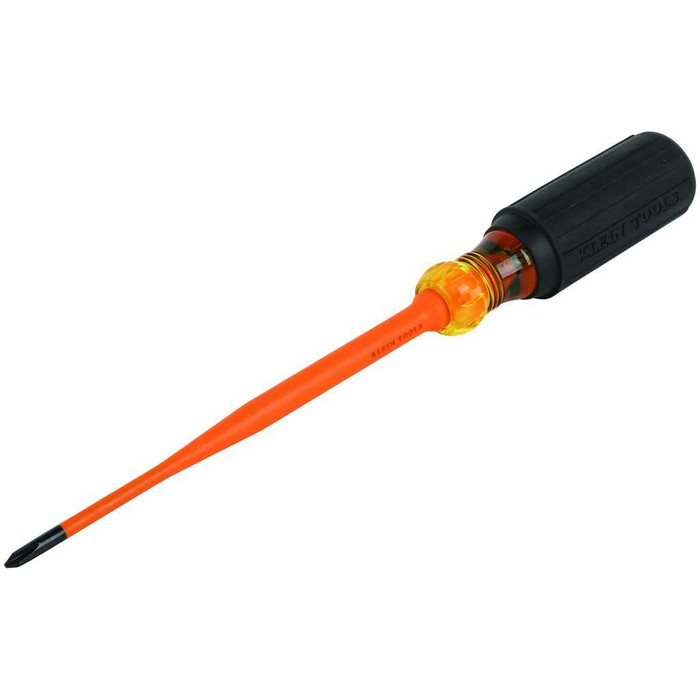

Klein Tools Slim-Tip 1000V Insulated Screwdriver, Phillips, 6-Inch

Klein Tools Slim-Tip 1000V Insulated Screwdriver, Phillips, 6-Inch

(No reviews yet) Write a Review

Model: 6956INS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Slim-Tip 1000V Insulated Screwdriver, #1 Phillips, 6-Inch

  • Warnings

    • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
    • Whenever possible, always de-energize lines and equipment prior to working on or around them.
    • Keep tool clean, dry and free of any surface contaminants.
    • Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
    • Always inspect your tools before use.

  • Features

    • Meets or exceeds ASTM F1505-16 and IEC 60900 -2018
    • Tip-Ident® quickly identifies the tip type and orientation
    • Cushion-Grip™ handles for greater torque and comfort
    • Slim Profile Tip
    • 1000V rated layer of orange impact and flame-resistant insulation protects from electrical shock
    • Made in USA
    • 6-Inch round shank, #1 Phillips tip, insulated screwdriver with a slim tip that allows for greater access into tight spaces
    • Insulated blade is flush with the tip to help reduce nicking the insulation and gain access into tight terminal blocks


6956INS - spec sheet

Product Specs

Product Group:
Hand Tools
Product Weight:
7.5 oz (213 g)
Handle Material:
Rubber
Item Width:
1.2500 in
Overall Length:
10.31" (26.2 cm)
Handle Color:
Black
Handle Diameter:
1.25" (3.2 cm)
Shank Length:
6" (15.2 cm)
Overall Width:
1.25" (3.2 cm)
Item Weight:
0.3000 lbs
Shank Type:
Round
Magnetic:
No
Product Subgroup:
Screwdrivers & Drivers
Overall Height:
1.25" (3.2 cm)
Accessories:
MAG2
Department:
Electrical
Product Type:
Slim-Tip Insulated Screwdriver
Standards:
ASTM F-1505-16, IEC 60900:2018
Item Depth:
8.7500 in
Product Details:
Slim-Tip Insulated Screwdriver
Color Code:
Orange
Handle Length:
4.31" (10.9 cm)
Product Material:
Steel, Plastic
Tip Type:
Phillips
Item Height:
1.2500 in
Insulated:
Yes

Klein Tools 6956INS – Frequently Asked Questions

1) Is the Klein slim-tip Phillips insulated screwdriver rated for live electrical work?
It carries a 1000V rated orange insulation layer and meets or exceeds ASTM F-1505-16 and IEC 60900:2018, the two standards electricians look for on insulated hand tools. Klein still states the safe practice: de-energize lines and equipment where possible, keep the tool clean and dry, and inspect it before every use. Never touch the uninsulated portion or a conductive object near an energized source.
2) Will an insulated screwdriver fit into a tight terminal block, or is the insulation too bulky?
That is the point of the slim-tip design. The insulated blade runs flush with the tip instead of stepping down short of it, so it drops into tight terminal blocks and crowded panels where a standard insulated driver's shoulder would bind. It also reduces nicking the insulation on the way in.
3) Which Phillips tip sizes does the Klein slim-tip 1000V insulated screwdriver come in?
Two Phillips sizes: #1 (part 6956INS) and #2 (part 6936INS). Both are the 6-inch round shank slim-tip version, so the only decision is the tip you need for the terminal screws you are driving.
4) Is the tip magnetic for holding screws in a panel?
No, the tip is not magnetized. If you want magnetic hold for retaining screws overhead or deep in an enclosure, the MAG2 magnetizer is the listed accessory for these drivers.
5) Is this Klein insulated screwdriver made in the USA for a government or institutional spec?
Yes, the slim-tip 1000V insulated screwdriver is made in the USA, and it is marked with the international 1000-volt rating symbol that safety programs require on tools that may contact energized sources. It meets or exceeds ASTM F-1505-16 and IEC 60900:2018.
6) How do I tell which insulated driver I grabbed without looking at the tip?
The handle uses Klein's Tip-Ident marking, which shows the tip type and its orientation on the end of the grip, so you can identify a Phillips from a slotted or square driver in a pouch and know how the blade is oriented before it reaches the screw. The handle is black rubber Cushion-Grip over the orange 1000V insulation.
7) Is the shank round or hex, and does that matter for an insulated driver?
Round shank. There are no wrench flats, so you cannot put a wrench on it for extra torque, which is correct for an insulated tool anyway. Torque comes from the cushioned handle instead. The build is steel with plastic and rubber handle components.
8) How heavy is this insulated screwdriver for all-day pouch carry?
7.5 oz (213 g). Light enough to live in a pouch, with a 1-1/4 inch cushioned grip that gives you leverage for higher torque on tight terminal screws without a hot spot in your palm.
