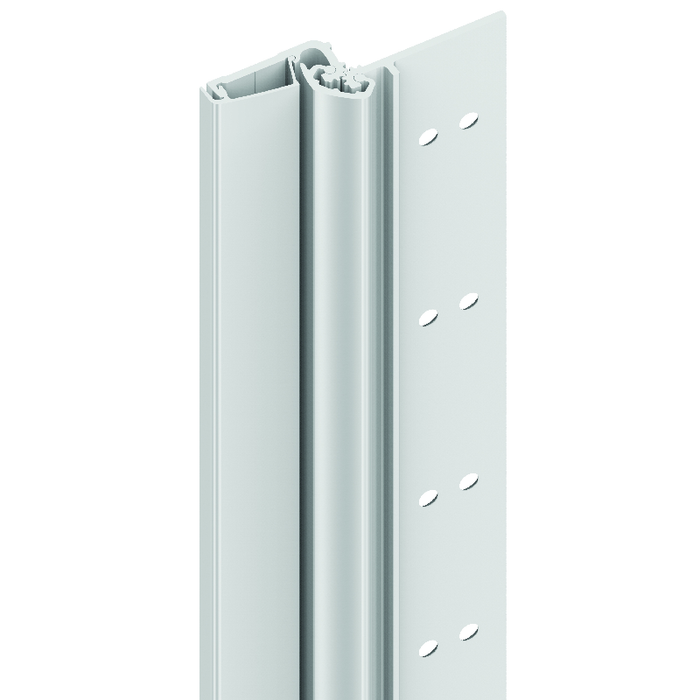

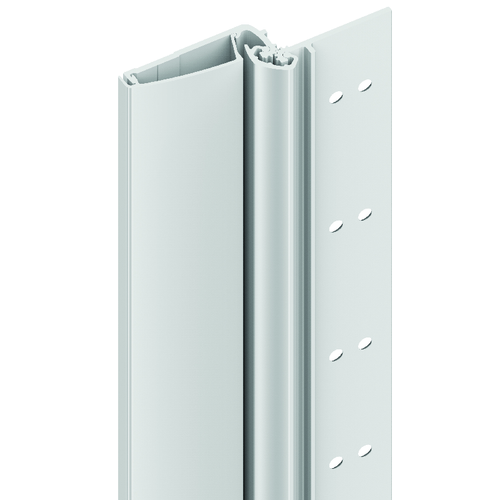

Ives 053XY Half Surface Continuous Geared Hinge with XY Adjustability for 450 lb Doors

(No reviews yet) Write a Review

Model: IVE-053XY-83-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$562.30
$325.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 053XY Half Surface Continuous Geared Hinge with XY Adjustability for 450 lb Doors

Professional Half Surface Continuous Hinge for Retrofit and New Construction

The Ives 053XY Half Surface Continuous Geared Hinge delivers professional-grade performance for doors weighing up to 450 pounds without reinforcing or 600 pounds with reinforcing. Featuring a patented center-loaded, interlocking bearing design with XY (lateral and vertical) adjustability, this hinge provides smooth operation and extended service life. The frame leaf depth of 1-9/16" and extended frame guidance lip make it ideal for retrofit applications and gasketing/weatherstripping installations.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Supports doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing for demanding commercial applications.
  • XY Adjustability: Patented lateral and vertical adjustment capability while hanging the door ensures precise alignment and simplified installation.
  • Retrofit-Optimized Design: Extended frame guidance lip covers existing heavy-weight architectural hinge preparations for seamless retrofit applications.
  • Patented Bearing System: Center-loaded, interlocking bearing design provides smooth operation and extended hinge life in high-traffic environments.
  • Safety Enhancement: Eliminates pinch points between cover and door while preventing finger entrapment through continuous design.
  • Flexible Installation: Non-handed design accommodates custom cut lengths with 1/8" door inset for versatile applications.
  • ANSI Certified Performance: Meets ANSI 156.26 Grade 1 standards and UL10C 90-minute fire rating for code compliance.
  • Comprehensive Mounting Options: Standard 1/4-20 x 3/4" Phillips head machine screws and multiple optional security fastener configurations available.

Technical Specifications

  • ANSI/BHMA: ANSI 156.26
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Weight: 450
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: 053XY
  • Product Size: 48"
  • Product Subgroup: Continuous Hinges
  • Product Type: Continuous Geared Hinges
  • Subcategory: Hinges and Pivots

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Ives Quality?

Ives continuous geared hinges are engineered for professional-grade reliability with patented center-loaded, interlocking bearing design rated for doors up to 450 pounds. ANSI 156.26 Grade 1 certification and UL10C 90-minute fire rating ensure code compliance and safety. Designed to distribute door weight along the entire frame length, eliminating door sag and reducing maintenance requirements for demanding commercial applications where dependable performance is essential.

Product Specs

Product Group:
Door Hinges and Pivots
Subcategory:
Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Continuous Geared Hinges
ANSI/BHMA:
ANSI 156.26
Door Weight:
450
Commercial/Residential:
Commercial
Product Model:
053XY
Door Hand Direction:
Non-Handed
Product Size:
48"
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Ives IVE-053XY-83-628 – Frequently Asked Questions

1) Will the Ives 053XY continuous hinge hold a 450 lb door?
Yes. The 053XY carries doors up to 450 pounds with no frame reinforcing, and up to 600 pounds when the frame is reinforced. The geared continuous design spreads the load down the full height of the opening rather than into three or four hinge points, which is why it holds weight that would sag a butt-hinged door over time.
2) Do I have to order a left hand or right hand version of the Ives 053XY hinge?
No handing to specify. The 053XY is non-handed, so one part number covers left hand, right hand, and reverse openings. That matters if you are standardizing a building: you stock one hinge per length and finish instead of mirrored pairs.
3) Can the Ives 053XY hinge cover the old hinge cutouts when I replace butt hinges on an existing frame?
That is what the 053XY is built for. It has an extended frame guidance lip that covers existing heavy weight architectural hinge preparations, so the old mortises in the frame do not have to be filled or welded before the continuous hinge goes on. The frame leaf depth is 1-9/16 inches.
4) Is a half surface continuous hinge the right choice, or do I need a full surface or full mortise one?
Half surface, like the 053XY, means the frame leaf mortises into the frame while the door leaf surface mounts to the face of the door. That is the configuration to use when you have a hollow metal frame already prepped for hinges but do not want to mortise the door, which is the usual retrofit case on a hollow metal or wood door in an existing frame. Full surface mounts to the face of both frame and door and is the pick when neither can be mortised or the frame is channel iron. Full mortise conceals into both, which needs both the door and frame machined and is normally a new construction detail.
5) What does the XY adjustment on the Ives 053XY hinge actually do on the job?
XY means lateral and vertical adjustment, and it can be made while the door is hanging. On an out of square frame, or an old opening that has settled, you set the door in place and then dial the gap and the height in rather than pulling the door back down and reshimming. On a retrofit where the frame was never true to begin with, this is usually the difference between a one trip install and a callback.
6) Does the Ives 053XY hinge come with screws, or do I need to order fasteners separately?
Standard mounting hardware is included: 1/4-20 x 3/4 inch Phillips head machine screws. If the opening is in a school, transit facility, detention area, or anywhere else exposed to tampering, optional security fastener configurations are available and have to be specified when you order, since the Phillips screws are what ships by default.
7) Will a continuous hinge work on a door with weatherstripping or gasketing?
The 053XY suits gasketed and weatherstripped openings. Its 1-9/16 inch frame leaf depth and extended frame guidance lip give clearance for the gasket to seat rather than getting crushed at the hinge line, which is the usual failure on an exterior or smoke gasketed door hung on butt hinges.
8) Is a continuous geared hinge safer for a school or daycare door than regular hinges?
On the hinge side, yes. The 053XY runs the full height of the door, so there is no open gap between door and frame at the pivot for a child's fingers to enter, and the cover to door interface is built without a pinch point. That is why continuous geared hinges get specified in educational facilities and healthcare settings where finger entrapment is a real liability.
9) My door is 1/8 inch off the frame. Does the Ives 053XY need a specific door inset?
The 053XY is set up for a 1/8 inch door inset. Confirm the existing gap between the door edge and the frame rabbet matches that before you order, because on a half surface hinge the door leaf lands on the door face and the inset dimension is what sets the gear line position.
10) Which Ives 053XY length do I order for a 7 foot commercial door?
A standard 7 foot (84 inch) door normally takes the 83 inch hinge, since a continuous hinge runs just short of the full door height rather than the exact height. The 85 inch is there for openings that run slightly taller. Measure the actual door height before ordering rather than assuming the nominal size, and if it falls between offered lengths the hinge can be cut to a custom length.
11) Will a continuous hinge stop my heavy door from sagging?
That is the main reason it gets specified. A butt hinged door puts all of its weight into three or four points, and those points elongate and drop the door over years of traffic. The 053XY distributes the load along the entire frame length, which is what keeps the top corner from dragging on the strike jamb and cuts the recurring adjustment calls on a high traffic opening.
How fast can I get the Ives IVE-053XY-83-628 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
