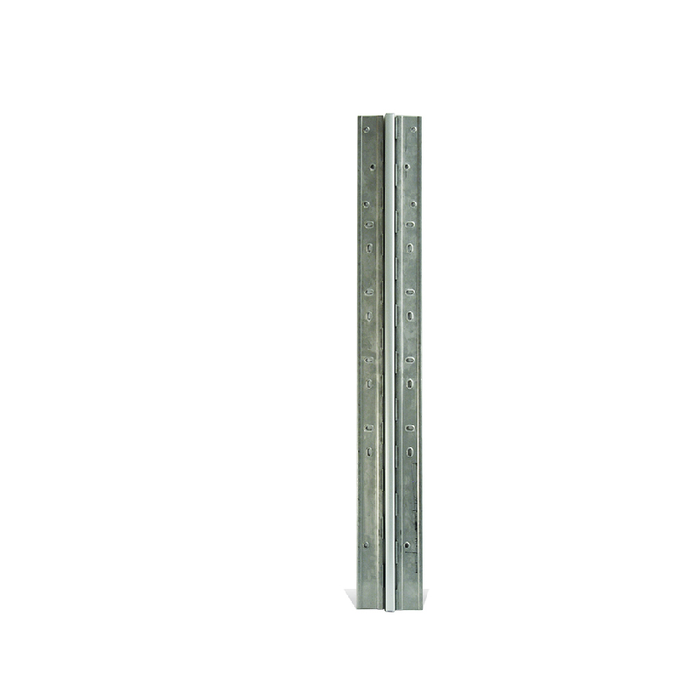

Ives 700CS Stainless Steel Full Mortise Pin and Barrel Continuous Hinge with Decorative Cover

(No reviews yet) Write a Review

Model: IVE-700CS-83-713
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,118.00
$648.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 700CS Stainless Steel Full Mortise Pin and Barrel Continuous Hinge with Decorative Cover

Heavy-Duty Continuous Hinge with Patented Decorative Cover Design

The Ives 700CS is a premium stainless steel full mortise pin and barrel continuous hinge featuring a patented decorative cover that protects the hinge knuckle while creating a cleaner, more professional appearance. Designed for doors up to 300 pounds without reinforcing and 600 pounds with reinforcing, this continuous hinge accommodates doors up to 48" maximum width with 1/16" door inset. The patented medical-grade nylon winged bearings and XY adjustability feature ensure superior performance and precise door alignment during installation.

Professional Features & Benefits

  • Door Weight Capacity: Supports doors up to 300 pounds without reinforcing or 600 pounds with reinforcing for versatile commercial applications.
  • Maximum Door Width: Accommodates doors up to 48" width with 1/16" door inset for standard commercial door configurations.
  • Patented Decorative Cover: Protects hinge knuckle and creates a cleaner, neater appearance while maintaining full functionality.
  • XY Adjustability Feature: Allows for better door alignment during installation, ensuring proper fit and operation.
  • Medical-Grade Bearings: Patented nylon winged bearings provide self-lubrication and long-term reliability in high-traffic applications.
  • Premium Construction: Stainless steel construction with UL 10C (3-hour) fire rating and ANSI 156.26 Grade 1 certification for demanding commercial use.
  • Versatile Installation: Non-handed design works with both bevel and square edge doors for flexible application options.
  • Standard Lengths Available: 83", 85", 95", and 120" standard lengths with custom cut options for specific requirements.

Technical Specifications

  • ANSI/BHMA: ANSI 156.26
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Weight: 300
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: 700CS
  • Product Size: 48"
  • Product Subgroup: Continuous Hinges
  • Product Substrate: Stainless Steel
  • Product Type: Pin and Barrel Continuous Hinges
  • Subcategory: Hinges and Pivots

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Ives Quality?

Ives continuous hinges deliver professional-grade reliability with stainless steel construction and patented medical-grade nylon winged bearings tested to UL 10C (3-hour) fire rating standards. ANSI 156.26 Grade 1 certification and limited lifetime warranty provide added confidence for demanding commercial applications. Engineered for high-use and high-traffic doors where dependable performance and aesthetic appeal are essential.

Product Specs

Subcategory:
Hinges and Pivots
Product Group:
Door Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Pin and Barrel Continuous Hinges
ANSI/BHMA:
ANSI 156.26
Door Weight:
300
Commercial/Residential:
Commercial
Product Model:
700CS
Door Hand Direction:
Non-Handed
Product Size:
48"
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

Ives IVE-700CS-83-713 – Frequently Asked Questions

1) Will the Ives 700CS continuous hinge hold a heavy solid core or lead-lined door?
The 700CS is rated for doors up to 300 pounds with no frame reinforcing, and up to 600 pounds when the frame is reinforced. So a heavy solid core leaf is fine as-is; once you get into lead-lined or heavy mineral core doors above 300 pounds, you need the reinforcing in place before the hinge carries the rating.
2) Do I need to order the Ives 700CS left hand or right hand?
Handing does not apply. The 700CS is non-handed and works on both bevel edge and square edge doors, so one part number covers either swing. That is one of the practical reasons continuous hinges get specified on retrofits, you do not have to survey every opening for hand before you order.
3) Is the Ives 700CS hinge fire rated for a 3 hour opening?
Yes, the 700CS carries a UL 10C 3-hour fire rating and is certified to ANSI 156.26 Grade 1. That combination is what a stair door, corridor, or shaft opening in a healthcare or education facility typically calls for on the drawing.
4) Does the Ives 700CS mortise into the door or mount on the surface?
Full mortise. The 700CS goes into a prepped edge on the door and frame, so the hinge sits concealed in the gap when the door is closed rather than screwed to the face. If your existing opening is not prepped for a mortise hinge and you cannot rout it, a full surface hinge like the Pemko DFS83HD1 is the mounting style to look at instead.
5) Will the Ives 700CS fix a door that is sagging and dragging on the threshold?
That is the usual reason to move off butt hinges. Because the 700CS runs the full height of the leaf, the door weight is carried along the entire edge rather than concentrated at three knuckles, which is what causes the screw pull and the drag at the strike. It also has an XY adjustability feature, so the leaf can be aligned in two directions during install rather than shimmed. The nylon winged bearings are self-lubricating, so there is no periodic oiling on a high-traffic opening.
6) What is the closest Grade 1 full mortise continuous hinge alternative to the Ives 700CS?
The Pemko FM Series is a full mortise continuous geared hinge with a PemKonnect modular option, and the Pemko PemKonnect CFM/DFM series carries a Grade 1 rating. The Ives 700CS is a full mortise pin and barrel continuous hinge in stainless steel, non-handed, ANSI 156.26 Grade 1, so both sit in the same full mortise Grade 1 territory. The difference is the hinge mechanism: the 700CS uses a pin and barrel design with a decorative cover over the knuckle, while the Pemko FM and CFM/DFM units are geared hinges.
7) Which continuous hinge should I use when the door edge cannot be mortised?
The Pemko DFS83HD1 is a PemKonnect modular full surface heavy duty geared continuous hinge, 83 inches, dark bronze aluminum, Grade 1, prepped for 1-3/4 inch doors. Full surface means it mounts to the face of the door and frame rather than into the edge, so it suits an opening where mortising is not an option. The Ives 700CS is a full mortise hinge and requires the door and frame to be prepared for it.
8) Is the Pemko CFM83-HD3 an equivalent swap for the Ives 700CS on a fire rated opening?
They are not equal on the fire question. The Pemko CFM83-HD3 is an 83 inch heavy duty full mortise continuous geared hinge rated Grade 3, and it requires firepins for 3-hour fire rated doors. The Ives 700CS is ANSI 156.26 Grade 1 and carries a UL 10C 3-hour fire rating as supplied. If the drawing calls for Grade 1 on a 3-hour opening, the CFM83-HD3 is not a like-for-like substitute.
9) Should I use a pin and barrel continuous hinge or a geared continuous hinge?
Both run the full height of the door and spread load along the whole edge instead of at three or four points, which is why they are specified where butt hinges keep sagging. The 700CS is the pin and barrel type: a knuckle-and-pin arrangement running on nylon winged bearings, with a decorative cover over the knuckle for a cleaner look on a visible opening. A geared hinge like the Pemko FM Series or the PemKonnect CFM/DFM instead meshes two gear leaves under a cap. If appearance on an exposed hinge edge matters, the covered barrel is the reason to pick this one.
10) Can I get the Ives 700CS in a bronze or black finish to match the rest of my openings?
Nine finishes, and every one of them is offered in all four lengths: 441 satin stainless anodized, 600 primed for painting, 628 clear anodized aluminum, 688 satin brass anodized, 709 satin bronze anodized, 710 dark bronze anodized, 711 black anodized, 712 bright chrome anodized and 713 satin chrome anodized. For a building where the hinge cover has to disappear into a painted frame, the 600 primed option takes paint directly.
11) What is a lighter duty continuous hinge to consider instead of the Ives 700CS?
The Pemko CFM83-HD3 is a Grade 3 heavy duty full mortise continuous geared hinge in an 83 inch length. Grade 3 is a lower ANSI duty classification than the Grade 1 the Ives 700CS holds under ANSI 156.26, so the CFM83-HD3 fits openings where the specification does not demand Grade 1. The 700CS is built for doors to 300 pounds without reinforcing and 600 pounds with reinforcing.
12) I need an 83 inch or 95 inch continuous hinge - which products cover both lengths?
The Pemko CFM/DFM PemKonnect series is offered with 83 inch and 95 inch length options and is Grade 1. The Ives 700CS is stocked in 83 inch, 85 inch, 95 inch and 120 inch lengths across finishes including 628 clear anodized aluminum, 710 dark bronze anodized and 711 black anodized, with custom cut lengths available. Both cover the two common standard door heights.
13) Do the Pemko geared continuous hinges and the Ives 700CS look the same on the door edge?
No. The Pemko CFM/DFM, FM Series and CFM83-HD3 are continuous geared hinges, which present a gear channel along the door edge. The Ives 700CS is a pin and barrel continuous hinge and carries a patented decorative cover that conceals the knuckle for a cleaner appearance, available in anodized finishes including 441 satin stainless, 688 satin brass, 709 satin bronze, 712 bright chrome and 713 satin chrome, plus 600 primed for painting. If the appearance of the hinge matters on a visible opening, the two designs are not interchangeable visually.
14) Is the Ives 700CS stainless steel or aluminum?
Stainless steel is the substrate on the 700CS. Several of the finish options are anodized coatings, which is a finishing process on the exterior, but the hinge body itself is stainless. That matters on exterior entrances, pool and locker corridors, and kitchen or wash-down areas where a plated steel hinge corrodes out.
15) Can I standardize a facility on one continuous hinge across mortised and non-mortised openings?
Not with a single model. The Ives 700CS is a full mortise stainless steel pin and barrel hinge for commercial use, non-handed so one part covers both door hands. For openings that take a surface mounted hinge instead, the Pemko DFS83HD1 is a Grade 1 full surface heavy duty geared hinge in 83 inch dark bronze aluminum for 1-3/4 inch doors. A facility standard usually pairs a full mortise model with a full surface model rather than forcing one across both conditions.
