8400 PROTECTION PLATE SPECIFICATION
- All plates, metal and plastic, come standard with four beveled edges and
countersunk mounting holes (B-CS); - Protection plates must be ordered in 1⁄2" increments. Available in other sizes,
consult customer service; - Standard mounting package, 16 per pack − #6 x 5⁄8 Oval head screws;
- Certifications: Meets ANSI/BHMA A156.6 for J301; UL protection plates certified to UL10C.

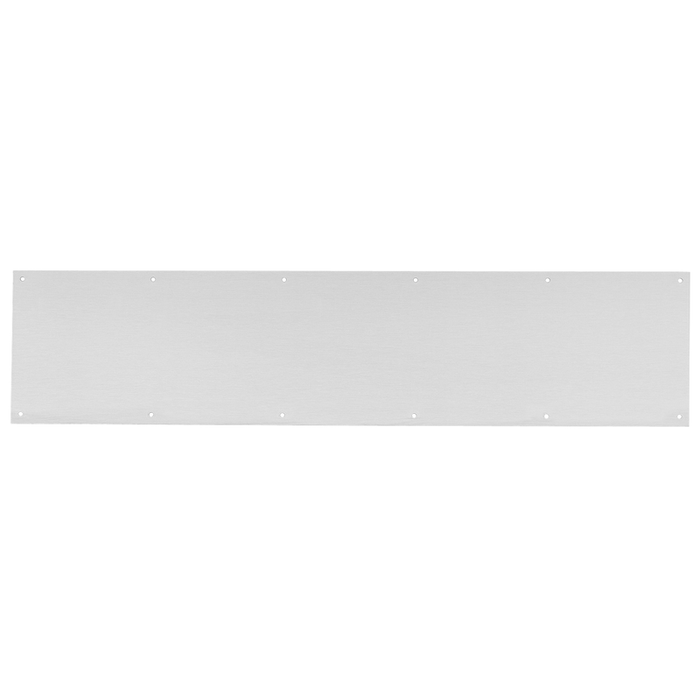

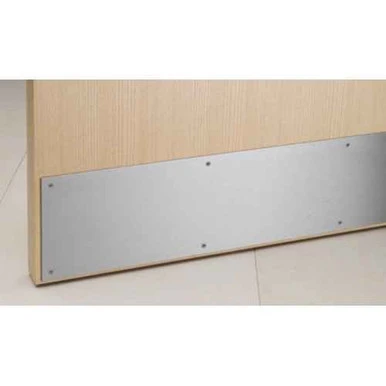

8400 PROTECTION PLATE OVERVIEW
Ives offers a wide selection of protection plates, including mop plates, kick plates, stretcher plates and armor plates. They are designed for superior performance in residential, commercial and UL-specified applications. The plates are the choice solution to ensure that the door it protects holds up, ultimately minimizing labor and upkeep costs.
FEATURES & BENEFITS
Aesthetics
- Available in aluminum, brass and stainless steel substrates
- Variety of standard finishes available to match pull options
- All plates come standard with four beveled edges and countersunk mounting holes
- Offered in different widths and heights, as well as custom orders
Reliability
- Long-lasting plates for interior and exterior applications
- Meets ANSI A156.06, Grade 1
- Mounting hardware exceeds industry standards
- All stainless steel plates come standard in 300 series
DESIGNS & FINISHES
Designs
- Available in various thicknesses and sizes of brass, stainless steel or aluminum substrates
- Offerings include commercial, residential and UL-compliant models
- All plates, metal and plastic, come standard with four beveled edges and countersunk mounting holes
Finishes
- See individual models in the Ives full line catalog for specific finishes
- Custom finishes are available as engineering specials; consult Customer Service for orders
- Plastic substrate covers come in black and clear
AVAILABLE OPTIONS
A variety of mounting options are available that exceed industry standards, including:- Standard mounting holes, no mounting holes with adhesive, self-drilling/self-tapping screws and security screws;
- Gasket tape kit tape is available and recommended when using a brass plate on a metal door to reduce tarnishing from electrolytic oxidation; one tape pack will cover the perimeters of an 8" x 34" kick plate.
Manufacturer Resources
Product Specs
- Series:
- 8400
- Category:
- Door Trim and Accessories
- Product Group:
- Door Trim and Accessories
- Model:
- 8400
- Subcategory:
- Pulls and Push Plates
- Product Subgroup:
- Door Armor and Protection Plates
- Product Type:
- Door Protection and Kick Plates
- ANSI/BHMA:
- Meets ANSI/BHMA A156.6 for J301
- Commercial/Residential:
- Commercial
