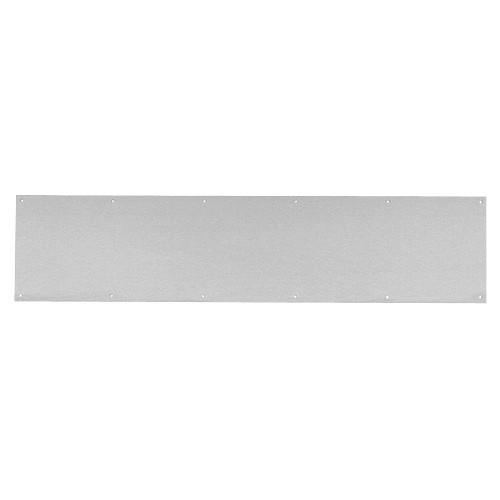

Ives 8400 Series Stainless Steel Kick Plate with Four Beveled Edges - Satin Nickel Finish

Ives 8400 Series Stainless Steel Kick Plate with Four Beveled Edges - Satin Nickel Finish

(No reviews yet) Write a Review

Model: 8400 US15 10X35 B-CS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$361.80
$280.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 8400 Series Stainless Steel Kick Plate with Four Beveled Edges - Satin Nickel Finish

Professional Door Protection Solution

The Ives 8400 Series kick plate delivers superior door protection with stainless steel construction and four beveled edges for commercial applications. This protection plate features countersunk mounting holes and meets ANSI/BHMA A156.6 for J301 standards. Available in 1/2" increments for precise sizing, the 8400 series is designed for both interior and exterior applications with Grade 1 reliability.

Professional Features & Benefits

  • Premium Stainless Steel Construction: 300 series stainless steel substrate provides exceptional durability and corrosion resistance for long-lasting performance.
  • Four Beveled Edges Design: Standard beveled edges on all four sides create a professional appearance while reducing sharp corners for safety.
  • Countersunk Mounting Holes: Pre-drilled countersunk holes ensure flush screw installation for a clean, professional appearance.
  • ANSI/BHMA Grade 1 Compliance: Meets ANSI/BHMA A156.6 for J301 standards ensuring commercial-grade performance and reliability.
  • UL Fire Rating Certification: UL protection plates certified to UL10C for fire-rated door applications.
  • Flexible Sizing Options: Available in 1/2" increments to accommodate precise door dimensions and custom requirements.
  • Standard Mounting Package: Includes 16 per pack #6 x 5/8 oval head screws that exceed industry standards for secure installation.
  • Interior and Exterior Applications: Engineered for superior performance in both residential and commercial environments with weather resistance.

Technical Specifications

  • ANSI/BHMA: Meets ANSI/BHMA A156.6 for J301
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: 8400
  • Product Subgroup: Door Armor and Protection Plates
  • Product Type: Door Protection and Kick Plates
  • Series: 8400
  • Subcategory: Kick Plates

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Ives Quality?

Ives 8400 Series protection plates deliver professional-grade reliability with 300 series stainless steel construction and Grade 1 ANSI/BHMA certification. The mounting hardware exceeds industry standards and UL10C certification ensures fire-rated door compatibility. Engineered for demanding commercial applications where dependable door protection and aesthetic appeal are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Series:
8400
Product Group:
Door Trim and Accessories
Subcategory:
Kick Plates
Product Subgroup:
Door Armor and Protection Plates
Product Type:
Door Protection and Kick Plates
ANSI/BHMA:
Meets ANSI/BHMA A156.6 for J301
Commercial/Residential:
Commercial
Product Model:
8400
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Ives 8400 US15 10X35 B-CS – Frequently Asked Questions

1) Can I put a kick plate on a fire rated door without voiding the label?
The Ives 8400 protection plates are certified to UL10C, which is the standard for fire door assemblies, so they can be applied to a labeled opening. Keep in mind the usual field rule on labeled doors: a plate applied above 16 inches from the bottom of the door needs additional listing consideration, so a 10 inch plate mounted at the bottom rail is the straightforward case.
2) Does the Ives 8400 kick plate meet Grade 1 commercial spec for a school or hospital door?
It meets ANSI/BHMA A156.6 for J301, which is the armor, kick and mop plate product standard, and it is a commercial rated plate rather than a residential one. J301 is the designation a spec writer puts on a drawing for a protection plate, so it answers the submittal directly for institutional work.
3) What is the Hager equivalent of the Ives 8400 stainless steel kick plate?
The Hager 190S is the closest peer. Both are door protection plates in satin stainless steel with four beveled edges: the Ives 8400 is a stainless steel kick plate with four beveled edges, and the Hager 190S is a kick plate with a satin stainless steel finish and 4 beveled edges. The Ives 8400 carries an ANSI/BHMA A156.6 J301 designation and is specified for commercial use, so on a job where the submittal calls out J301 by name, the 8400 is the one that answers the callout directly.
4) Do I need to buy screws separately for an Ives 8400 kick plate?
No. Mounting hardware ships with the plate: 16 #6 x 5/8 oval head screws per pack. The plate comes with countersunk holes already drilled, so the screw heads sit flush against the face. On a hollow metal door you will want to pilot drill; on a wood door the screws drive directly.
5) Will a stainless kick plate hold up on an exterior door that gets weather?
The 8400 uses a 300 series stainless steel substrate, which is the corrosion resistant grade used for exterior and washdown openings, and the plate is rated for both interior and exterior use. That is the reason to pick stainless over a plated or anodized plate on a loading dock, a courtyard door, or anywhere it gets hosed down.
6) Can I mix Ives 8400 and Hager 190S kick plates on the same building?
Visually they are close: both are satin stainless steel plates with four beveled edges, so on adjacent doors the edge treatment and finish family read the same. The Ives 8400 is a stainless steel plate with four beveled edges and countersunk mounting holes; the Hager 190S is described as a kick plate with a satin stainless steel finish and 4 beveled edges. Where they differ for a property manager standardizing a fleet is the spec trail - the 8400 is tied to ANSI/BHMA A156.6 J301 and comes with 16 #6 x 5/8 oval head screws per pack, so a maintenance crew ordering replacements gets the same screw pack every time. If the doors are in one sightline, most buyers pick one series and hold it.
7) I need a kick plate sized to an odd door width - does the Hager 190S or the Ives 8400 handle that?
The Ives 8400 is the one built around odd sizing: it is offered in 1/2 inch increments so the plate can be cut to a precise door dimension rather than rounding to the nearest stock width. The Hager 190S is a kick plate with a satin stainless steel finish and four beveled edges in the 190 Series. A contractor working to a drawing dimension, or matching an existing plate on a door that has already been trimmed, generally works from the 8400 for that reason.
8) What does four beveled edges mean on a kick plate and why does it matter?
All four sides of the 8400 are beveled rather than left as a square sheared edge. That takes the sharp arris off the exposed top and side edges, which matters on a door people brush past and on any opening where a code official or a facility safety walk would flag an exposed edge. Some plates are beveled on three sides only, on the assumption the fourth edge is hidden at the bottom of the door; four sided beveling means the plate looks finished no matter how you orient it.
