Ives LG13 Lock Guard for Type 161 Cylindrical Locks with Security Frame Pin

Ives LG13 Lock Guard for Type 161 Cylindrical Locks with Security Frame Pin

Professional Latch Protection for Commercial Door Security

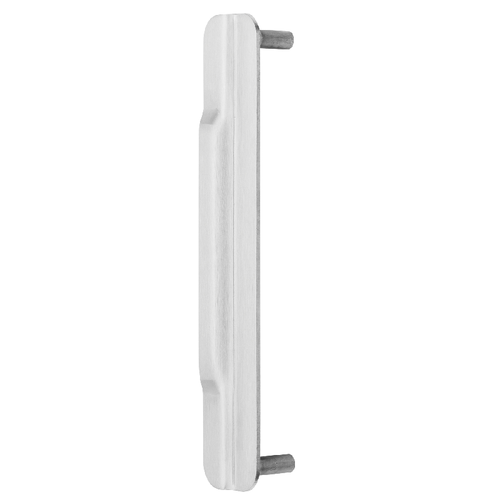

The Ives LG13 Lock Guard is specifically designed for use on all type 161 cylindrical locks (ANSI 156.2 Series 2000) including Monolock and Unilock systems. This non-handed security device features a unique design that provides maximum security by virtually eliminating the opening between door and frame at the latch point. Constructed with 2 welded mounting studs and no exposed fasteners on the face of the unit, the LG13 measures W: 1-1/2", H: 7" for precise door protection applications.

Professional Features & Benefits

• Precise Dimensional Design: W: 1-1/2", H: 7" dimensions engineered specifically for type 161 cylindrical locks with optimal coverage.
• Maximum Security Protection: Unique design virtually eliminates the opening between door and frame at latch point, preventing unauthorized access attempts.
• Heavy-Duty Construction: Available in 12 gauge steel or 13 gauge stainless steel for exceptional durability in commercial applications.
• Professional Installation Design: Features 2 welded mounting studs with no exposed fasteners on face of unit for clean, tamper-resistant appearance.
• Universal Compatibility: Non-handed design works with all type 161 cylindrical locks including Monolock and Unilock systems for versatile installation options.
• Security Frame Pin: Incorporates security frame pin to prevent door and frame separation for enhanced protection against forced entry.
• Fire Rating Compliance: UL10C Listed (3 hour) certification ensures code compliance for fire-rated door applications.

Technical Specifications

• ANSI/BHMA: UL10C Listed (3 hour)
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Package Includes: 2 welded mounting studs
• Product Category: Door Trim and Accessories
• Product Dimension: W: 1-1/2", H: 7"
• Product Group: Door Trim and Accessories
• Product Model: LG13
• Product Subgroup: Door Trim and Latch Protection
• Product Substrate: Steel or Stainless Steel
• Product Type: Latch Protectors
• Subcategory: Exterior Hardware

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and compatibility with type 161 cylindrical locks.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 2 welded mounting studs.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications using the welded mounting stud system.
5. Adjust operational components for proper alignment with the latch bolt area and verify security frame pin engagement for door and frame separation prevention.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Ives Quality?

Ives lock guard products deliver professional-grade reliability with heavy-duty construction available in 12 gauge steel or 13 gauge stainless steel options. UL10C Listed (3 hour) fire rating certification ensures code compliance for demanding commercial applications. Engineered for demanding commercial applications where dependable latch protection and maximum security performance are essential.
