Burndy K3A29U-2N K3A29U-2N

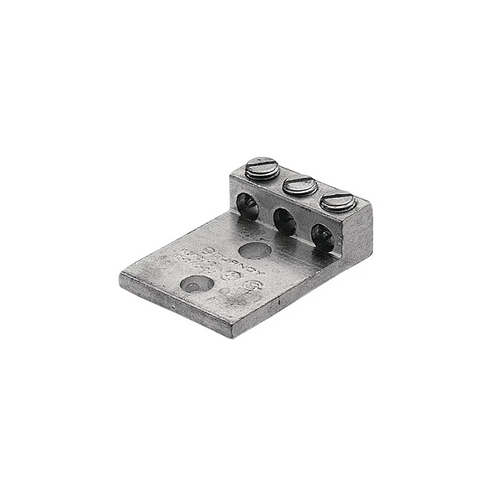

Burndy Aluminum Universal Terminal 3-Conductor 6 AWG-250 kcmil with Tin Plating

(No reviews yet) Write a Review

Model: K3A29U-2N
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$113.23
$63.23
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy Aluminum Universal Terminal 3-Conductor 6 AWG-250 kcmil with Tin Plating

Professional electrical connection solution for multi-conductor applications

The Burndy Aluminum Universal Terminal delivers reliable electrical connections for 3-conductor installations with 6 AWG-250 kcmil wire capacity. This UL Listed terminal features tin plating for enhanced corrosion resistance and durability, with 2-hole mounting configuration and 275 lb-in installation torque specification for secure connections in professional electrical applications.

Professional Features & Benefits

  • 6 AWG-250 kcmil Wire Range: Accommodates both aluminum and copper stranded conductors for versatile installation flexibility
  • 3-Conductor Design: Enables efficient multi-wire connections in a single compact terminal assembly
  • UL Listed & CSA Certified: Meets UL468A-468B industry standards ensuring code compliance and safety
  • Tin Plating: Provides superior corrosion resistance and enhanced conductivity for long-term performance
  • 275 lb-in Torque Rating: Engineered installation specification ensures optimal connection integrity
  • 2-Hole Mounting: Secure mechanical attachment with 0.57" bolt holes for reliable installation
  • Aluminum Construction: Lightweight yet durable material optimized for electrical conductivity

Technical Specifications

  • Aluminum Size Range: 6 AWG-250 kcmil
  • Bolt Hole Size: 16-Sep
  • Bolt Hole Size In: 0.57
  • Connector Type: Terminal
  • Copper Solid Size Range: N/A
  • Copper Stranded Range: 6 AWG-250 kcmil
  • Csa Certified: Y
  • Culus: N
  • D In: 3.16
  • E In: 1.75
  • Industry Standards: UL468A-468B
  • Installation Torque: 275
  • Length In: 4
  • N In: 0.63
  • Number Of Conductors: 3
  • Number Of Holes: 2
  • Pad Width In: 3.01
  • Plated Yes Or No: Y
  • Product Description: Aluminum Universal Terminal, 3 Conductor, 2 Hole, 6 AWG (Str)-250 kcmil, 1/2" Stud, 1.75" Stud Hole
  • Rated For Direct Burial: N
  • Rohs Compatible: Non-Compliant
  • Thickness: 0.31
  • Type Of Plating: Tin
  • Ul Listed: Y
  • Ul Recognized: N
  • Width In: 2.81

Installation & Operation

  1. Mount the terminal in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical Panel Connections
  • Distribution Equipment
  • Industrial Control Systems
  • Commercial Electrical Installations
  • Multi-Conductor Junction Points
  • Power Distribution Systems
  • Electrical Maintenance & Repair

Why Choose Burndy Quality?

Burndy terminals deliver proven reliability with UL Listed and CSA Certified construction meeting UL468A-468B industry standards. The tin plating and precision aluminum construction ensure long-term performance and code compliance for professional electrical installations.

Manufacturer Resources

Product Specs

Aluminum Size Range :
6 AWG-250 kcmil
Bolt Hole Size:
16-Sep
Bolt Hole Size In :
0.57
Connector Type:
Terminal
Copper Solid Size Range :
N/A
Copper Stranded Range :
6 AWG-250 kcmil
Csa Certified:
Y
Culus:
N
D In:
3.16
E In:
1.75
Industry Standards:
UL468A-468B
Installation Torque:
275
Length In :
4
N In :
0.63
Number Of Conductors:
3
Number Of Holes:
2
Pad Width In :
3.01
Plated Yes Or No :
Y
Product Description:
Aluminum Universal Terminal, 3 Conductor, 2 Hole, 6 AWG (Str)-250 kcmil, 1/2" Stud, 1.75" Stud Hole
Rated For Direct Burial:
N
Rohs Compatible:
Non-Compliant
Thickness:
0.31
Type Of Plating:
Tin
Ul Listed:
Y
Ul Recognized:
N
Width In :
2.81
