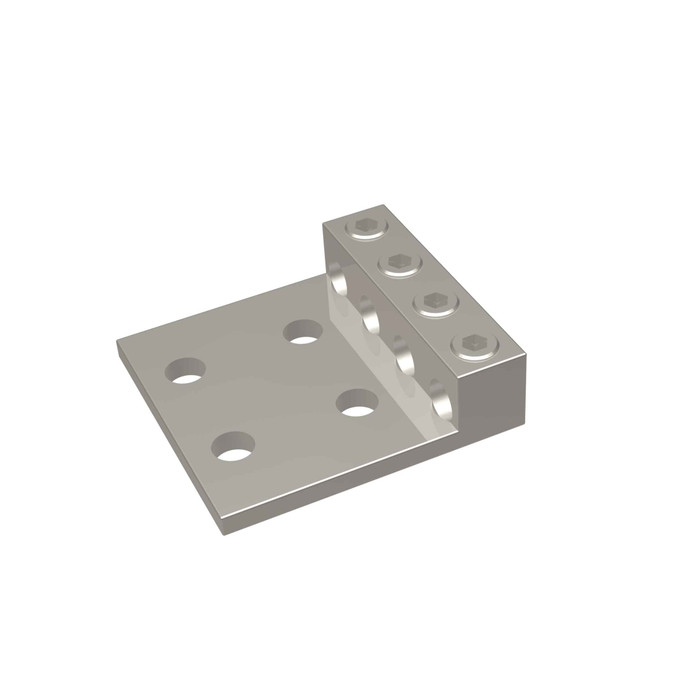

Burndy 4-Conductor Aluminum Universal Terminal Lug 6 AWG-250 kcmil with Tin Plating

Burndy 4-Conductor Aluminum Universal Terminal Lug 6 AWG-250 kcmil with Tin Plating

Professional electrical connection solution for multi-conductor applications

The Burndy 4-Conductor Aluminum Universal Terminal Lug delivers reliable electrical connections for aluminum and copper stranded conductors from 6 AWG to 250 kcmil. This UL Listed terminal features tin plating for enhanced corrosion resistance and accommodates four conductors in a single connection point with 275 lb-in installation torque specification.

Professional Features & Benefits

• 4-Conductor Design: Accommodates multiple conductors in a single terminal for efficient panel connections and reduced installation time
• 6 AWG-250 kcmil Range: Handles both aluminum and copper stranded conductors across a wide ampacity range for versatile applications
• Tin Plating: Provides superior corrosion resistance and maintains reliable electrical contact over extended service life
• UL 467 Listed: Meets rigorous safety standards for electrical terminal connections ensuring code compliance
• 275 lb-in Torque Rating: Specified installation torque ensures proper connection integrity and prevents over-tightening damage
• CSA Certified: Approved for Canadian electrical installations meeting national safety requirements
• Universal Design: Compatible with both aluminum and copper stranded conductors for maximum installation flexibility

Technical Specifications

• Aluminum Size Range: 6 AWG-250 kcmil
• Bolt Hole Size: 16-Sep
• Bolt Hole Size In: 0.56
• Connector Type: Terminal
• Copper Solid Size Range: N/A
• Copper Stranded Range: 6 AWG-250 kcmil
• Csa Certified: Y
• Culus: N
• D In: 3.16
• E In: 1.75
• Industry Standards: UL467
• Installation Torque: 275
• Length In: 4.25
• N In: 0.63
• Number Of Conductors: 4
• Pad Width In: 4
• Plated Yes Or No: Y
• Product Description: Aluminum Universal Terminal, 4 Conductor, 4 Hole, 6 AWG (Str)-250 kcmil, 1/2" Stud, 1.75" Stud Hole
• Rated For Direct Burial: N
• Rohs Compatible: Exempt
• Thickness: 0.31
• Type Of Plating: Tin
• Ul Listed: Y
• Ul Recognized: N
• Width In: 3.69

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Switchgear Installations
• Motor Control Centers
• Distribution Equipment
• Industrial Control Panels
• Commercial Electrical Systems
• Multi-Conductor Terminations

Why Choose Burndy Quality?

Burndy terminal lugs provide dependable electrical connections backed by UL 467 listing and CSA certification. The tin plating and precision manufacturing ensure long-term reliability in demanding electrical applications, making this terminal lug a trusted choice for professional electrical installations.
