Kaba Ilco IL-OP-15 Series 31/3...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$30.88

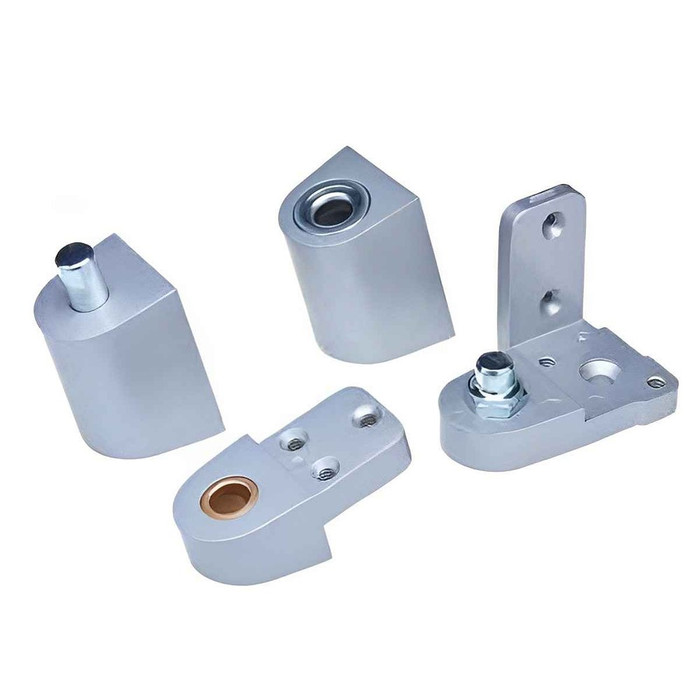

Kaba Ilco Kaba Ilco IL-OP-15 Series For Pittco and Efco Style Doors ILC-IL-OP-15

Kaba Ilco IL-OP-15 Series 31/32" Offset Pivot Set for Pittco and Efco Style Aluminum Doors

(No reviews yet) Write a Review

Model: IL-OP-15-RH-AL-SETS
Selected Finish is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$30.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Kaba Ilco IL-OP-15 Series 31/32" Offset Pivot Set for Pittco and Efco Style Aluminum Doors

The Kaba Ilco IL-OP-15 Series offset pivot set is engineered for both recessed door and flush face frame aluminum doors and frames, offering a reliable replacement option for most major door manufacturers' pivot hardware. This 31/32" (24.61mm) pivot set features die cast aluminum construction with a full race ball bearing incorporated into the bottom pivot portion, delivering smooth and durable operation for commercial storefront door applications. Built for Pittco and Efco style aluminum doors, this standard duty, non fire rated pivot set is designed for straightforward replacement and long term performance.

Key Features

  • Pivot Dimension: Recessed pivot sets measure 31/32" (24.61mm), suited for recessed door and flush face frame aluminum doors and frames.
  • Vertical Adjustment: 1/8" (3.18mm) vertical adjustment allows precise door alignment during installation.
  • Heavy-Duty Construction: Die cast aluminum construction with a full race ball bearing incorporated into the bottom pivot portion provides smooth, durable operation.
  • No Sag Design: The weight of the door rests on the floor mounted pivot portion, helping prevent door sag over time.
  • Easy Maintenance: Easily replaceable from inside the door, simplifying field service and reducing downtime.
  • Theft Resistant & Weatherproof: Durable construction resists tampering and withstands exposure in storefront applications.
  • Finish Options: Available in two standard finishes, with special order finishes available upon request, including dark bronze.
  • Fasteners Included: Sets include fasteners for installation.
  • Broad Compatibility: Door pivots replace most major door manufacturers' hardware on Pittco and Efco style aluminum doors.

Technical Specifications

  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Type: Pivots - Center Hung
  • Commercial/Residential: Commercial
  • Duty Level: Standard Duty
  • Electronic: No
  • Pivot Type: Top
  • Mounting Method: Offset
  • Application: Standard Door
  • Fire Rating: No
  • Product Category: Door Hinges and Pivots

Typical Applications

  • Commercial Storefront Entrances
  • Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Multi-Tenant Commercial Properties
  • Aluminum Door and Frame Replacement Projects

Why Kaba Ilco IL-OP-15?

Kaba Ilco IL-OP-15 Series pivot sets combine die cast aluminum construction with a full race ball bearing for dependable, long lasting performance on recessed and flush face frame aluminum doors. Designed for easy replacement from inside the door and built to resist theft and weather exposure, this pivot set offers a practical solution for standard duty commercial storefront applications using Pittco and Efco style doors.

Product Specs

Product Group:
Door Hinges and Pivots
Series:
IL-OP-15 Series
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivots - Center Hung
Subcategory:
Door Pivots
Commercial/Residential:
Commercial
Duty Level:
Standard Duty
Electronic:
No
Pivot Type:
Top
Mounting Method:
Offset
Application:
Standard Door
Product Attribute:
Pivots
Fire Rating:
No
Product Category:
Door Hinges and Pivots
Product Substrate:
Aluminum
Department:
Door Hardware

Kaba Ilco IL-OP-15-RH-AL-SETS – Frequently Asked Questions

1) Will the Kaba Ilco IL-OP-15 pivot set work on an aluminum storefront door with a Pittco or Efco style frame?
That is exactly what the IL-OP-15 Series is built for. It covers Pittco and Efco style aluminum doors and frames, and works on both recessed door and flush face frame applications. The set is die cast aluminum, sized as a 31/32 inch (24.61mm) recessed pivot set, and Ilco states these pivots replace most major door manufacturers' pivots. If your opening is a wood or hollow metal door rather than aluminum storefront, this is the wrong family.
2) Do I have to order the IL-OP-15 pivot set left hand or right hand?
Handing is required. The IL-OP-15 pivot set is ordered as Left Hand (LH) or Right Hand (RH), and each handing comes in either AL painted aluminum or DU dark bronze. Determine the swing at the door before you order, because an offset pivot is handed hardware and the wrong hand will not mount correctly on the opening.
3) Will an offset pivot set like the IL-OP-15 keep a sagging aluminum door from dropping?
The bottom pivot carries the door's weight on the floor mounted portion, so the load goes into the floor rather than hanging on the jamb, and Ilco specifically calls out no sag. A full race ball bearing is built into the bottom pivot portion for the swing. There is also 1/8 inch (3.18 mm) of vertical adjustment, which is what you use to bring a door back up to an even head clearance or reset the sweep to the threshold.
4) What center hung pivot set works for an aluminum storefront door instead of a wood or steel door?
The Kaba Ilco IL-OP-15 pivot set is built for aluminum doors and frames, with die cast aluminum construction and a 31/32 inch recessed pivot dimension for Pittco and Efco style openings. The Dorma CP440 double acting center hung pivot set is specified for wood or steel doors up to 440 lb, and the Hager 500 full mortise center hung pivot is standard weight brass construction for doors 1-3/8 inch to 1-3/4 inch thick. For a hollow metal or wood leaf, the CP440 or Hager 500 is the right family; for an aluminum storefront leaf, the IL-OP-15 is the one cut for that substrate.
5) Do I need to buy fasteners or a separate top pivot with the Ilco IL-OP-15?
Fasteners are included with the set. The IL-OP-15 is supplied as a pivot set covering the top and bottom pivot portions, so you are not sourcing a separate top pivot. Ilco also notes the pivots are easily replaceable from inside the door, which matters on a service call where you are not pulling the door out of the frame.
6) What is the difference between an offset pivot set like the IL-OP-15 and a true center hung pivot?
The IL-OP-15 mounts offset, which is the arrangement aluminum storefront doors use so the door swings inside its own frame line on a single direction swing. True center hung pivots put the pivot point in from the edge so the door can swing both ways. If you need a double acting door, look at a double acting center hung set such as the Dorma CP440 for wood or steel doors, or the Hager 510 Camtrol double acting hospital pivot set for wood floors. Those are different openings, not different finishes of the same job.
7) The floor at the opening is concrete. Does that change which center hung pivot set I order?
It can. The IL-OP-15 bottom pivot is floor mounted so the door weight rests on it, with fasteners included in the set, and it is intended for aluminum door and frame construction. Among center hung sets built around the floor condition, the Hager 511 mortise hospital pivot set is for masonry floor installation and the Hager 512 Camtrol surface set is for masonry floor applications, while the Hager 510 Camtrol set is for wood floors. Confirm the floor construction before you pick between a mortised and a surface mounted bottom.
8) Is the Dorma 8062 top pivot a direct replacement for the Kaba Ilco IL-OP-15?
No, they are not interchangeable parts. The IL-OP-15 is a complete 31/32 inch offset mounted pivot set covering the top pivot and the ball bearing bottom pivot, supplied handed and with fasteners. The Dorma 8062 is a walking beam center hung complete top pivot with cover plate, a heavy duty top pivot rather than a full top and bottom set. Ives sets such as the 7253 are supplied as top and bottom. Check whether you are replacing one pivot or the whole set before ordering.
9) What finishes does the Kaba Ilco IL-OP-15 pivot set come in?
Two stock finishes: AL painted aluminum and DU dark bronze, each available in left hand or right hand. Ilco notes special order finishes can be requested. For a property manager matching a row of storefront entrances, the AL and DU pair covers the two finishes most aluminum storefront lines are supplied in.
10) Are these Ilco storefront pivots okay on an exterior door exposed to weather?
The IL-OP-15 pivots are described as theft resistant and weatherproof, and the die cast aluminum construction suits an exterior aluminum entrance. Dark bronze (DU) and painted aluminum (AL) are the two stock finishes, which is what most storefront frames are anodized to match.
11) Is there any electrical or power transfer option on the Ilco IL-OP-15 pivot?
No, the IL-OP-15 is a purely mechanical pivot set with no electronic option. If you need power into the door leaf for an electrified lock or exit device, that has to come from a separate electric power transfer or door loop, not from this pivot.
12) What center hung pivot sets are used on hospital and healthcare doors?
The Hager hospital pivot sets are the ones purpose built for that use: the 510 Camtrol double acting set for wood floors, the 511 mortise set for masonry floor installation, and the 512 Camtrol double acting surface set for masonry floor applications, all three heavy duty. The Kaba Ilco IL-OP-15 is a standard duty commercial pivot set for aluminum Pittco and Efco style storefront doors, which is a different opening type than a swinging hospital door.
