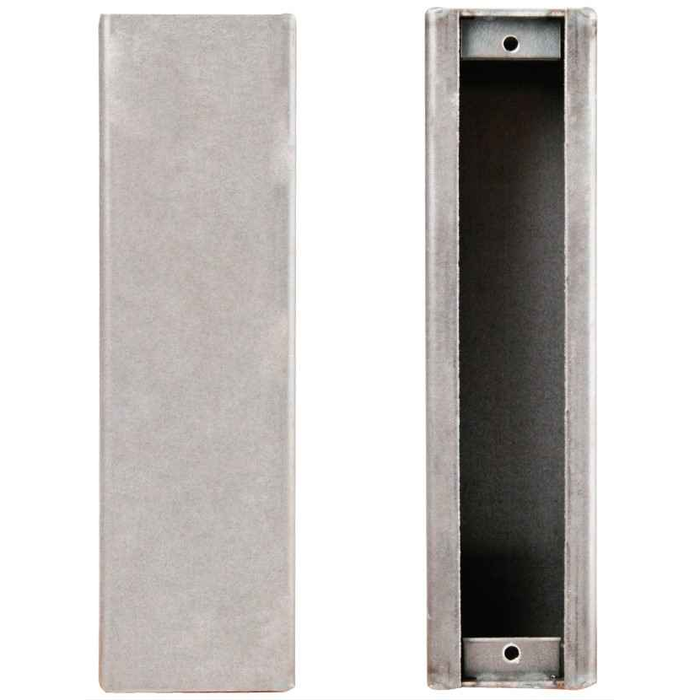

Keedex K-BXA/R-NH Lock Box Adams Rite 1850s/1851s No Cylinder Holes

Keedex K-BXA/R-NH Lock Box Adams Rite 1850s/1851s No Cylinder Holes

(No reviews yet) Write a Review

Model: K-BXA/R-NH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$45.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keedex K-BXA/R-NH Lock Box Adams Rite 1850s/1851s No Cylinder Holes



Type:

  • Mortise


Dimensions:

  • 2 1/16 ”W x 7”H x 1 13/16”D



Backset:

  • 1 1/8”



Materials Available:

  • 14 Gauge Steel



Product Downloads:

Manufacturer Resources

Product Specs

Series:
K-BXA/R-NH
Product Group:
Door Trim and Accessories
Product Subgroup:
Gate Boxes
Product Type:
Gate Boxes
Subcategory:
Gate Boxes
Commercial/Residential:
Commercial
Lock Type:
Mortise
Product Dimension:
2 1/16" W x 7" H x 1 13/16" D
Product Category:
Door Trim and Accessories
Product Substrate:
14 Gauge Steel
Backset (Distance):
1-1/8"
Department:
Door Hardware

Keedex K-BXA/R-NH – Frequently Asked Questions

1) What lock does the Keedex K-BXA/R-NH lock box fit?
The K-BXA/R-NH is the weld-on lock box built for Adams Rite 1850s and 1851s deadlatch hardware. It houses that mortise lock body in a hollow metal gate frame or tube steel stile where there is no pocket to mortise into. It is the no-hole version, so there are no cylinder holes drilled in the box faces.
2) How much room do I need in the gate frame to weld in the K-BXA/R-NH box?
The box measures 2-1/16 x 7 x 1-13/16 inches. The 1-13/16 inch depth is the number that decides the job: your tube or channel has to be at least that deep front to back, plus weld clearance, or the box will stand proud of the stile face.
3) Does the Keedex K-BXA/R-NH come with the Adams Rite lock, cylinder, or trim?
No. It is the steel enclosure only. You supply the Adams Rite 1850s or 1851s deadlatch, the cylinder, the exterior trim or paddle, and the strike, plus the welding to set the box into the frame.
4) Why would I want a lock box with no cylinder holes instead of one that is pre-drilled?
With no cylinder holes you drill the box to match your own trim and cylinder layout after it is welded in place. That matters on gates and tube frames where the paddle, thumbturn, or cylinder height is set by the existing prep rather than by the box. If you want the holes already located for you, order the drilled version of the Adams Rite lock box instead.
5) Is this Keedex lock box heavy enough for a commercial gate that gets hit all day?
It is formed from 14 gauge steel and rated for commercial use. That is the gauge locksmiths use on exterior gates and storefront tube stiles because it takes the weld heat without distorting and keeps the lock body from racking when the gate slams.
6) Is the K-BXA/R-NH a surface mount box or does it get welded in?
It is a mortise-type box, meaning it sits inside the frame rather than bolting to the face. On gates and hollow tube stiles that means cutting the opening and welding the box in, then finishing and painting it with the gate.
7) I have one gate with the cylinder outside and one with a thumbturn inside. Can I use the same box on both?
Yes, that is the point of the no-hole box. The K-BXA/R-NH ships undrilled, so one part number covers both openings and you cut the cylinder and turn holes to suit each gate. Handing is not fixed by the box either, since you locate the holes yourself.
