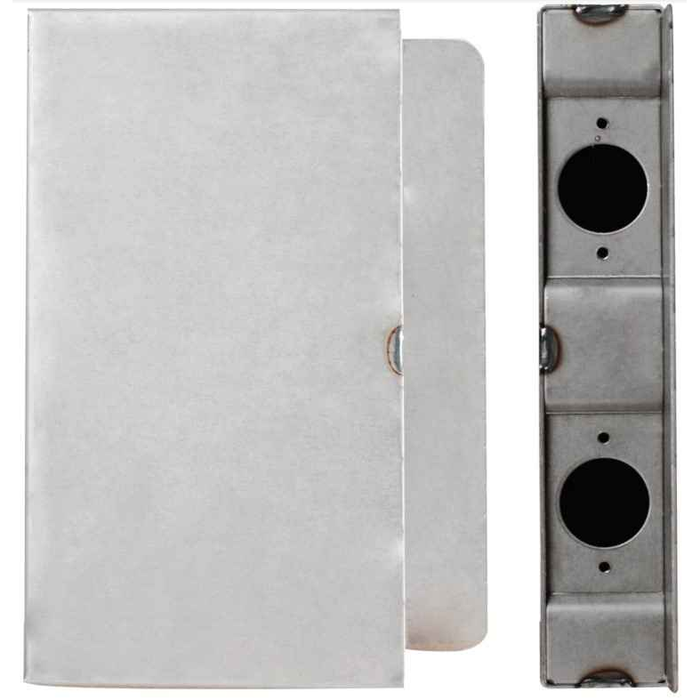

Keedex K-BXDIG-1150 Weldable Gate Box Digital 1150
Type:
- Cylindrical
Dimensions:
- 4 3/4 ”W x 8 1/2”H x 1 3/4 ”D
Materials Available:
- 14 Gauge Steel
- .125 Auminum
Product Downloads:
Manufacturer Resources
Product Specs
- Series:
- K-BXDIG-1150
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Gate Boxes
- Product Type:
- Gate Boxes
- Subcategory:
- Gate Boxes
- Commercial/Residential:
- Commercial
- Lock Type:
- Cylindrical
- Product Dimension:
- 4 3/4" W x 8 1/2" H x 1 3/4" D
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- 14 Gauge Steel
- Department:
- Door Hardware
Keedex K-BXDIG-1150 – Frequently Asked Questions
1) What size opening do I need to cut for the Keedex K-BXDIG-1150 gate box?
The K-BXDIG-1150 weldable gate box measures 4-3/4 inches wide by 8-1/2 inches high by 1-3/4 inches deep, so your gate frame needs to accept a box of that footprint with 1-3/4 inches of clear depth behind the face. On a tube-steel gate, the 1-3/4 inch depth is the number to check first, since the box has to sit inside the tube without fouling the back wall.
2) Will the Keedex 1150 gate box take a cylindrical digital lock?
Yes. The K-BXDIG-1150 is prepped as a cylindrical lock box, so it houses a digital pushbutton lock built on a cylindrical chassis rather than a mortise body. If the lock you are installing is a mortise case, this is the wrong box for it.
3) Should I order the steel or the aluminum Keedex K-BXDIG-1150 gate box?
Two materials are offered: 14 gauge steel and .125 aluminum. Pick the one that matches the gate you are welding to, since you want like metal to like metal for a clean weld. Steel box to a steel tube gate, aluminum box to an aluminum gate. The steel version will need paint or coating after welding to hold up outdoors; the aluminum will not rust.
4) Does the Keedex gate box come with the digital lock, or do I order that separately?
The K-BXDIG-1150 is the weldable enclosure only. It is a gate box, not a lock, so the cylindrical digital lock, its trim and any strike hardware are separate line items on your order.
5) How does a weldable gate box mount, and do I need any fasteners?
There are no mounting screws or brackets with this one. The K-BXDIG-1150 is designed to be welded directly into the gate frame, which is why it ships in a matching substrate (14 gauge steel or .125 aluminum) to the gate itself. Plan for a welder on site, plus finish work on the steel version.
6) Is the Keedex weldable gate box rated for commercial gate use?
It is a commercial-duty item. The 14 gauge steel version in particular is built for gates that see constant public traffic, such as apartment community pool and pedestrian gates.
