Klein Tools Haven's Cable Grip

Klein Tools Haven's Cable Grip

(No reviews yet) Write a Review

Model: 1604-10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$121.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

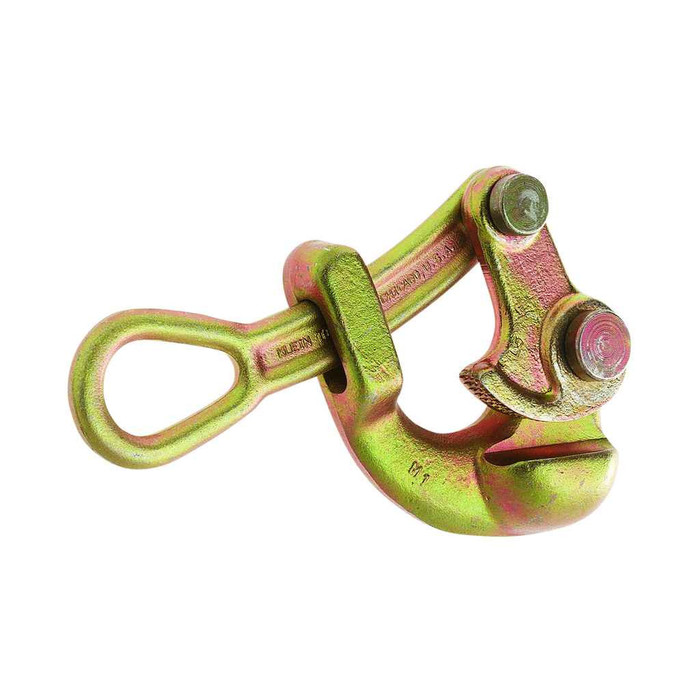

Haven's® Cable Grip 0.5-Inch Capacity

  • Features

    • Rigorously tested and pulled to rated load to ensure the highest quality and reliability
    • Individually hand inspected and actuated for proper function
    • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
    • Maximum safe load of 5000-Pound (2268 kg)
    • Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)
    • Made in USA
    • Designed for use when light, compact grip is desired and where conductor damage is not a factor

  • Warnings

    • Always match proper size and type of grip to application.
    • Grips are to be used for temporary installation, not for permanent anchorage.
    • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
    • Do not exceed rated capacity.
    • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.


1604-20 - spec sheet

Product Specs

Cable Type:
Messenger, Guy Strand
Department:
Electrical
Product Type:
Pulling Grip
Locking Handle:
No
Product Details:
Haven's Grip
Product Subgroup:
Cable Pullers
Hot Latch:
No
Jaw Type:
Aggressive
Spring:
No
Product Group:
Electrical Installation Tools
Swing Latch:
No
Product Material:
Steel

Klein Tools 1604-10 – Frequently Asked Questions

1) What cable diameter range does the Klein Haven's Cable Grip handle?
The 0.5-inch capacity Haven's Grip (Klein 1604-20) works on messenger and guy strand from 0.125 to 0.500 inch (3.18 to 12.70 mm). There is also a 0.25-inch capacity version, model 1604-10, for smaller strand. Match the grip size to the strand you are actually pulling, not to the largest one on the job.
2) Will a Haven's grip damage the conductor I'm pulling?
It can. The Haven's Grip uses an aggressive knurled jaw and concentrates gripping pressure on a 1/4-inch (6.35 mm) area of the cable, so it is meant for jobs where a light, compact grip matters and conductor damage is not a concern. For bare conductor you intend to keep in service, use a grip with a longer, gentler jaw instead.
3) Does the Klein Haven's Cable Grip have a locking handle or spring-loaded jaws?
No. This Haven's Grip has no locking handle, no spring, no hot latch and no swing latch. It is the plain, compact configuration, so the lineman holds tension on the handle to set the jaws and the load keeps them closed during the pull. If you need a latch to keep the handle captive, you want a different grip configuration.
4) Can I use this grip on energized or near-energized lines?
Only with precautions. There is no hot latch on this grip, and Klein's own warning is to ground, insulate, or isolate the grip before pulling when it is used on or near energized lines. Crews doing routine hot work generally specify a grip built for it.
5) Which Haven's grip do I order for 1/4-inch guy strand?
Two capacities are offered: model 1604-10 at 0.25-inch capacity and model 1604-20 at 0.5-inch, which covers 0.125 to 0.500 inch strand. For 1/4-inch guy strand either can apply, but the 1604-10 is the one sized to that capacity and is the lighter grip to carry up a pole.
6) What should I check before each pull with a Haven's Grip?
Clean the jaw area and inspect the grip for proper operation before every use, since built-up grit is what causes slippage. Confirm the grip size and type match the strand, and never load it past its rating. Each unit ships hand inspected and actuated for function, and they are made in the USA.
