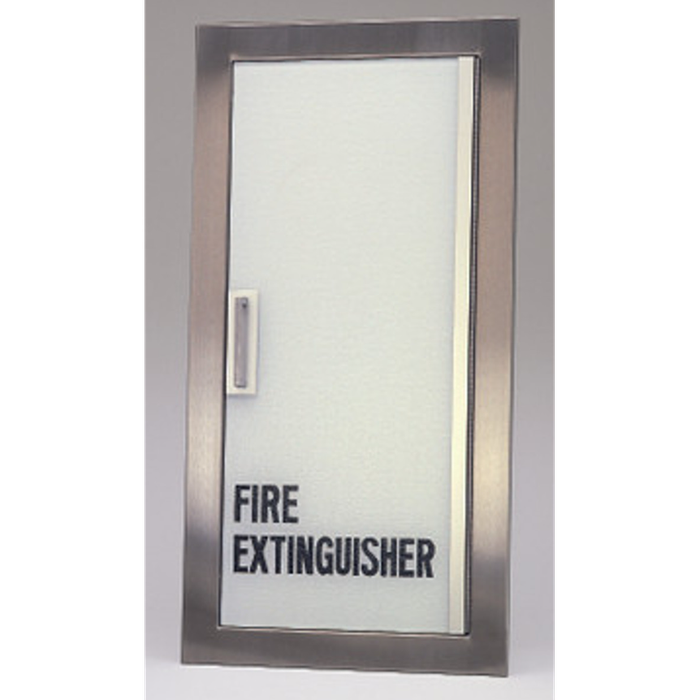

Larsens 2409 Fire Extinguisher Cabinet - Gemini Series, ADA Compliant, 5 lb Capacity, Stainless Steel Frame, Acrylic Door, Non-Fire Rated

Larsens 2409 Fire Extinguisher Cabinet - Gemini Series, ADA Compliant, 5 lb Capacity, Stainless Steel Frame, Acrylic Door, Non-Fire Rated

(No reviews yet) Write a Review

Model: SSG24095RW
From the Gemini Collection
$184.16
Selected Door Color is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$184.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pictures of Doors for Reference only. You can choose your door style when viewing Product

Larsens Gemini Series 2409-5LB Capacity-Non Fire Rated-Stainless Steel Frameless Acrylic Door Cabinets

These Gemini Series Cabinets feature a nominal inside box dimension of 24 inches (60.9 cm) height, 9.5 inches (24.1 cm) width and 5 inches (12.7 cm) depth.
GEMINI SERIES GENERAL DESCRIPTION: Larsen’s Gemini Series is an aesthetically designed cabinet line which is identified by an extensive selection of frameless acrylic doors. Gemini cabinets are identical to the Architectural Series, except these units have a frameless door of smooth or textured acrylic in lieu of the conventional hollow-metal door frame. The dimensions of the Gemini Series cabinets are outlined in the table at right. Please refer to page 7 for the appropriate wall installation and trim projection information. The Gemini Series is specified by using the prefix “G” as part of the model number.
DOOR SPECIFICATION: The standard door material is smooth or textured acrylic. If lettering is specified, the design is placed on the back of the door to prevent damage. A selection of the more popular Gemini door styles is pictured below. The complete range of options, however, is outlined in the chart below. The Larsen-Loc® is available with all door styles. All doors have a satin finish pull handle with a self-adjusting roller catch and a continuous piano hinge constructed of material which matches the trim.
  • Inside box depth is 43 ⁄4" when supplied with aluminum door and trim. The AL G2409-5R and AL G2409-R7 have 11 ⁄4" square trims.
  • Trimless cabinets must be installed before drywall because their plaster stops must be behind the drywall. Trimless are not recommended for block wall installation.
  • Deduct 3 ⁄4" from H x W dimensions for cabinets with aluminum trim. This does not apply to “FS” fire-rated option.
  • To comply with ADA wall projection guidelines, this cabinet must be mounted with its leading edge at or below 27" from the finished floor.
  • To comply with ADA wall projection guidelines, this cabinet must be specified with Larsen’s recessed handle

ALL OF THESE DOOR STYLES ARE AVAILABLE WITH EXCLUSIVE LARSEN-LOC® OPTION. The Larsen-Loc® provides access to a locked cabinet, without requiring the breaking of glass. During an emergency, it permits the cabinet door to be opened simply by pulling sharply on the handle. Factory applied decal reads: “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE”. By specifying the Larsen-Loc®, access to a locked cabinet is totally independent of the desired door style and glazing. All door styles can be combined with the Larsen-Loc®, including a solid metal door. The standard Larsen-Loc® on a Solid Door would be appropriate for gymnasiums or any locations where emergency access is required but where any kind of glazing or glazing opening may not be suitable. The Solid Door with Larsen-Loc® also can be specified as an Institutional Door (emergency access only with a key) by deleting the pull handle and decal


Additional Options:

Decal Examples

Die-cut letters are state-of-the-art for precise and attractive cabinet identification and have replaced silk screen letters as the industry standard. They are available in standard colors of red, black, or white and the standard designs of vertical, horizontal, or type A. A selection of the more popular styles is pictured below. Custom lettering, special colors, and pictorial graphics also are available, if specified.


VIGILANTE ALARM

Larsen’s exclusive Vigilante Alarm provides additional protection for a cabinet’s life safety contents. The Vigilante can reduce theft losses, help to prolong extinguisher life, and safeguard fire department valves, fire hose, and other equipment. It is constructed of high impact plastic, is plunger activated and includes a heavy-duty 9 volt battery as standard equipment. The on/off jack provides for convenient servicing of the cabinet’s contents by authorized personnel.


Manufacturer Resources

Larsens Catalog

Product Specs

Door Material:
Stainless Steel
Extinguisher Capacity:
5LB
Surface Mounted:
No
Cabinet Inside Box Height:
24"
Cabinet Inside Box Width:
9.5"
Cabinet Inside Box Depth:
5"
Outside Trim Flange Height:
27.5"
Outside Trim Flange Width:
13"
Rough Opening Height:
25"
Rough Opening Width:
10.5"
ADA:
Yes
Cabinet Style:
Gemini
Collection:
Gemini
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
No
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens SSG24095RW – Frequently Asked Questions

1) Can you lock a Larsens Gemini fire cabinet and still get the extinguisher out in an emergency?
Yes, that is what the Larsen-Loc option is for. A locked cabinet opens by pulling sharply on the handle, no glass breaking, with a factory applied decal reading IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE. The lock itself is an order choice (included or not included). Larsen-Loc works with every door style including a solid metal door, which is the one to use in a gym or anywhere glazing is a bad idea. Delete the pull handle and decal and the same solid door becomes an Institutional Door, key access only.
2) How do I order the Larsens Gemini 2409 so it actually meets ADA wall projection rules?
Two things decide it, and one of them is an order option. Specify the recessed handle rather than the standard pull, and mount the cabinet with its leading edge at or below 27 inches from the finished floor. The handle style is a choice at order time (recessed or not recessed), so a cabinet ordered with the non recessed handle will not satisfy the projection guideline no matter how you mount it.
3) What is the difference between the Larsens Gemini Series and the Architectural Series fire extinguisher cabinets?
The box is the same. Gemini cabinets are identical to the Architectural Series except the door: Gemini uses a frameless smooth or textured acrylic door in place of the conventional hollow metal door frame. Pick Gemini when you want the cleaner frameless look on a finished lobby or corridor wall, and the Architectural Series when you want a metal framed door. Gemini models carry the prefix G in the model number.
4) What door colors does the Larsens Gemini 2409 acrylic door come in, and can you see the extinguisher through it?
Four choices: clear, red, black and white. Clear is the one that lets an inspector confirm the extinguisher is present and charged without opening the door. Red, black and white are opaque acrylic, so for those, identification comes from the die cut lettering or the international extinguisher symbol applied to the door. Lettering is placed on the back of the acrylic so it cannot be scratched off.
5) How do I stop people stealing the extinguisher out of a Larsens cabinet in a public building?
Add the Vigilante Alarm. It is plunger activated, so it sounds when the door is opened, which cuts theft losses and keeps extinguishers, fire department valves and hose in place. High impact plastic housing, heavy duty 9 volt battery included as standard. An on/off jack lets authorized staff silence it while they service the cabinet contents. It can be ordered standard or surface mounted.
6) How do I get FIRE EXTINGUISHER lettering on a Larsens cabinet door, and what are my options?
Die cut letters, applied to the back of the acrylic so they cannot be damaged. Standard colors are red, black and white, and standard layouts are vertical, horizontal, and Type A. The international extinguisher symbol is available in red or black. Custom lettering, special colors and pictorial graphics can be done if you specify them. Separate wall signs and door decals are also orderable alongside the cabinet.
7) Is the Larsens Gemini 2409 stainless steel cabinet suitable for a kitchen or wash down area?
The 2409 is offered with a stainless steel door and frame, which is the finish specified for commercial kitchens, food service corridors and healthcare areas where the wall gets cleaned down. The door itself is a frameless acrylic panel with a satin finish pull handle, a self adjusting roller catch, and a continuous piano hinge made of material matching the trim, so the hinge finish follows the stainless trim rather than clashing with it.
