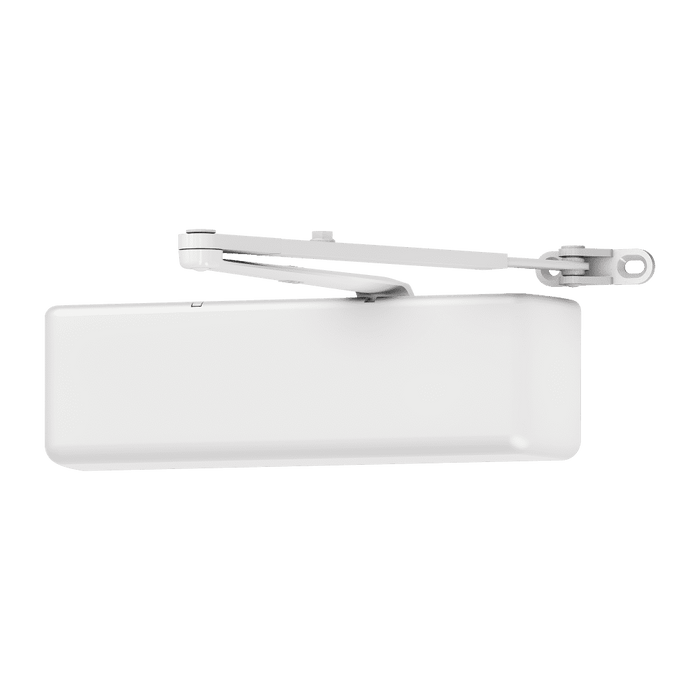

LCN 4040XP Heavy-Duty Surface-Mounted Door Closer with 10 Million Cycle Certification and RAL9003 White Finish

Gold Standard Commercial Door Closer with 10 Million Cycle Certification

The LCN 4040XP Series Door Closer represents the gold standard in commercial door hardware, featuring exceptional durability with 10 million cycle certification - five times the ANSI Grade 1 standard of 2 million cycles. This surface-mounted closer accommodates interior doors up to 5'0" and exterior doors up to 4'0" with adjustable spring sizes 1-6. Constructed with a high-strength cast-iron cylinder, 1-1/2" diameter piston, and forged steel arm, it meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements while providing UL and cUL listing for self-closing doors.

Professional Features & Benefits

Door Size Compatibility: Non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0" with spring force adjustment from sizes 1-6.
Exceptional Durability Rating: Independently certified to 10 million cycles - five times the Grade 1 standard for unmatched longevity in high-traffic commercial applications.
Heavy-Duty Construction: Cast-iron cylinder with full-complement bearing, double heat-treated steel pinion, and forged steel arm provide superior strength and reliability.
Grade 1 Certification: Meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements with UL and cUL listing for code compliance.
All-Weather Performance: Liquid X fluid and heat-treated internal components ensure consistent operation in demanding environmental conditions.
Easy Field Adjustment: Patented LCN Green Dial spring force indicator eliminates guesswork for precise in-field adjustability and optimal performance tuning.
Universal Installation: Non-handed design with peel-n-stick templates ensures quick and accurate installation while accommodating various door configurations.
Manufacturer Warranty: 30-year limited warranty provides exceptional coverage and confidence in long-term performance and reliability.

Technical Specifications

ADA Compliant: Yes
BAA Qualified: Yes
Closer Size: 1
Closer Size: 3
Closer Size: 6
Closer Size: 2
Closer Size: 4
Closer Size: 5
Commercial/Residential: Commercial
Cover Type: Plastic/Metal
Delay Function: Yes
Department: Door Hardware
Duty Level: Heavy Duty
Fluid Type: All-Weather
MAP Policy: Yes
Mounting Detail: Surface - Hinge Mount(Pull Side), Top Jamb Mount(Push Side), Parallel Arm Mount(Push Side)
Mounting Hole Pattern: 2-1/4" x 5"
Mounting Location: Pull Side
Product Category: Door Controls
Product Group: Door Controls
Product Model: 4040XP
Product Subgroup: Door Closers - Surface Mounted
Product Substrate: Iron
Product Type: Surface Mounted Door Closers
Series: 4000 Series
Subcategory: Surface Mounted Closers
Warranty: 30 Year

Professional Applications

Educational Facilities and Schools
Healthcare Institutions and Hospitals
Commercial Office Buildings
Government and Municipal Buildings
Industrial and Warehouse Facilities
Multi-Tenant Residential Properties
High-Traffic Retail Establishments

Why Choose LCN Quality?

LCN 4040XP door closers deliver professional-grade reliability with cast-iron construction and forged steel components rated for 10 million cycles - well above industry standards. The 30-year limited warranty and extensive abuse testing demonstrate LCN's commitment to long-term performance. Engineered for demanding commercial applications where dependable operation and low lifecycle costs are essential, the 4040XP represents an exceptional investment in decades of reliable door control.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Series:: 4000 Series
Duty Level:: Heavy Duty
ADA Compliant:: Yes
BAA Qualified:: Yes
Mounting Hole Pattern:: 2-1/4" x 5"
Warranty:: 30 Year
Closer Size:: 1
Mounting Detail:: Surface - Hinge Mount(Pull Side), Top Jamb Mount(Push Side), Parallel Arm Mount(Push Side)
Mounting Location:: Pull Side
Subcategory:: Surface Mounted Closers
Product Group:: Door Controls
Product Subgroup:: Door Closers - Surface Mounted
Product Type:: Surface Mounted Door Closers
Fluid Type:: All-Weather
Commercial/Residential:: Commercial
MAP Policy:: Yes
Closer Size:: 2
Closer Size:: 3
Closer Size:: 4
Closer Size:: 5
Closer Size:: 6
Product Model:: 4040XP
Cover Type:: Plastic/Metal
Delay Function:: Yes
Product Category:: Door Controls
Product Substrate:: Iron
Department:: Door Hardware

LCN 4040XP-REG RH RAL9003 – Frequently Asked Questions

1) Will the LCN 4040XP door closer work on an exterior door, or is it interior only?

Both, within limits. The 4040XP is a non-sized closer with spring power adjustable across sizes 1 through 6, which covers interior doors up to 5 feet wide and exterior doors up to 4 feet wide. Exterior openings get the lower width ceiling because wind load and stack pressure fight the closer. If you have an exterior door wider than 4 feet, you are outside what the 4040XP is rated to control.

2) Do I have to order the LCN 4040XP handed for a left hand or right hand door?

The 4040XP cylinder itself is non-handed and the same unit installs on either swing. Handing is called out at the order stage on this white RAL9003 build, so you pick LH or RH, but the closer body does not change with it. Both options ship with the regular arm.

3) Can the LCN 4040XP be mounted on the push side of the door?

Yes, three ways total. The 4040XP mounts hinge (pull) side, top jamb on the push side, or parallel arm on the push side. Parallel arm is the usual pick when you need the closer body out of the way of traffic or the door swings out into a corridor. The mounting hole pattern is 2-1/4 by 5 inches.

4) Does the LCN 4040XP meet ADA opening force requirements?

Yes. The 4040XP is ADA compliant and meets the reduced opening force requirement, which is what lets you dial the spring down on an accessible interior opening. It is also ANSI/BHMA A156.4 Grade 1 and carries UL and cUL listing for self-closing doors, so it holds up on a fire-rated opening inspection as well.

5) I only need a closer on a light interior office door, not a 10 million cycle unit - what is a lighter alternative?

For a light interior door, the BEST SL6000 is a light duty Grade 1 surface mounted closer with adjustable spring sizes, and the Norton Rixson 160 Series is a light duty Grade 1 light commercial surface closer with an adjustable spring. Arrow's DCN325 is a light duty Grade 1 surface closer with adjustable spring size 1-6, so it still spans the same spring range as the 4040XP's sizes 1 through 6 while sitting in a light duty body. Falcon SC61A covers light to medium duty at Grade 1. The 4040XP is a heavy duty closer built for high-traffic commercial openings; these are the lighter-duty equivalents.

6) The door needs to stay open on its own - which closer should I order instead of a 4040XP regular arm?

For hold open, the Accentra 51 Series is an industrial door closer with a tri-packed hold open arm and adjustable size 1-6, and the Orca Hardware BHDC1958HO/PA comes with a tri-packed hold open arm and a parallel bracket for doors 1-3/4 inch thick. Stanley Security A45-501HL is supplied with a long hold open arm as standard in a top jamb configuration. The LCN 4040XP in white is supplied with a regular arm in left hand and right hand versions, so a hold open function has to come from a different arm or a different closer.

7) Which door closers look like a 4040XP substitute but are not the same class of unit?

Two things in the same aisle are not closers at all: the Arrow DCN500DP is a parallel drop plate for the DCN500, a mounting bracket rather than a closer body, and the Stanley Security 327 is a heavy wardrobe pivot for doors 1-3/8 inch or 1-3/4 inch up to 150 pounds. Among real closers, the Cal-Royal 400 Series is a Grade 2 commercial hydraulic closer and the Falcon SC91A is a light duty Grade 3 surface-mount closer - both sit below the Grade 1 rating the LCN 4040XP carries. If the spec calls for ANSI/BHMA A156.4 Grade 1, those two will not satisfy it.

8) Which LCN closer holds up in a school or hospital corridor that sees constant traffic?

The 4040XP is the one built for that duty. It is independently certified to 10 million cycles, five times the 2 million cycle ANSI Grade 1 minimum, on a cast iron cylinder with a 1-1/2 inch piston, full complement bearing, double heat treated steel pinion and a forged steel arm. That is the construction that survives an entrance vestibule or a classroom wing rather than a low-traffic office door.

9) Is the LCN 4040XP Buy American compliant for a federal or municipal job?

Yes, the 4040XP is BAA qualified, which is what a government or municipal spec normally asks for. It is a commercial-rated closer, not a residential one, so it also clears the duty language those specs usually carry.

10) Will an LCN 4040XP keep working in an unheated warehouse or a cold entrance?

It should. The 4040XP runs all-weather Liquid X fluid with heat treated internals, so the closing speed does not swing the way a standard fluid does between a January morning and an August afternoon. That is the difference between a door that slams in summer and drags shut in winter and one you set once.

11) How do I set the spring power on an LCN 4040XP once it is on the door?

You turn it up or down in the field, no swapping units. The 4040XP is non-sized and adjusts across spring sizes 1 to 6, and LCN's Green Dial spring force indicator shows you where you are set so you are not counting turns. Practical result: one part number covers a light interior office door and a heavy exterior entrance, and you can back it off to hit ADA force on an accessible opening.

12) Does the LCN 4040XP have delayed action for an accessible or hospital door?

Yes, the 4040XP offers a delay function, which is what you want on a door someone in a wheelchair, on crutches, or pushing a gurney or cart has to clear. Delay holds the door near open before the main close sweep starts, giving them time to get through the opening.

13) What is the difference between the LCN 4040XP and lighter commercial closers like the Falcon SC91A or Arrow DC314?

Duty level, and it decides the job. The 4040XP is heavy duty with a cast iron cylinder and 10 million cycle certification. The Falcon SC91A is a light duty Grade 3 cast aluminum closer, and the Arrow DC314 in the DC300 Series is light duty Grade 1. Light duty is fine on a low-traffic interior office or closet door. On a main entrance, a classroom wing, or anywhere the door cycles all day, the cast iron unit is what stays in service.

14) What other heavy-duty Grade 1 surface closers could I use instead of the LCN 4040XP?

Several sit in the same class. The Falcon SC71A Series is heavy duty Grade 1. BEST offers the HD8000 Series and the extra heavy duty EHD9000 Series, both Grade 1 with spring sizes 1 to 6 on the EHD9000. Sargent's 1431 Powerglide and the cast iron 281 Series are both heavy duty Grade 1. Norton Rixson's 1600BC Series is heavy duty Grade 1 and aimed at aluminum storefront. Any of them is a reasonable swap on a commercial opening; check the existing mounting holes, since the 4040XP pattern is 2-1/4 by 5 inches and the others will not necessarily match.

15) I need the door to stay open on its own. Does the LCN 4040XP with the regular arm do that?

No. The regular arm on this 4040XP is a closing arm, not a hold open, so the door returns every time. If you want the door to park open, you need a hold open arm. In the same class, the Accentra 51 Series ships with a tri-packed hold open arm, and the Orca BHDC1958 is available in a hold open version for 1-3/4 inch doors. Note that hold open is generally not permitted on a fire-rated opening unless it releases on alarm.

16) My storefront door is aluminum with a narrow top rail. Is the LCN 4040XP the right closer?

Maybe not directly. The 4040XP mounts to a 2-1/4 by 5 inch hole pattern, and a narrow aluminum top rail may not give you that much flat surface, which is where installers reach for a drop plate or shim. If the opening is aluminum storefront, the Norton Rixson 1600BC Series is a heavy duty Grade 1 closer built specifically for storefront, and the Falcon SC61A is a lighter cast aluminum option in that family of applications. Measure your rail before you commit either way.

17) What is an alternative to the LCN 4040XP with a slide track arm instead of an exposed regular arm?

The Corbin Russwin DC5230 is a Grade 1 surface door closer supplied with a slide track arm as standard for pull side mounting on 1-3/4 inch doors, and the Dorma 8916-JT is a Grade 1 heavy duty surface closer with a jamb track, frame face mounting on the pull side and adjustable size 1-6. Dormakaba's 8616 AF86P is a Grade 1 heavy duty closer with a flat non-hold-open arm in a tri-pack. The 4040XP in the RAL9003 white finish ships with a regular arm and mounts hinge side pull, top jamb push, or parallel arm push.

18) I need a barrier-free ADA closer for a school corridor - what compares to the LCN 4040XP?

The Cal-Royal 500S is a Grade 1 barrier free door closer with adjustable back-check, and the Cal-Royal N900PBF is a Grade 1 barrier free hydraulic surface closer. The Calibre CA4001 is a Grade 1 hydraulic closer with adjustable spring tension for ADA, and the Imperial USA TC4300 is a Grade 1 heavy duty ADA closer in size 1-6. The LCN 4040XP is listed ADA compliant with adjustable closer sizes 1 through 6, so all four land in the same barrier-free adjustable-spring territory.

19) What is a medium-duty step down from the LCN 4040XP for moderate-traffic interior doors?

Sargent's 1131 is a Grade 1 adjustable surface door closer built for medium-traffic commercial applications, and the Sargent 1331 is a medium duty Grade 1 closer with a universal aluminum body. Norton Rixson 8501A is a medium duty Grade 1 tri-mount surface closer with an adjustable size 1-6 spring, and the Norton Rixson 1601P is a medium duty Grade 1 tri-mount closer with 180 degree swing. Dormakaba 7414 is a medium duty Grade 1 closer in size 1-4. Each stays Grade 1 while stepping below the 4040XP's heavy duty rating.

20) I want one closer I can mount regular, parallel or top jamb on different doors in the building - which brands ship tri-mount?

The Dexter DCH1000 is a Grade 1 surface closer that is tri mount for regular, parallel or top jamb mounting and comes with a full cover; the Dexter DCH4000, DCL2000 and DCM1000 are Grade 1 tri mount closers as well. Arrow DCN314 is a Grade 1 surface closer with regular and parallel arm in a tri-pack, adjustable spring size 1-4. The LCN 4040XP covers the same three positions - hinge mount on the pull side, top jamb on the push side, and parallel arm on the push side - and uses a 2-1/4 inch by 5 inch mounting hole pattern.

21) Which other closers offer delayed action like the LCN 4040XP?

The Orca Hardware BHDC1958DA/PA is a delayed action door closer with a regular arm and parallel bracket, tri-packed non-hold open, for 1-3/4 inch doors, and the Orca BHDC2011DA/PA is the same delayed action arrangement in the BHDC2011 series. The LCN 4040XP carries a delay function as well, so delayed action for a slow-moving occupancy can be met from either direction.

22) Is there a heavy-duty alternative to the LCN 4040XP for an aluminum storefront door?

The Norton Rixson 1600 Series aluminum storefront door closer is a heavy duty Grade 1 unit with tri-style mounting, built specifically for aluminum storefront openings. The Design Hardware 416 Series and 116 Series are heavy duty closers with tri-packed non-hold open arms, and the 316 Series is a medium to heavy duty closer supplied with a cover. The LCN 4040XP is a heavy duty commercial closer that mounts hinge pull side, top jamb push side, or parallel arm push side.

23) What are the Corbin Russwin equivalents if my spec standardizes on that brand instead of LCN?

Corbin Russwin offers the DC3200, a Grade 1 surface mounted closer with a regular arm for 1-3/4 inch doors, and the DC6200 and DC8200, both Grade 1 surface closers with a double lever regular arm and pull side mounting for 1-3/4 inch doors. The DC5230 is the slide track arm version. The LCN 4040XP is a Grade 1 closer supplied with a regular arm and is listed for pull side mounting, so the DC3200 sits closest in arm style and mounting location.

24) Which closers other than the LCN 4040XP adjust across spring sizes 1 through 6?

Spring size 1-6 adjustment shows up on the Accentra 51 Series and the Accentra 2701 Series architectural closer, the BEST EHD9000 extra heavy-duty closer, the Arrow DCN325, the Dorma 8916-JT, the Norton Rixson 8501A, and the Imperial USA TC4300 heavy duty ADA closer. The LCN 4040XP adjusts across closer sizes 1, 2, 3, 4, 5 and 6 as well, so any of these can cover a mixed set of door widths from one part number instead of stocking a sized unit per opening.

25) If I only need a narrow spring range on a small interior door, what is a simpler option than a size 1-6 closer?

The Accentra 1101BF is an industrial door closer with adjustable spring sizes 1-4 and a tri-packed non-hold open arm, the Arrow DCN314 is a Grade 1 surface closer with adjustable spring size 1-4, the Dormakaba 7414 is a medium duty Grade 1 closer in size 1-4, and the Calibre CA9901 is a Grade 1 tri-pack arm ADA surface mount closer in size 2-5. The LCN 4040XP adjusts across sizes 1 through 6, which is more range than a small single interior door needs.

26) What is the difference between the LCN 4040XP and the Sargent 1431 or BEST HD7000 when picking a closer for a busy entrance?

The Sargent 1431 Powerglide is a heavy duty Grade 1 surface closer with adjustable spring power, putting it in the same duty class as the 4040XP, which is a heavy duty commercial closer certified to 10 million cycles - five times the ANSI Grade 1 standard of 2 million. The BEST HD7000 is a medium duty Grade 1 surface closer with adjustable spring power and backcheck control, so it sits a duty class below both. For a high-traffic entrance the 1431 and 4040XP are the like-for-like pair.

27) I need a closer for a federal project with Buy American requirements - how does the LCN 4040XP compare to the alternatives on that point?

The LCN 4040XP is BAA qualified and meets ANSI/BHMA A156.4 Grade 1 with UL and cUL listing for self-closing doors, which is the combination a government or municipal specification usually asks for. Among the heavy-duty Grade 1 peers you would otherwise weigh, the Sargent 281 Powerglide cast iron closer, the BEST HD8000, and the Falcon SC71A are all heavy duty Grade 1 surface closers, so the deciding factor on a federal opening comes down to the qualification and listing rather than the duty class.

28) Will the white finish on the LCN 4040XP match the other closers in my building?

The finish here is RAL9003, a specified white paint reference rather than a house color name, so it repeats exactly the next time you order. That matters on a fleet: a property manager standardizing a building on white closers gets the same white on door 40 as on door 1. Both the left hand and right hand builds come in RAL9003 with the regular arm, and the cover is plastic and metal.

29) Which Grade 1 closers besides the LCN 4040XP come with a full cover rather than a bare cylinder?

The Dexter DCH1000 is a Grade 1 tri mount surface closer supplied with a full cover, and the Design Hardware 316 Series is a heavy duty closer sold with a cover. By contrast the Arrow DCN314 and DCN325 are Grade 1 surface closers supplied less cover. The LCN 4040XP uses a plastic/metal cover, so if you are matching covered units across a corridor the Dexter and Design Hardware options keep the same look.
