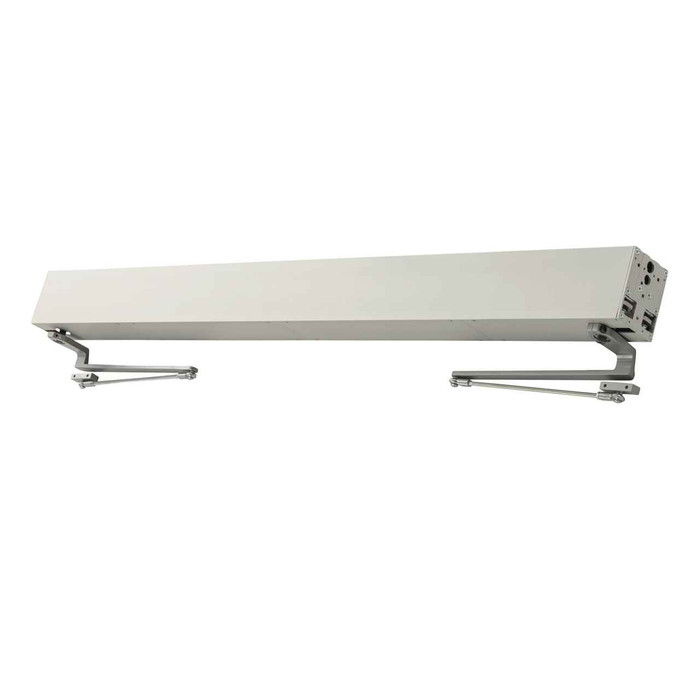

Copy of LCN 9553 Senior Swing Electromechanical Surface-Mounted Automatic Double Door Operator (Simultaneous)

LCN 9553 Senior Swing Electromechanical Automatic Double Door Operator with ADA Compliance and 120V/240V Operation

(No reviews yet) Write a Review

Model: 9553-REGARM2-HDR2-628
$11,299.00
$7,365.71
Selected Finish is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11,299.00
$7,365.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 9553 Senior Swing Electromechanical Automatic Double Door Operator with ADA Compliance and 120V/240V Operation

Professional ADA-Compliant Automatic Door Solution

The LCN 9553 Senior Swing is a heavy-duty electromechanical automatic double door operator designed for high-traffic commercial applications. This surface-mounted operator provides simultaneous double door operation with customizable header lengths from 52" to 98" in 1/8" increments, adjustable hold time of 1 to 30 seconds, and meets ADA requirements with UL listing and ANSI/BHMA 156.19 compliance. The unit features 120V/240V operation with microprocessor control and motor gearbox driving mechanism engineered for demanding commercial environments.

Professional Features & Benefits

  • Customizable Header Dimensions: Header lengths available from 52" to 98" in 1/8" increments for precise fit to door opening requirements and flexible installation options.
  • Flexible Power Options: 120V/240V operation provides versatility for various electrical system requirements and installation configurations.
  • Heavy-Duty Construction: Electromechanical unit with microprocessor control and motor gearbox driving mechanism engineered for high-abuse and high-traffic commercial areas.
  • Dual Operation Modes: Automatic activation for wheelchair access combined with manual operation capability for regular pedestrian traffic flow and accessibility compliance.
  • Push 'N Go Non-Switch Activation: Automatically takes over when pedestrian manually opens door to 5", then holds door fully open for programmed time delay.
  • Power Boost Technology: Provides additional closing force near latch position for reliable operation in severe wind conditions and challenging environments.
  • Adjustable Hold Time: Programmable 1 to 30 second hold time with digital keypad control for application-specific timing requirements.
  • ADA Compliance Certification: UL listed and meets ANSI/BHMA 156.19, ADA, and ANSI A117.1 accessibility requirements for commercial installations.
  • Manufacturer Warranty: 2 Year limited warranty for added confidence and protection in demanding commercial applications.

Technical Specifications

  • ADA Compliant: Yes
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Finish Type: Plated
  • Mounting Detail: Surface - Surface (Pull Side/Push Side)
  • Mounting Location: Pull Side
  • Mounting Location: Push Side
  • Mounting Method: Surface Mount
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 9553
  • Product Subgroup: Power Operators
  • Product Type: Power Operators - Electromechanical
  • Product Voltage: 120V/240V
  • Series: 9550 Series
  • Subcategory: Power Operators - Electromechanical
  • Warranty: 2 Year

Professional Applications

  • Commercial Building Main Entrances
  • Healthcare Facility Patient Access Points
  • Educational Institution Accessibility Compliance
  • Retail Store Customer Entrances
  • Government and Municipal Building Access
  • Multi-Tenant Residential Common Areas
  • Industrial Facility Personnel Entrances

Why Choose LCN Quality?

LCN Senior Swing automatic door operators deliver professional-grade reliability with electromechanical construction and microprocessor control engineered for high-abuse and high-traffic commercial environments. Backed by a 2 Year limited warranty and certified to meet ADA, UL, and ANSI standards, this operator provides dependable automatic door operation where accessibility compliance and reliable performance are essential.

Product Specs

Series:
9550 Series
ADA Compliant:
Yes
BAA Qualified:
Yes
Mounting Detail:
Surface - Surface (Pull Side/Push Side)
Warranty:
2 Year
Mounting Location:
Pull Side
Subcategory:
Power Operators - Electromechanical
Product Group:
Door Controls
Product Subgroup:
Power Operators
Product Type:
Power Operators - Electromechanical
Finish Type:
Plated
Commercial/Residential:
Commercial
Electronic:
Yes
Mounting Location:
Push Side
Product Model:
9553
Product Voltage:
120V/240V
Mounting Method:
Surface Mount
Product Category:
Door Controls
Department:
Door Hardware

LCN 9553-REGARM2-HDR2-628 – Frequently Asked Questions

1) Will the LCN 9553 operate a pair of doors, or do I need two separate operators?
One 9553 Senior Swing runs both leaves of a pair simultaneously from a single surface-mounted header. That's what the 9553 is: an electromechanical double door operator, ordered with a double door header sized 52 to 98 inches. You pick the header length to span the full opening, not each leaf. For a single door you'd want a single-door operator instead.
2) Which arm do I need for the LCN 9553, regular or long?
Arm choice follows how the operator sits relative to the door. The 9553 offers a regular arm at 2-3/4 inches, a long arm at 12-1/4 inches, a standard arm assembly with track roller at 2-3/4 inches, and a double egress configuration pairing one regular and one standard arm. The long arm covers openings where the header stands off further from the door face; the track roller arm is the pull side sliding-track setup. Get the reveal at the frame measured before you commit, because the arm and the header ship together as one configuration.
3) Does the LCN 9553 work on a double egress pair where the leaves swing opposite ways?
Yes, there's a dedicated double egress arm configuration that combines one regular arm and one standard arm to handle leaves swinging in opposite directions. It ships with a double door header in the 60 to 98 inch range, so your minimum opening width is a little larger than the 52 inch floor on the other arm configurations. This is the setup for a cross-corridor pair in a hospital or school.
4) Do I have to specify handing when ordering the LCN 9553 Senior Swing?
Handing is required on every 9553 order, left hand or right hand. Stand outside the opening, on the side the door swings away from: hinges on your left is left hand. Get it wrong and the arm and header drilling land on the wrong side of the opening. Handing is specified separately from the arm and header configuration, so both have to be right on the same order line.
5) Is the LCN 9553 ADA compliant for a barrier-free entrance?
The 9553 is UL listed and meets ANSI/BHMA 156.19, ADA, and ANSI A117.1 accessibility requirements. It's also BAA qualified, which matters if you're buying for a federally funded project with domestic sourcing language in the spec. For a facility standardizing accessible entrances, that combination covers both the accessibility citation and the procurement requirement on the same line item.
6) What voltage does the LCN 9553 automatic door operator need at the header?
120V/240V. The electrician runs line voltage to the header, not a low voltage transformer feed, and the same unit handles either supply, so a 240V facility doesn't need a different part number. Coordinate the circuit and the conduit stub into the header location before the header goes up, because it's a surface-mounted unit and there's no fishing power in afterward without opening the wall.
7) Does the LCN 9553 still open by hand if the power goes out?
Manual operation is built in alongside the automatic mode, so pedestrians push the door open normally whether the operator is powered or not. The automatic cycle is there for wheelchair access and for anyone hitting the actuator; regular traffic just walks through. That dual mode is also why Push 'N Go works: pull the door open manually to 5 inches and the operator takes over and carries it to full open.
8) Can the LCN 9553 mount on the pull side or does it have to go push side?
Both. The 9553 header surface mounts on either the pull side or the push side of the opening, which is why the arm configuration is a separate ordering decision from the header. Nothing gets concealed in the frame or the transom, so it retrofits onto an existing opening without cutting the header or reworking the frame.
9) How long can I set the door to stay open on an LCN 9553?
Hold time is adjustable from 1 to 30 seconds through the digital keypad on the operator, so the maintenance staff can retime it in the field without a laptop or a service call. Short settings suit a busy retail entrance; a longer hold suits a patient access point or anywhere a wheelchair or a cart needs the extra seconds through the opening.
10) Will an automatic operator hold a door shut in a windy entrance?
The 9553 has Power Boost, which adds closing force near the latch position specifically for severe wind conditions. That's the failure mode on exposed entrances: the door drifts back and never latches. If you've had an existing operator leave the doors unlatched in a gust, that's the feature that addresses it.
11) Should I use a heavy duty operator like the LCN 9553 or a low energy operator?
The 9553 Senior Swing is the electromechanical, microprocessor-controlled, motor gearbox unit built for high-abuse and high-traffic commercial openings, and it's rated commercial rather than residential. If your opening is a main entrance, a hospital corridor, a school, or a retail door cycling all day, that's the class of unit you want. A light-duty low energy operator on a door like that gets replaced. LCN publishes a Choosing the Right Automatic Operator chart if you're weighing the options across the line.
12) What finishes does the LCN 9553 header come in, and will it match my storefront?
Two anodized finishes: 628 aluminum anodized and 710 dark bronze anodized, and both are available across every arm and header configuration. Those are the two standard storefront colors, so the header lines up with clear or bronze anodized aluminum framing on most commercial entrances. Both are plated finishes on the header assembly.
