LCN 9542 Senior Swing Electrom...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$7,219.00
$4,647.00

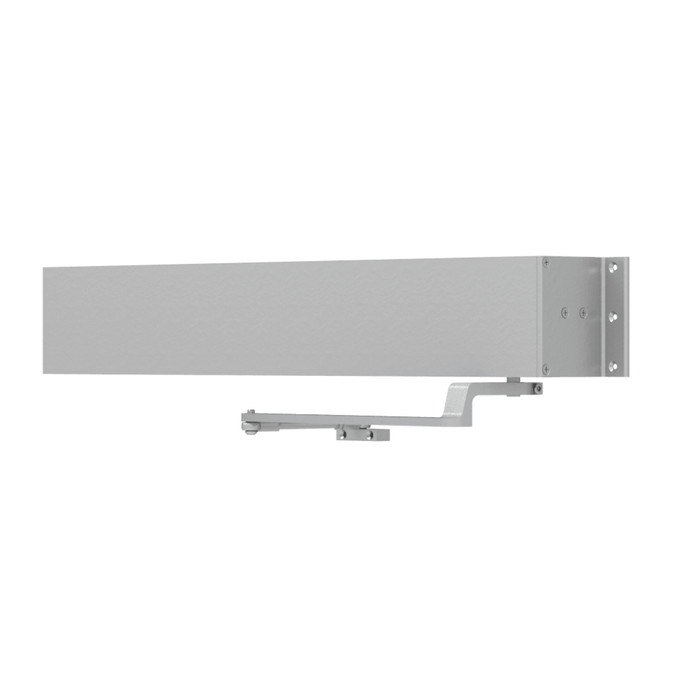

LCN 9542 Senior Swing electromechanical automatic door operator, surface-mounted push side, aluminum anodized finish (628), shown with regular arm assembly

LCN 9542 Senior Swing Electromechanical Automatic Door Operator 120V/240V Surface-Mounted Push Side

(No reviews yet) Write a Review

Model: 9542-REG HDR RH 628
$7,219.00
$4,647.00
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7,219.00
$4,647.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN Senior Swing 9542 Electromechanical Automatic Door Operator — 120V/240V, Surface-Mounted Push Side

The LCN Senior Swing 9542 is a heavy-duty electromechanical automatic door operator built for commercial and institutional swinging doors. It runs on 120V/240V power, installs surface-mounted on the push side, and delivers smooth, controlled door movement for high-traffic ADA-required openings. ADA compliant and Buy American Act (BAA) qualified, it is a direct fit for government, healthcare, education, and multi-family projects where accessibility compliance and domestic sourcing documentation are required.

Key Features

  • Dual Voltage (120V/240V): Flexible power input accommodates a wide range of commercial electrical configurations without field modification.
  • Surface-Mounted Push-Side Installation: Straightforward mounting on the push face of the door frame; accessible for service without removing the door.
  • Electromechanical Drive: Motor-driven operation with manual override capability — door remains functional during a power interruption.
  • ADA Compliant: Meets ANSI/BHMA A156.19 low-energy power-operated door requirements for opening force and timing.
  • BAA Qualified: Satisfies Buy American Act requirements for federally funded and government projects.
  • 2-Year Manufacturer Warranty: Standard LCN commercial warranty covering parts and workmanship.
  • 9540 Series Platform: Shares service parts and installation templates with the broader LCN 9540 Series for simplified facility standardization.

Technical Specifications

  • Model: 9542
  • Series: 9540 Series
  • Product Voltage: 120V/240V
  • Mounting Method: Surface Mount
  • Mounting Location: Push Side
  • Mounting Detail: Surface – Push Side
  • Finish Type: Plated (628 Aluminum Anodized, 710 Dark Bronze Anodized)
  • ADA Compliant: Yes
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Warranty: 2 Year

For door weight capacity, maximum door width, opening force (lbf), cycle speed, and full wiring diagrams, refer to the LCN Electromechanical Automatic Operators Data Sheet linked in the Documents section below.

Typical Applications

  • Healthcare facilities and medical office buildings
  • Government and municipal buildings (BAA-required projects)
  • Educational institutions and K–12 schools
  • Multi-family residential common entries and lobbies
  • Commercial office building main entrances
  • High-traffic institutional openings requiring ADA compliance

Ordering Information

Select your Arm (Regular or Long), Header size (Single Door HDR 33"–48" or Double Door HDR2 48.125"–98"), Handing (Left Hand or Right Hand), and Finish (628 Aluminum Anodized or 710 Dark Bronze Anodized) using the options above. Consult the LCN 9540 Series catalog section or the Installation Templates Index (linked below) to confirm header and arm selection for your opening.

Product Specs

Series:
9540 Series
ADA Compliant:
Yes
BAA Qualified:
Yes
Mounting Detail:
Surface - Surface (Push Side)
Warranty:
2 Year
Mounting Location:
Push Side
Subcategory:
Power Operators - Electromechanical
Product Group:
Door Controls
Product Subgroup:
Power Operators
Product Type:
Power Operators - Electromechanical
Finish Type:
Plated
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
9542
Product Voltage:
120V/240V
Mounting Method:
Surface Mount
Product Category:
Door Controls
Department:
Door Hardware

LCN 9542-REG HDR RH 628 – Frequently Asked Questions

1) What do I have to specify when ordering an LCN 9542 Senior Swing operator?
Four choices plus a measurement. Arm: Regular Arm (REGARM) or Long Arm (LONG). Header: Single Door 33" to 48" (HDR) or Double Door 48.125" to 98" (HDR2). Handing: left hand or right hand. Finish: 628 aluminum anodized or 710 dark bronze anodized. You also enter the actual header size in inches, anywhere from 33 to 98, so the header ships cut for your opening. Every one of those combinations is buildable, all 16 of them.
2) Does the 9542 door operator have to be handed, or can it be field reversed?
Handed. The 9542 is built left hand or right hand and you pick it at order time, so establish handing before you buy. Standing outside the door: hinges on the left and the door swings away from you is left hand; hinges on the right swinging away is right hand. Because this operator surface mounts on the push side, you are standing on the side the door swings away from when you call it.
3) I need an ADA power operator for a federally funded building. Does the LCN 9542 qualify?
On both counts. The 9542 Senior Swing operator is ADA compliant and Buy American Act qualified, which is the pair of boxes a government or municipal project usually has to check at submittal. That combination is why it lands in federal, healthcare, education, and multi-family work.
4) Is the 9542 mounted on the pull side or the push side of the door?
Push side only. The 9542 surface mounts on the push face at the head of the opening, which means the operator body sits on the side the door swings away from. If your opening requires the operator on the pull side, this is the wrong configuration and you need a pull side model from the LCN 9540 Series instead. Surface mounting also keeps the unit serviceable without pulling the door.
5) I have a pair of doors on a lobby entry. Can one LCN 9542 header cover both leaves?
The double door header (HDR2) spans 48.125 to 98 inches, so it covers a pair of doors across the full opening rather than a single leaf. Handing and arm are still ordered per operator, so a pair that opens both leaves needs an operator for each. Confirm the header length against your frame and enter that size in inches when you order.
6) Regular arm or long arm on an LCN 9542 automatic operator, which one do I need?
It comes down to the reveal at your opening, meaning the setback from the face of the door to the face of the header. The 9542 is ordered with either a regular arm (REGARM) or a long arm (LONG), and the arm has to reach across that reveal. Measure the reveal on the actual frame before you pick. The LCN Installation Templates Index and the 9540 Series catalog section give the arm selection by reveal for both push side mountings, offset pivot and butt hinge center pivot.
7) What happens to the door if the power goes out on an LCN 9542 operator?
The door still works. The 9542 is an electromechanical, motor driven operator with manual override, so during a power interruption it functions as a manually pushed door rather than locking the opening out of service. That is the behavior a facility manager needs to hear before putting a powered operator on a main entry.
8) Can I run an LCN 9542 on 240 volt service, or does it need a dedicated 120V circuit?
Either. The 9542 Senior Swing operator takes 120V/240V input as supplied, so the electrician can land it on whichever service the building already has at that entry without a field modification or a separate power supply variant. Full wiring detail is in the LCN Electromechanical Automatic Operators data sheet.
9) We already have LCN 9540 Series operators in the building. Will a 9542 match them for parts and service?
It will. The 9542 sits on the 9540 Series platform and shares service parts and installation templates with the rest of the family, which is the argument for standardizing a facility on one series: one set of templates for the installers, one parts list for maintenance. Finishes carry across as well, 628 aluminum anodized or 710 dark bronze anodized.
10) Is a low energy operator like the LCN 9542 the right choice, or do I need a full power automatic door?
A low energy operator like the 9542 is the answer where the door is opened on demand by a push plate or a person and has to meet accessibility requirements. It runs slower and at controlled opening force by design, which is what lets it work without the guide rails and presence sensors a full power automatic entrance requires. High volume, hands free retail style entrances are the case for a full power unit. LCN publishes a Choosing the Right Automatic Operator chart that walks the selection.
11) Can the LCN 9542 be installed on a hollow metal frame with butt hinges?
Yes, and it also mounts to an offset pivot opening. LCN publishes top jamb push side installation details for both butt hinge center pivot and offset pivot single door conditions, including notes specific to hollow metal frames. What you need to verify on site first is top rail height, head frame depth, and reveal, since those three govern whether the header and arm land correctly. The templates index carries the dimensions.
12) What finish should I pick to match aluminum storefront doors on an LCN 9542?
628 aluminum anodized is the match for clear anodized aluminum storefront and glass front entries; it is the standard clear satin aluminum finish. 710 dark bronze anodized is the one to order against bronze anodized frames. Both are plated finishes and both are available on every arm, header, and handing combination the 9542 offers.
13) Is the LCN 9542 rated for a high traffic commercial entrance or is it a light duty unit?
Commercial and heavy duty. The 9542 Senior Swing is built for commercial and institutional swinging doors and is specified for high traffic ADA openings, main entrances, hospital corridors, school entries, and multi-family lobbies. It is not a residential product and is not catalogued as one.
