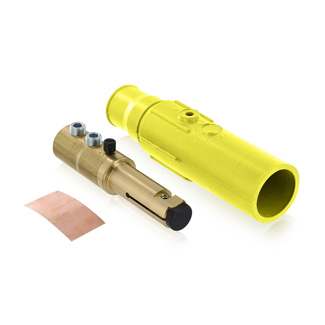

Leviton 17 Series Cam-Type Male Plug, Brass Contact

Leviton 17 Series Cam-Type Male Plug, Brass Contact

The Leviton 17 Series Cam-Type Male Plug is a detachable cam-lok style connector engineered for high-amperage power distribution, featuring a 17 Series taper nose design, a brass contact for reliable conductivity, and a 690 Amp maximum current rating at up to 600 Volt. Built with double set screw termination to accept 350-500MCM AWG conductors, this male plug pairs a durable Santoprene TPV insulating sleeve with a copper wire strain relief for dependable field performance. Ideal for portable cable assemblies, temporary power hookups, and heavy-duty industrial connections where a detachable, serviceable cam-type connector is required.

Key Features

• Cam-Type Configuration: 17 Series taper nose design allows quick, secure mating and unmating for rapid power hookup and breakdown.
• Detachable Contact & Insulator: Separate contact and insulator components simplify field maintenance and component replacement.
• Double Set Screw Termination: Secure double set screw termination accepts 350-500MCM AWG conductors for high-current applications.
• Brass Contact: Brass contact material delivers reliable, low-resistance conductivity under demanding load conditions.
• 690 Amp Maximum Rating: Rated for up to 690 Amp max current, suited to heavy industrial and temporary power distribution.
• 600 Volt Rated: Maximum voltage rating of 600 Volt supports demanding power distribution circuits.
• Santoprene TPV Sleeve: Santoprene TPV sleeve material provides durable insulation and environmental resistance.
• Copper Wire Strain Relief: Copper wire strain relief helps protect the termination from cable pull and flex stress.

Technical Specifications

• Contact Cat No: 17D22-C
• Contact Material: Brass
• Insulator Cat No: 17SDM-Y
• Max Voltage: 600 Volt
• Sleeve Material: Santoprene TPV
• Strain Relief: Copper Wire

Typical Applications

• Industrial Power Distribution Systems
• Portable Power Cable Assemblies
• Temporary Power Hookups
• Entertainment and Event Power Distribution
• Generator and Shore Power Connections

Why Leviton?

Leviton builds the 17 Series cam-type male plug with a brass contact, Santoprene TPV sleeve, and copper wire strain relief to deliver dependable performance in demanding power distribution applications. The detachable contact and insulator design supports easier field servicing, while the 690 Amp and 600 Volt ratings make this connector suited to heavy-duty industrial and temporary power needs.
