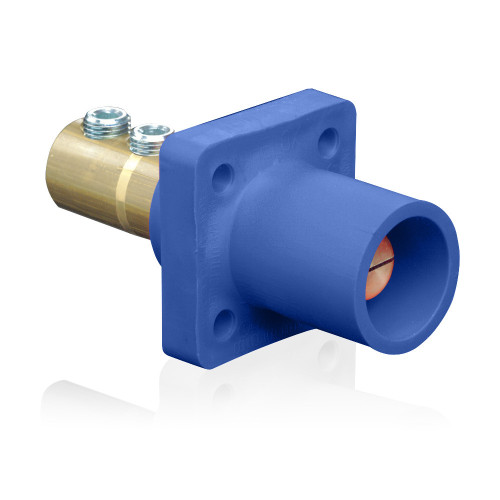

Leviton 17 Series Cam-Type Male Panel Receptacle, 690A Industrial Grade Connector

Leviton 17 Series Cam-Type Male Panel Receptacle, 690A Industrial Grade Connector

(No reviews yet) Write a Review

Model: 17R23-G

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton 17 Series Cam-Type Male Panel Receptacle, 690A Industrial Grade Connector

The Leviton 17 Series Male Panel Receptacle is an industrial-grade cam-type connector engineered for high-amperage power distribution, featuring a 90-degree taper nose configuration, a threaded stud termination, and support for 250-750MCM cable with a 690 Amp rating. Built for demanding temporary power and generator applications, this receptacle mounts directly to equipment panels for fast, reliable single-pole connections rated up to 600 Volt maximum. Its threaded stud design simplifies panel installation while maintaining a secure, low-resistance connection under heavy electrical loads.

Key Features

  • Cable Range: Accommodates 250-750MCM AWG cable for high-capacity power distribution circuits.
  • Current Rating: Rated for 690 Amp continuous service in demanding industrial power applications.
  • 90-Degree Taper Nose: Angled cam-type configuration simplifies cable routing and panel-mounted installation.
  • Threaded Stud Termination: Threaded stud mounting provides a secure, panel-ready connection point.
  • Durable Construction: Brass contacts deliver dependable conductivity and long-term durability under repeated mating cycles.
  • Sleeve Material: Santoprene TPV sleeve construction resists abrasion and environmental wear in industrial settings.
  • Voltage Rating: Rated up to 600 Volt maximum for use in demanding power distribution systems.
  • Industrial Grade: Male panel receptacle design built for durability in temporary power, generator, and portable power distribution applications.

Technical Specifications

  • Product Group: Outlets
  • Product Subgroup: Switches & Receptacles
  • list_batch: LEV-20260731
  • Angle: 90°
  • Amperage: 690A
  • Product Color: Green

Typical Applications

  • Temporary Power Distribution Systems
  • Portable Generator Connections
  • Industrial and Commercial Power Distribution Panels
  • Entertainment and Event Power Distribution
  • Heavy-Duty Cam-Lock Cable Assemblies

Why Leviton?

Leviton engineers its 17 Series cam-type connectors with brass contacts and Santoprene TPV sleeve construction to withstand the demands of high-amperage industrial power distribution. The threaded stud termination and 690 Amp rating make this panel receptacle a dependable choice for professionals who need secure, repeatable connections in temporary and permanent power setups. Choose Leviton for consistent, code-conscious performance in demanding electrical environments.

Manufacturer Resources

Product Specs

Cable Range:
250-750MCM AWG
Connection Type:
Threaded
Contact Material:
Brass
Max Amperage:
690 Amp
Max Voltage:
600 Volt
Sleeve Material:
Santroprene TPV
Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Gender:
Male
list_batch:
LEV-20260731
Material:
Brass
Product Type:
Panel Receptacle
Angle:
90°
Amperage:
690A
Product Color:
Green
