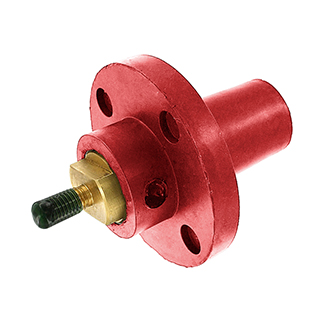

Leviton 17 Series Female Cam-Type Panel Receptacle, 90° Taper Nose, Brass, 690A

Leviton 17 Series Female Cam-Type Panel Receptacle, 90° Taper Nose, Brass, 690A

The Leviton 17 Series Female Cam-Type Panel Receptacle is an industrial-grade power connector engineered for heavy-duty electrical distribution work. Featuring a 90° taper nose design with a threaded stud mount for direct installation on enclosures and distribution panels, this receptacle accommodates a 250-750MCM AWG cable range and is rated for 690 Amp service at up to 600 Volt max, making it well suited for demanding industrial power hookups. Finished in yellow for quick phase identification, the receptacle pairs a brass contact with a Santoprene TPV sleeve for reliable conductivity and durable insulation on the panel, and mates with compatible 17 Series male cam-lock connectors for fast, tool-free power hookups.

Key Features

• Cable Range: Accommodates 250-750MCM AWG cable for high-capacity industrial power connections.
• Durable Construction: Brass contact material delivers strong conductivity and long-lasting performance.
• Sleeve Material: Santoprene TPV sleeve provides flexible, insulated protection at the connection point.
• Cam-Type Connection: Threaded stud, taper nose cam design allows fast, secure mating and unmating of power leads.
• 90° Configuration: Angled panel receptacle design simplifies cable routing on enclosures and distribution panels.
• Panel Mount Design: Threaded stud mount simplifies installation directly onto distribution panels and enclosures.
• Electrical Rating: Rated 600 Volt max and 690 Amp for demanding industrial-grade power distribution.
• Color-Coded Finish: Yellow housing supports quick visual phase identification in multi-conductor setups.

Technical Specifications

• Connection Type: Cam-Type, Threaded Stud
• Angle: 90°
• Amperage: 690A

Typical Applications

• Industrial Power Distribution Systems
• Portable Power Distribution Boxes and Cam-Lock Panels
• Temporary Power Connections for Job Sites
• Generator and Standby Power Hookups
• Entertainment, Event, and Broadcast Power Distribution
• Heavy-Duty Welding and Industrial Equipment Wiring

Why Leviton?

Leviton's 17 Series cam-type panel receptacle combines a brass contact and Santoprene TPV sleeve with an industrial-grade, 690 Amp, 600 Volt rated design built for the rigors of heavy-duty power distribution. The threaded stud, taper nose configuration ensures secure, repeatable panel connections, giving electrical professionals a dependable, code-compliant component for demanding industrial, entertainment, and temporary power installations where fast, reliable cam-lock connections are essential.
