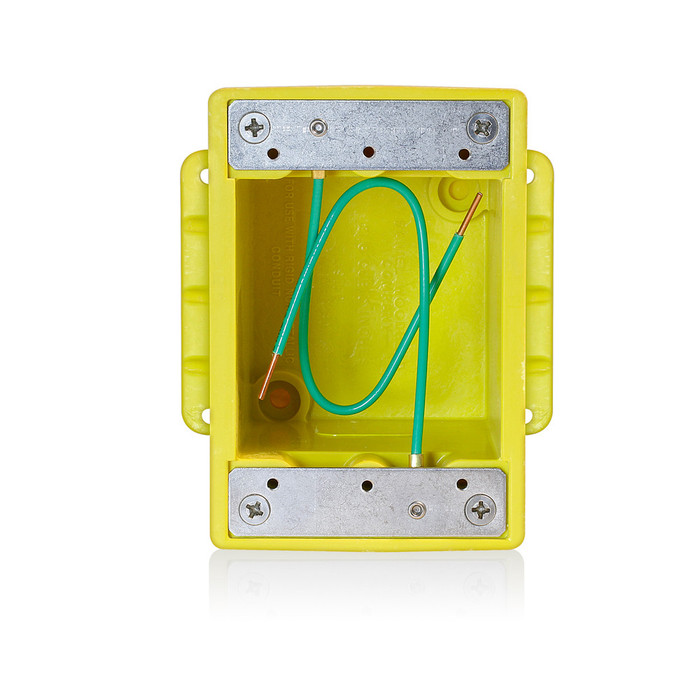

Leviton 1-Gang FD Box, Glass-Filled Polyester

Leviton 1-Gang FD Box, Glass-Filled Polyester

(No reviews yet) Write a Review

Model: 454CR-4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$113.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton 1-Gang FD Box, Glass-Filled Polyester

Leviton's FD Box is a 1-Gang, corrosion-resistant outlet box built from durable Glass Filled Polyester and measuring 4-Inch x 4.6-Inch x 3.16-Inch (listed in source documentation as 4-Inch x 4.65-Inch x 3.16-Inch). Featuring Leviton's Wetguard® design, this FD box is offered in yellow and is available as model 454CR-4-P and model 453CR-4-P, giving installers flexibility when specifying a corrosion-resistant enclosure for demanding wiring device applications. The glass-filled polyester body is engineered to resist the corrosion, moisture, and physical stress that shorten the service life of standard boxes, making this a dependable choice wherever long-term reliability matters.

Key Features

  • Compact Dimensions: Measures 4-Inch x 4.6-Inch x 3.16-Inch for a precise, space-efficient fit in 1-Gang applications.
  • Durable Construction: Molded from Glass Filled Polyester for corrosion resistance, impact strength, and long-term durability.
  • 1-Gang Configuration: Corrosion-resistant FD box design supports single-gang wiring device installations.
  • Wetguard® Design: Leviton's Wetguard® construction is engineered for demanding, corrosion-prone electrical connections.
  • Available Models: Offered as model 454CR-4-P and model 453CR-4-P to suit different installation requirements.
  • Yellow Housing: Distinct yellow housing for fast visual identification on the jobsite.
  • Corrosion-Resistant Build: Glass-filled polyester material stands up to harsh, corrosive environments better than standard metallic boxes.

Technical Specifications

  • Dimensions: 4-Inch x 4.6-Inch x 3.16-Inch (4-Inch x 4.65-Inch x 3.16-Inch per manufacturer description).
  • Material: Glass Filled Polyester.
  • Configuration: 1-Gang, Corrosion-Resistant FD Box.
  • Color: Yellow.
  • Available Models: 454CR-4-P, 453CR-4-P.
  • List Batch: LEV-VARMACHINE-20260803.

Typical Applications

  • 1-Gang Wiring Device Installations
  • Corrosion-Prone Industrial Environments
  • Outdoor and Wet-Location Electrical Connections
  • Commercial and Residential Renovation Projects
  • New Construction Electrical Rough-In
  • Facilities Requiring Corrosion-Resistant Enclosures

Why Leviton?

Leviton is a recognized name in electrical wiring devices, and the FD Box reflects that reputation through its Glass Filled Polyester construction and Wetguard® design. Built for corrosion resistance and consistent performance across model 454CR-4-P and model 453CR-4-P, this FD box is engineered to deliver reliable, long-lasting results for professional electrical installations that demand durability beyond standard enclosures.

Manufacturer Resources

Product Specs

Product Material:
Glass-Filled Polyester
Product Type:
FS/FD Box
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Electrical Boxes

Leviton 454CR-4 – Frequently Asked Questions

1) Will a Leviton 453CR-4 FD box hold up outdoors and in corrosive areas where metal boxes rust out?
That is what it is built for. The body is molded glass-filled polyester rather than metal, so it does not rust the way a cast metal FD box does in wash-down bays, coastal sites, water treatment areas, or chemical storage. Leviton's Wetguard design targets wet-location and corrosion-prone connections. The yellow housing also makes it easy to spot on a jobsite.
2) What size is the Leviton 1-gang FD box and will it fit where I have a standard FD enclosure now?
It measures 4 x 4.6 x 3.16 inches and is a single-gang FD-style box, so it occupies the footprint of a conventional deep 1-gang FD enclosure. Take those three numbers against your existing box and your available depth behind the wall or on the strut before you swap it in.
3) What is the difference between Leviton 453CR-4 and 454CR-4 FD boxes?
Both are the same 1-gang corrosion-resistant glass-filled polyester FD box in yellow, ordered as model 453CR-4-P or 454CR-4-P. They are offered as two catalog models to suit different installation requirements, so specify by the model number your drawing or existing installation calls out rather than assuming they are interchangeable on the order.
4) Can I use this Leviton FD box for a single receptacle or switch device in an industrial plant?
Yes. It is a 1-gang configuration intended for single wiring device installations, and the depth suits FD-style device mounting with conductors and a device in the same enclosure. Typical uses are corrosion-prone industrial areas, outdoor and wet-location connections, new construction rough-in, and renovation work.
5) Is a nonmetallic FD box like this a better choice than a cast aluminum one for a wash-down area?
For wash-down, coastal air, or chemical exposure, a nonmetallic body avoids the pitting and galvanic corrosion that eventually eats cast metal, and it needs no painting or coating upkeep. The trade-off is that a polyester box is not a grounding path, so you carry an equipment grounding conductor through to the device. Where you need the mechanical toughness of metal in a dry indoor plant, a cast FD box is still the usual pick.
6) What color is the Leviton Wetguard FD box, and can I get it in gray?
Yellow is the color it is molded in, both for the 453CR-4-P and the 454CR-4-P. That high-visibility yellow is standard on Leviton's Wetguard corrosion-resistant line and makes the box easy to identify for temporary power and industrial layouts. No gray option is offered on these two models.
