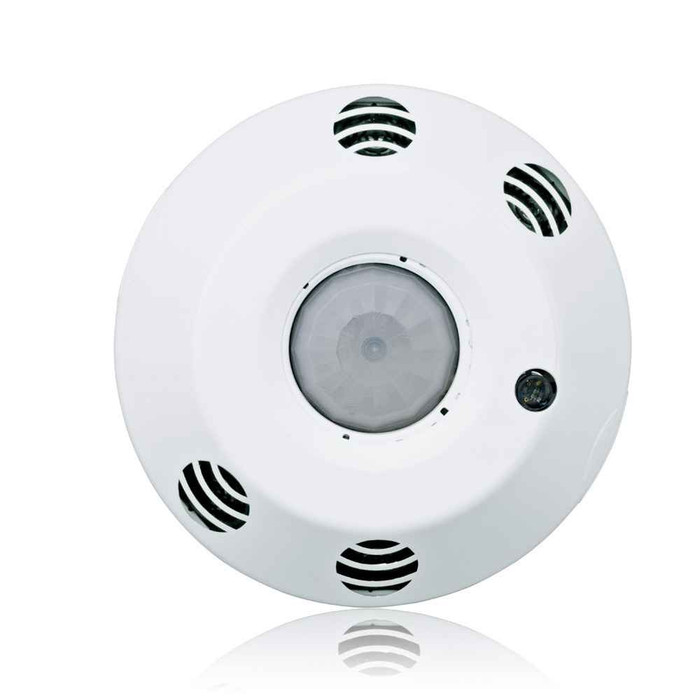

Leviton Provolt Occupancy Sensor, 2-Pole Line Voltage Lighting Control, White

Leviton Provolt Occupancy Sensor, 2-Pole Line Voltage Lighting Control, White

(No reviews yet) Write a Review

Model: O2C10-MDW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Provolt Occupancy Sensor, 2-Pole Line Voltage Lighting Control, White

The Leviton Provolt Occupancy Sensor is a 2-pole, line voltage lighting control built for reliable commercial-grade automatic lighting management. Designed for 8'-12' ceiling installations, this M/T (motion/technology) sensor covers up to 1000 sq ft and adds daylighting and auto-calibration for optimized energy savings. Rated 120-277V AC/CA at 50/60Hz and finished in White, it is UL/CE listed and RoHS & CEC Title 20/24 compliant for code-driven commercial and institutional projects.

Key Features

  • 2-Pole Line Voltage Switching: Delivers dual-pole control of line voltage lighting circuits for multi-level or multi-zone switching applications.
  • Ceiling Mount Height: Engineered for 8'-12' ceiling mounting to provide optimal occupancy detection coverage.
  • M/T Sensor Technology: Motion/technology sensing covers up to 1000 sq ft, combining passive infrared and ultrasonic detection for reliable occupancy sensing.
  • Daylighting: Automatically factors in available ambient daylight to further reduce energy consumption.
  • Auto-Calibration: Self-calibrating operation simplifies commissioning and reduces on-site adjustment time.
  • Universal Voltage Rating: Rated 120-277V AC/CA, 50/60Hz for broad compatibility across commercial electrical distribution systems.
  • Color: Finished in White to blend with standard ceiling and commercial interior finishes.

Certifications & Compliance

  • UL Listed
  • CE Compliant
  • RoHS Compliant
  • CEC Title 20/24 Compliant

Technical Specifications

  • Poles: 2
  • list_batch: LEV-PREEXIST-20260803

Typical Applications

  • Commercial Office Lighting Control
  • Classrooms and Conference Rooms
  • Warehouses and Storage Areas
  • Retail and Hospitality Spaces
  • Energy Code Compliance Retrofits (Title 20/24)

Why Leviton?

Leviton's Provolt line voltage occupancy sensors pair dependable M/T sensing with daylighting and auto-calibration to deliver consistent, code-compliant energy savings in commercial spaces. Backed by UL and CE listings along with RoHS and CEC Title 20/24 compliance, the is built for dependable performance in professional electrical installations where accurate occupancy detection and code adherence are essential.

Manufacturer Resources

Product Specs

Poles:
2
Product Type:
Occupancy Sensor
Listing:
UL, CE, RoHS, CEC Title 20/24
Department:
Electrical
Product Group:
Wiring Devices
Sensor Type:
Ceiling Mount
Country of Origin:
China
Frequency:
50/60 hertz
Product Subgroup:
Switches

Leviton O2C10-MDW – Frequently Asked Questions

1) What ceiling height does the Leviton Provolt occupancy sensor mount at?
It is built for ceilings between 8 and 12 feet. Mount it inside that band and the published coverage holds; go much higher, as in an open warehouse bay, and detection at the floor falls off.
2) Which coverage size of the Leviton O2C sensor should I order for an office or a classroom?
Two coverage options are offered: 1000 sq ft (O2C10-MDW) and 2000 sq ft (O2C20-MDW). A private office, conference room, or standard classroom is normally covered by the 1000 sq ft unit; open office bays, warehouses, and storage areas are where the 2000 sq ft version earns its place. Both are the same white finish and the same 2-pole line voltage device.
3) Will the Leviton Provolt sensor satisfy California Title 24 lighting control requirements?
It is listed as CEC Title 20/24 compliant, along with UL, CE, and RoHS. It also carries daylighting, which factors ambient daylight into the switching, and that combination is what Title 24 retrofit scopes typically call for on a ceiling sensor.
4) Can the Leviton Provolt occupancy sensor run on a 277V circuit in a commercial building?
Yes. The voltage rating spans 120 to 277V AC at 50/60 Hz, so the same part number works on 120V branch circuits and on 277V lighting circuits fed from a 480/277V panel. That means one sensor model stocked across a mixed facility instead of two.
5) What is the closest dual-technology ceiling occupancy sensor to the Leviton Provolt O2C if I need a low-voltage sensor instead of line voltage?
The Leviton Provolt O2C is a line voltage sensor rated 120-277V AC at 50/60 hertz, so it switches the lighting circuit directly through its 2 poles. If your design runs sensors on a low-voltage class 2 bus back to a power pack or relay panel, the Pass & Seymour DT300 Wattstopper dual technology ceiling sensor is the counterpart to look at - it is a 24V, 360 degree ceiling sensor. Both use dual sensing technology at the ceiling; the difference is where the switching happens, so confirm which topology the drawing calls for before substituting.
6) What should I use instead of the Leviton Provolt O2C in a restroom or corridor where motion is partly blocked from the sensor?
Spaces with partitions or offset entries favor ultrasonic sensing, which responds to air movement rather than direct line of sight. The Pass & Seymour UT3053 Wattstopper is a 24V ceiling mount ultrasonic occupancy sensor with 360 degree coverage rated to 2000 square feet - a fit for partitioned rooms. The Leviton Provolt O2C is offered in 1000 and 2000 square foot coverage versions and uses combined passive infrared and ultrasonic M/T sensing while switching line voltage directly through 2 poles, so it also handles obstructed rooms but requires the circuit to be brought to the sensor rather than to a power pack.
7) I need 2000 square feet of ceiling coverage - how does the Leviton O2C20-MDW compare to the Pass & Seymour UT3053?
Both cover 2000 square feet from a ceiling position. The Leviton O2C20-MDW is the 2000 square foot Provolt version, a line voltage device rated 120-277V AC at 50/60 hertz that switches through 2 poles and is UL, CE, RoHS and CEC Title 20/24 listed, with daylighting and auto-calibration included. The Pass & Seymour UT3053 Wattstopper is a 24V ultrasonic ceiling sensor with 360 degree coverage at the same 2000 square foot rating. Choose on control topology and sensing technology: line voltage dual-technology versus low-voltage ultrasonic.
8) What does the second pole on this Leviton 2-pole occupancy sensor let me do?
Two poles mean two switched line voltage circuits from one sensor. Electricians use that for bi-level or multi-zone control, for example switching an inboard row of fixtures separately from the row by the windows, or dropping a general lighting circuit and a task circuit independently off the same occupancy event.
9) Is this Leviton sensor PIR only, or dual technology?
The O2C is an M/T sensor combining passive infrared and ultrasonic detection. Dual technology is the right call in rooms with partitions or low-motion occupants, like private offices and classrooms. If you only need straight PIR in an open corridor or storeroom, a low profile PIR ceiling unit such as the Pass & Seymour Wattstopper CI305, rated 360 degrees and 1200 sq ft, is the simpler device.
10) I need a ceiling sensor for a room with lots of air movement from HVAC. Is the Leviton Provolt the right pick?
Ultrasonic sensing reacts to air movement, and the O2C includes ultrasonic as part of its M/T detection, though it pairs it with PIR so both technologies weigh in. If you want ultrasonic-only sensitivity for restrooms or partitioned areas, the Pass & Seymour Wattstopper UT3053 is a 24V ultrasonic ceiling sensor with 360 degree, 2000 sq ft coverage, but it needs a low voltage power pack rather than switching line voltage on its own.
11) Is there a simpler ceiling occupancy sensor than the Leviton Provolt O2C if I do not need daylighting or auto-calibration?
Yes. The Leviton Provolt O2C adds daylighting and auto-calibration on top of its M/T occupancy sensing, which is useful where Title 20/24 daylight response is part of the scope. For a straightforward motion-only ceiling device, the Pass & Seymour CI305 Wattstopper is a low-profile ceiling PIR sensor with 360 degree coverage rated to 1200 square feet. It is passive infrared only, so it needs a clear line of sight to the occupant, where the Provolt O2C combines passive infrared and ultrasonic detection.
12) Can I drop a Pass & Seymour CI305 or UT3053 into the same box as a Leviton Provolt O2C on a retrofit?
Treat them as different systems rather than a swap. The Leviton Provolt O2C is a ceiling mount line voltage sensor rated 120-277V AC with 2 poles, so the branch circuit terminates at the sensor. The Pass & Seymour UT3053 is a 24V ceiling mount ultrasonic sensor and the Pass & Seymour DT300 is a 24V dual technology ceiling sensor - both are low-voltage devices that need a power pack to carry the load. The CI305 is a low-profile ceiling PIR sensor. If existing wiring brings line voltage to the ceiling location, the Provolt O2C keeps that wiring; going to a 24V head means adding line-voltage switching equipment elsewhere.
13) Does the Leviton O2C occupancy sensor need to be set up by hand after install?
It auto-calibrates. The sensor self-adjusts in service, which cuts the time a contractor spends on the ladder tuning sensitivity and time delay after commissioning.
14) What color is the Leviton Provolt ceiling sensor, and will it match the other sensors in my building?
White, on both the 1000 and 2000 sq ft versions. Since the coverage choice does not change the finish, you can mix the two sizes across small and large rooms in the same facility and keep the ceilings looking consistent.
