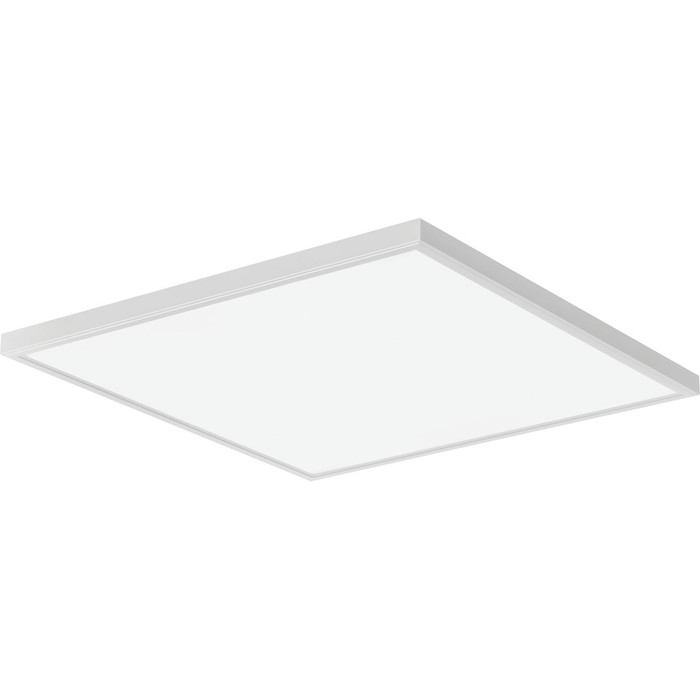

Lithonia Lighting CPANL-2X2-ALO1-SWW7-M4 LED Flat Panel, Switchable CCT/Lumen, Dimmable

Lithonia Lighting CPANL-2X2-ALO1-SWW7-M4 LED Flat Panel, Switchable CCT/Lumen, Dimmable

(No reviews yet) Write a Review

Model: CPANL-2X2-ALO1-SWW7-M4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$143.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lithonia Lighting CPANL 2X2 Switchable LED Flat Panel

The Lithonia Lighting CPANL-2X2-ALO1-SWW7-M4 is a 2x2 LED flat panel from the Contractor Select™ line, built for fast, flexible ceiling-grid installation. This fixture features field-switchable color temperature (3500K/4000K/5000K) and field-switchable lumen output (2400/3300/4400 lumens), letting installers dial in the right light level and tone for the space without stocking multiple SKUs. It operates on universal 120-277-Volt input, delivers >80 CRI color rendering, is dimmable for compatible controls, and is finished in white to blend cleanly with standard drop-ceiling systems.

Key Features

  • 2x2 Flat Panel Format: Sized to drop into standard 2x2 ceiling grid systems for a clean, low-profile fixture.
  • Switchable Color Temperature: Field-selectable 3500K, 4000K, or 5000K CCT settings on a single fixture.
  • Switchable Lumen Output: Field-selectable 2400, 3300, or 4400 lumen output to match room requirements.
  • Dimmable Performance: Compatible with dimming controls for adjustable light levels.
  • Universal Voltage: Operates on 120-277-Volt input for broad compatibility across commercial electrical systems.
  • >80 CRI: Delivers accurate color rendering for offices, retail, and general commercial spaces.
  • White Finish: Clean white housing designed to integrate with standard suspended ceiling grids.
  • Contractor Select™ Series: Engineered for streamlined contractor selection and installation with fewer SKUs to manage in the field.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial Office Ceiling Lighting
  • Drop-Ceiling Grid Retrofit Projects
  • Educational Facility Lighting
  • Retail and Hospitality Interiors
  • Healthcare and Institutional Spaces

Why Lithonia Lighting?

Lithonia Lighting's Contractor Select™ CPANL series is built to simplify the specification and installation process by combining switchable CCT and switchable lumen output into one 2x2 flat panel fixture. With universal 120-277-Volt operation, >80 CRI color rendering, and dimmable capability, this fixture is engineered to deliver consistent, code-ready performance for commercial and institutional lighting upgrades.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
LITH-20260918
Product Type:
Troffer & Flat Panel
Voltage Rating:
120-277V
Light Temperature:
3500K/4000K/5000K (Switchable)
Lumens:
2400/3300/4400 (Switchable)
CRI:
>80
Dimmable:
Yes
Series:
Contractor Select
Department:
Electrical
Product Subgroup:
Light Fixtures
Product Color:
White
Product Group:
Lighting

Lithonia Lighting CPANL-2X2-ALO1-SWW7-M4 – Frequently Asked Questions

1) Will the Lithonia CPANL 2x2 panel drop into a standard 2x2 ceiling grid?
Yes. The CPANL-2X2-ALO1-SWW7-M4 is a 2x2 flat panel sized for standard 2x2 suspended ceiling grid, and the housing is white so it blends with typical grid and tile. For a 2x4 grid opening you would need the 2x4 version instead, not this one.
2) Can I set the color temperature in the field, or do I have to order a fixed 4000K panel?
Color temperature is field-switchable on the fixture itself: 3500K, 4000K, or 5000K. You select it at install, so one part number covers all three tones and you don't stock separate CCT SKUs for a building with mixed-use spaces.
3) How much light does this 2x2 LED panel put out, and can I turn it down for a small office?
Output is switchable between 2400, 3300, and 4400 lumens, set on the fixture. Lower setting suits small offices, corridors, and exam or treatment rooms; the 4400 lumen setting covers open office or retail where fewer fixtures carry the space. That is in addition to dimming.
4) Does the CPANL 2x2 work on a 277V commercial circuit?
Yes. The driver is universal 120-277V, so the same panel runs on 120V, 208V, 240V or 277V branch circuits. No separate voltage version to specify.
5) Can I use the CPANL 2x2 to replace old 2x2 fluorescent troffers?
Yes, it is intended for drop-ceiling grid retrofit work, replacing a 2x2 troffer in the same grid opening. Set the lumen switch to approximate what the fluorescent delivered and the CCT switch to match the tone of neighboring rooms so the retrofit doesn't read as a patchwork. A fluorescent fixture's existing dimming ballast and controls will not carry over, so wire it to line voltage or an LED-compatible dimmer.
6) Is this LED flat panel dimmable, and do I still need a dimmer to use the lumen settings?
The panel is dimmable for use with compatible dimming controls, but you don't need a dimmer to change light level: the 2400/3300/4400 lumen switch on the fixture does that on its own. Use the switch to set the design level, and a dimmer only if the room needs occupant or daylight control.
7) Is >80 CRI good enough for an office or retail space?
The CPANL renders at greater than 80 CRI, which is the normal target for offices, classrooms, corridors, and general retail and hospitality areas. Spaces that judge color closely, like paint or fabric display or some clinical tasks, are usually specified at 90 CRI or above, so this one is not the pick there.
8) I manage several buildings with different ceiling grids and light levels. Can I standardize on one panel?
That is what this one is built for. Because both CCT (3500K/4000K/5000K) and lumen output (2400/3300/4400) are selected in the field, and the driver accepts anything from 120V to 277V, a single part number covers most 2x2 grid openings across a portfolio. You only break out of it where the grid is 2x4 rather than 2x2.
