Lithonia Lighting CPX-2X2-ALO7...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$335.11

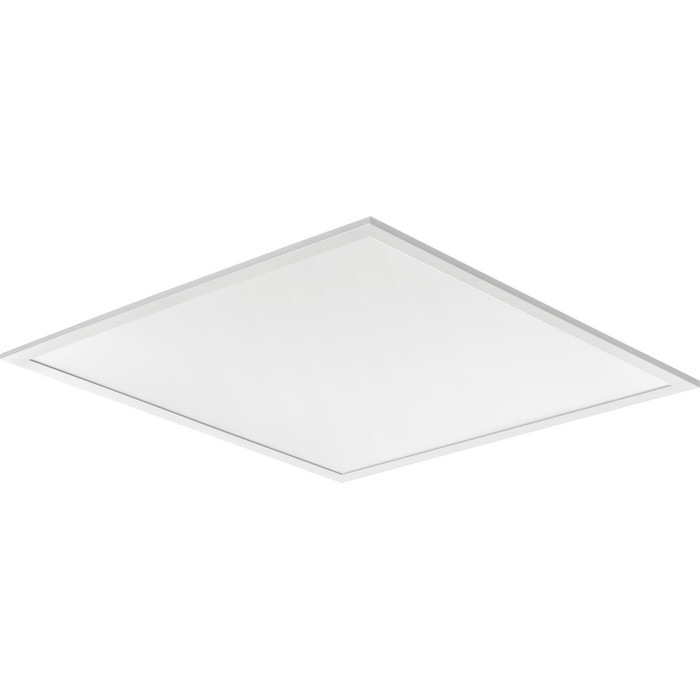

Lithonia Lighting CPX-2X2-ALO7-SWW7-IE10WCP Switchable LED Flat Panel with Battery Backup, White

Lithonia Lighting CPX-2X2-ALO7-SWW7-IE10WCP Switchable LED Flat Panel with Battery Backup, White

(No reviews yet) Write a Review

Model: CPX-2X2-ALO7-SWW7-IE10WCP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$335.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lithonia Lighting CPX-2X2-ALO7-SWW7-IE10WCP Switchable LED Flat Panel with Battery Backup, White

The Lithonia Lighting CPX-2X2-ALO7-SWW7-IE10WCP is a switchable LED flat panel fixture engineered for 2x2 ceiling grid applications, combining field-selectable color temperature and lumen output in a single White housing. This CPX Series fixture offers switchable color temperatures of 3500K, 4000K, and 5000K with corresponding high-lumen outputs of 4131, 4564, and 4212 lumens, delivering 80 CRI color rendering and dimmable performance on a universal 120-277V input. An integral emergency battery pack (IE10WCP) with 10W constant power output provides built-in emergency egress illumination, making this fixture a code-conscious choice for commercial ceiling installations that require both everyday lighting and life-safety backup in one unit.

Key Features

  • 2x2 Flat Panel Format: CPX-2X2 housing is sized for standard 2x2 drop-ceiling grid applications.
  • Switchable Color Temperature: Field-selectable 3500K, 4000K, or 5000K CCT lets installers match color temperature to the space without stocking multiple SKUs.
  • Switchable High-Lumen Output: Delivers 4131, 4564, or 4212 lumens depending on the selected output setting.
  • 80 CRI: Consistent 80 CRI color rendering for accurate, comfortable illumination.
  • Universal 120-277V Input: Operates across 120-277V for flexible commercial electrical systems.
  • Dimmable Performance: Dimmable driver supports compatible lighting control systems.
  • Integral Emergency Battery Backup: Built-in IE10WCP battery pack delivers 10W constant power for emergency egress lighting during outages.
  • White Finish: Clean White housing complements standard commercial ceiling environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial Office and Retail Ceiling Lighting
  • Educational and Healthcare Facilities
  • Drop-Ceiling Troffer Retrofits
  • Emergency Egress and Life-Safety Lighting
  • New Construction and Renovation Projects

Why Lithonia Lighting?

Lithonia Lighting's CPX Series switchable flat panels are engineered to simplify specification by combining adjustable color temperature, switchable lumen output, and integral emergency battery backup into a single fixture. With dimmable 120-277V operation, 80 CRI color rendering, and a durable White housing, this CPX-2X2 fixture is built to deliver reliable, code-conscious performance for demanding commercial ceiling installations.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
LITH-20260918
Product Type:
Troffer & Flat Panel
Series:
CPX
Voltage Rating:
120-277V
Light Temperature:
3500K/4000K/5000K
CRI:
80
Dimmable:
Yes
Department:
Electrical
Product Subgroup:
Light Fixtures
Product Color:
White
Product Group:
Lighting
Country Of Origin:
United States

Lithonia Lighting CPX-2X2-ALO7-SWW7-IE10WCP – Frequently Asked Questions

1) Will the Lithonia CPX-2X2 flat panel drop into a standard 2x2 ceiling grid?
Yes. The CPX-2X2 housing is sized for standard 2x2 drop-ceiling grid openings, so it lays into an existing 2x2 tee bar layout where a 2x2 troffer or tile sits today. It is the panel to order for 2x2 grid; a 2x4 opening needs the 2x4 size instead.
2) Does the CPX-2X2-ALO7-SWW7-IE10WCP include emergency battery backup, or do I need a separate emergency fixture?
Emergency backup is built in. The IE10WCP integral battery pack delivers 10W constant power for egress illumination during an outage, so one fixture covers both normal lighting and life-safety backup. No separate emergency unit or remote head is needed at that location.
3) What color temperature does this Lithonia CPX panel put out, and is it set at the fixture?
Three field-selectable settings: 3500K, 4000K and 5000K. The switch is on the fixture, so an installer picks the CCT at install rather than stocking three different part numbers. Color rendering is 80 CRI at any setting.
4) Can I run this panel on 277V, or is it 120V only?
It accepts a universal 120-277V input, so the same fixture works on 120V branch circuits in a tenant space and on 277V in a commercial or institutional building. No separate voltage version to specify.
5) Can I use these to replace old 2x2 fluorescent troffers in a drop ceiling?
Yes, drop-ceiling troffer retrofit is one of the intended uses. The panel takes the same 2x2 grid opening the troffer came out of, and because CCT is switchable between 3500K, 4000K and 5000K you can match the color of the fluorescent lamps already in the rest of the building instead of ordering a specific CCT per area.
6) How many lumens does the CPX-2X2 ALO7 put out on each setting?
Output is switchable along with color: 4131 lumens at 3500K, 4564 at 4000K and 4212 at 5000K on the high-lumen ALO7 settings. That range suits general office and retail ambient lighting on a 2x2 grid.
7) Is the CPX-2X2 dimmable, and will it work with my existing dimming controls?
The driver is dimmable and works with compatible lighting control systems. Confirm your control protocol against the manufacturer spec sheet before committing a large control zone, since the panel has to match the dimming method your system drives.
8) I manage a school and need some fixtures on the egress path. Can I mix these with non-emergency panels?
That is the normal approach. Order the CPX-2X2-ALO7-SWW7-IE10WCP with the integral 10W emergency battery pack at the corridor and egress-path locations, and standard CPX panels elsewhere. Because both share the CPX 2x2 housing and the same switchable 3500K/4000K/5000K color settings, the ceiling looks uniform and only the battery-equipped units carry the emergency load. Educational and healthcare facilities are listed uses for this fixture.
9) Is 80 CRI good enough for an office or retail space?
80 CRI is the common commercial benchmark for offices, classrooms and general retail, and that is what this panel delivers on every color setting. If your spec calls for 90 CRI for color-critical retail display or certain healthcare exam areas, this fixture will not meet it and you need a high-CRI panel instead.
10) What finish is the CPX-2X2 panel housing?
White housing, which is what matches standard white ceiling grid and tile in commercial spaces. It is the only finish for this model.
