Lithonia Lighting CPX 1X4 ALO7...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$120.90

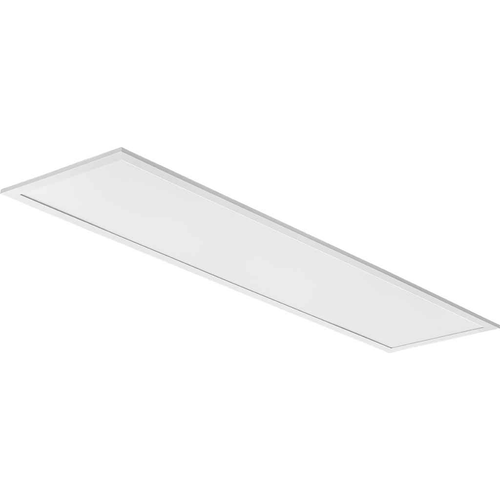

Lithonia Lighting CPX 1X4 ALO7 SWW7 M4 LED Flat Panel

Lithonia Lighting CPX 1X4 ALO7 SWW7 M4 LED Flat Panel

(No reviews yet) Write a Review

Model: CPX 1X4 ALO7 SWW7 M4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$120.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
LITH CPX 1X4 ALO7 SWW7 M4 LED Flat

  • Standards

    • DLC Standard
    • CSADLC Premium

  • Applications

    • Hospitality
    • House of Worship
    • Education
    • Government
    • Retail
    • Residential
    • Offices & Banks

  • Features

    • INSTALLATION: The back plate includes integral T-bar clips for installation into T-grid ceilings
    • HOURS OF LIFE: Greater than 70% LED lumen maintenance at 50,000 hours (L70>50,000).
    • RATINGS: CSA certified to meet US and Canadian standards. Damp location listed. IC rated.
    • WARRANTY: Buy with confidence with a 5-year limited warranty
    • TECHNOLOGY: CPX's low-profile design provides increased installation flexibility especially in restricted plenum spaces
    • Length: 47.8" 121.4cmWidth: 11.8" 30.0cmDepth: 2.1" 5.4cm
    • ENERGY SAVINGS: DesignLights Consortium® (DLC) qualified product
    • COMPATIBLE CONTROLS: SensorSwitch wireless dimming (JOT) or luminaire-embedded occupancy sensor control (JOTVTX15) with JOT pairing.
    • VOLTAGE: 120 volts allowing for use in many applications usch as schools, offices, retail, and other commercial spaces.
    • BATTERY: Emergency battery back-up not included in this version


CPX 1X4 ALO7 SWW7 M4 - spec sheet

Product Specs

Product Type:
Troffer & Flat Panel
Department:
Electrical
Product Subgroup:
Light Fixtures
Product Group:
Lighting

Lithonia Lighting CPX 1X4 ALO7 SWW7 M4 – Frequently Asked Questions

1) Will the Lithonia CPX 1X4 flat panel drop into a standard 2x4 T-bar grid, or does it need a different ceiling?
The CPX 1X4 is built for T-grid ceilings. Its back plate has integral T-bar clips, so it lays into the grid without a separate mounting kit. Panel size is 47.8 inches long by 11.8 inches wide, which is the 1x4 nominal module, so it fills half a 2x4 grid cell or a dedicated 1x4 opening. Depth is only 2.1 inches, which is why it works where plenum space above the grid is tight.
2) Does this Lithonia CPX panel include emergency battery backup for egress lighting?
No. This version of the CPX 1X4 ships without emergency battery back-up. If the fixture is doing double duty as egress illumination in a corridor or stairwell, you need a CPX ordered with the emergency battery option or a separate emergency unit on that circuit.
3) Does the CPX 1X4 panel dim, and what controls does it work with?
Controls are an add-on, not built into the base panel. The CPX works with SensorSwitch wireless dimming (JOT) or a luminaire-embedded occupancy sensor control (JOTVTX15) using JOT pairing. If you need dimming or occupancy sensing on the job, those control components have to be specified and ordered alongside the fixture.
4) How long will these panels last before lumen output drops off?
The CPX holds greater than 70 percent lumen maintenance at 50,000 hours (L70 greater than 50,000). For a facility running roughly 12 hours a day that is well over a decade before output falls to the L70 point, which is why MRO buyers standardize on it across a floor rather than relamping troffers.
5) Can I use the same CPX 1X4 panel across classrooms, offices, and retail areas in one building?
That is the intent of the CPX line. It is specified for hospitality, houses of worship, education, government, retail, residential, and offices and banks. One part number across those spaces keeps your spares inventory down, and the 120 volt build suits typical school, office, and retail branch circuits.
How fast can I get the Lithonia Lighting CPX 1X4 ALO7 SWW7 M4 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Lithonia Lighting CPX 1X4 ALO7 SWW7 M4 come with a warranty?
Absolutely. The Lithonia Lighting CPX 1X4 ALO7 SWW7 M4 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Lithonia Lighting CPX 1X4 ALO7 SWW7 M4?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
