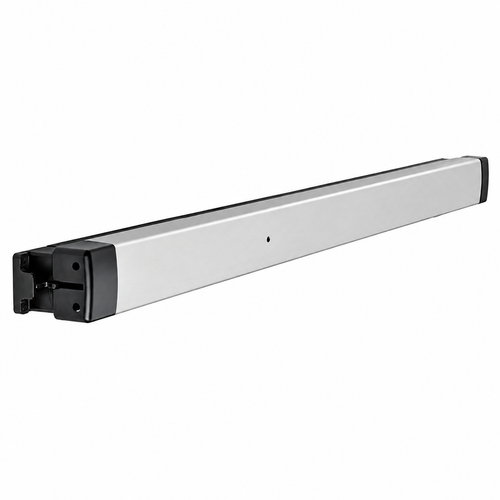

Adams Rite P8800 Series 48" Narrow Stile Pullman Rim Exit Device for Aluminum Doors
Model: ADA-P8800-48
Adams Rite P8800 Series 48" Narrow Stile Pullman Rim Exit Device for Aluminum DoorsProfessional Pullman Latching Solution for High-Performance ApplicationsThe Adams Rite P8800 Series Pullman Rim Exit...
Adams Rite
Starting at
$567.00
$370.53
Locknetics TB Series Door Touchbar Exit Device Locknetics TB Series Door Touchbar Exit Device
TB-36 - 36" door touch bar
TB-42 - 42" door touch bar
TB-48 - 48" door touch bar
The touch bar is a request to exit device, usually installed as a redundancy to other access control devices for non-fire rated indoor doors.
FEATURES
- Low Operating Force
- Minimal Bar Travel
- Non Latching
- 12/24 VDC, Includes Two SPDT Switches for Positive Redundant Operation
- Field Reversible and Easily Installed On All Types of Doors
- Heavy Duty Clear Anodized Satin Aluminum Construction
- Includes "Push to Exit" Sticker
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Subcategory:
- Sensors, Switches, Relays and Timers
- Series:
- TB Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Type:
- Exit Devices
- Commercial/Residential:
- Commercial
- Product Model:
- TB
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Locknetics TB-36 – Frequently Asked Questions
1) Does the Locknetics TB Series touch bar actually latch the door, or is it just a request-to-exit switch?
It doesn't latch anything. The TB Series touch bar is a request-to-exit device: pressing it throws two SPDT switches that signal the access control system to release the door. There is no latchbolt and no vertical rod. If you need the door mechanically secured, you still need a lock or a real exit device; the touch bar is the exit signal layer that usually sits alongside other access control hardware as a redundant release.
2) Can I use a Locknetics TB touch bar on a fire rated door?
No. The TB Series touch bar is specified for non-fire rated indoor doors. Put it on a fire rated opening and you need listed fire exit hardware instead, which this is not. Interior office, corridor, and access-controlled openings that carry no fire label are where it belongs.
3) What length Locknetics TB touch bar do I order for my door width?
Three lengths cover the range: TB-36 at 36 inches, TB-42 at 42 inches, and TB-48 at 48 inches. Match the bar to the door leaf so the bar spans the usable width without running into the stop or the hinge stile. A standard 36 inch commercial leaf takes the TB-36; wider leaves and 42 or 48 inch doors take the matching bar.
4) Do I have to order a left hand or right hand Locknetics TB touch bar?
Handing isn't an ordering decision here. The TB Series bar is field reversible, so one part number covers both hands and you set it at install. That also means you can stock a single length across a building instead of splitting inventory by hand.
5) Will the Locknetics TB touch bar mount on a hollow metal door, and does it work on aluminum storefront?
The TB Series bar is stated to install on all types of doors, so hollow metal, wood, and aluminum openings are all in scope. It's a surface mounted switch bar with no bolt work and no door prep for a latch, which is why it isn't fussy about door construction the way a mortise or vertical rod device is.
6) Should I use a touch bar or a push button for request to exit?
A wall push button asks the person leaving to find a small target. A touch bar spans the door leaf, so anyone hitting the door anywhere across the bar releases it, which is what you want on a main egress path or a door people go through with their hands full. The TB Series adds low operating force and minimal bar travel, so it reads as a normal push-to-open door rather than something to operate. Where the door is low traffic and staff-only, a button is simpler.
7) What finish is the Locknetics TB touch bar and will it hold up in a busy corridor?
Clear anodized satin aluminum over heavy duty construction. The anodizing is an integral finish rather than a coating, so it wears rather than chips, which is why it survives hand contact on a high traffic interior door. It's a single finish across all three lengths, so openings done at different times still match.
8) Does anything come with the Locknetics TB touch bar, or do I need to order signage separately?
A "Push to Exit" sticker ships with the bar, so the egress marking is covered out of the box. What you supply is the low voltage wiring back to the panel and the door position or lock hardware the switches are controlling; the bar itself is the switch, not the lock.
9) Is the Locknetics TB touch bar suitable for a commercial building or is it a residential product?
Commercial. The TB Series is a commercial grade request-to-exit bar built for access controlled interior openings in offices, schools, healthcare, and multi-family common areas, not for residential entry doors.
