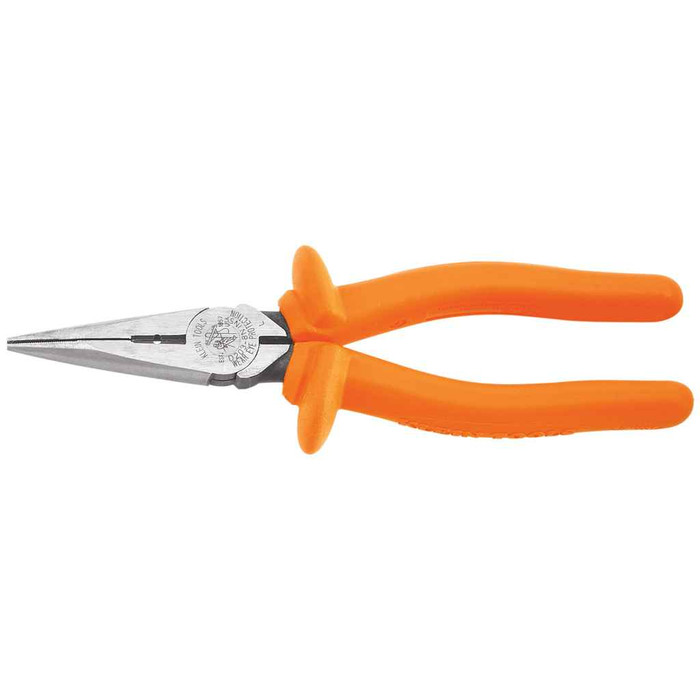

Long Nose Pliers, Insulated, 8-Inch
D203-8-INS - spec sheet
Warnings
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Wear approved eye protection.
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
Features
- Extended handles provide added reach and leverage
- Flame Retardant and Impact Resistant Handle
- A flame retardant, impact-resistant, bright orange outer coating
- Two layers of insulation provide protection against electric shock
- Forged in the USA with custom, US-made tool steel for maximum durability
- Heavier design for easier, more comfortable cutting
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Integral guards help prevent hand contact with conductive parts
- Long nose easily grabs and twists wire
- Needle Nose Pliers are individually tested Insulation that exceeds the IEC 60900 and ASTM F1505 standards, and clearly marked with the official 1000-volt rating symbol
D203-8-INS - spec sheet
Manufacturer Resources
Product Specs
- Cut Style:
- Side-Cutting
- Cutting Knives:
- Standard
- Depth:
- 8.8750 in
- Handle Color:
- Orange
- Handle Finish:
- 2-Layer Insulation
- Handle Length:
- 4.79" (12.2 cm)
- Insulated:
- Yes
- Jaw Length:
- 2.32" (5.9 cm)
- Jaw Thickness:
- 0.5" (1.3 cm)
- Jaw Width:
- 1.02" (2.6 cm)
- Joint Type:
- Hot-Riveted
- Knife Length:
- 0.693" (1.8 cm)
- Overall Length:
- 8.91" (22.6 cm)
- Point Diameter:
- 0.125" (0.32 cm)
- Standard:
- IEC 60900 and ASTM F1505
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Pliers & Cutters
- Product Type:
- Long Nose Side Cutting Pliers
- Product Details:
- Long Nose Side Cutting Pliers
- Product Height:
- 0.5000 in
- Product Material:
- Induction Hardened Steel
- Product Weight:
- 0.7000 lbs
- Product Width:
- 4.7500 in
