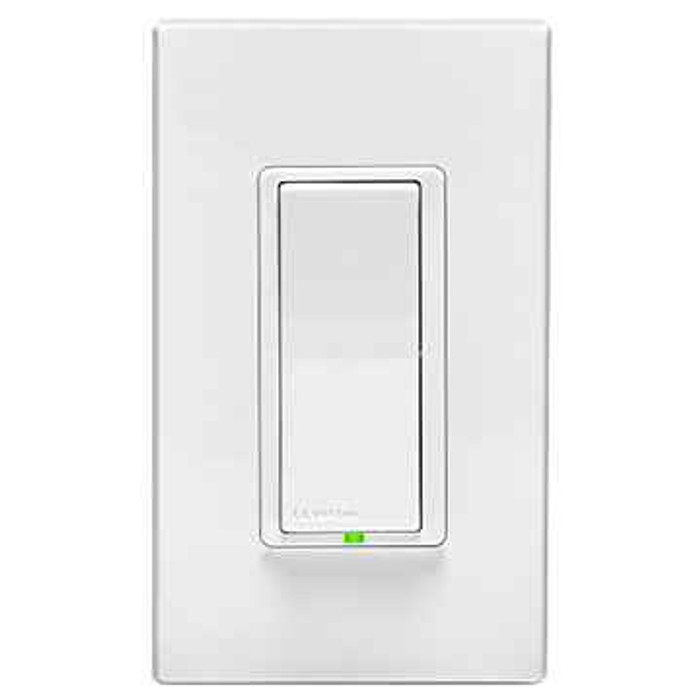

Leviton DL15S-1BZ Lumina RF 15A Switch, 120/277V, neutral required

Leviton DL15S-1BZ Lumina RF 15A Switch, 120/277V, neutral required

(No reviews yet) Write a Review

Model: DL15S-1BZ

In Stock (leaves warehouse same day if ordered before 3pm ET)

$150.36
$115.21
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Lumina RF 15A Switch, 120/277V, neutral required

  • Features

    • 3-way switching applications— pair with Lumina Gateway for energy management
    • H.I.S. (High Inrush Stability)— robust and reliable mechanically held latching load rating for high inrush (LED) and commercial lighting
    • LED flexibility— enable and disable LED for applications where brightness is a factor (i.e. hospitality)
    • Standard size for seamless installation— the Lumina RF wall switch fits in a standard single-gang wall box
    • Complies with IEEE 802.15.4 standards— or domestic and international wireless networks
    • Compatible with multiple load types— LED, incandescent, inductive, fluorescent
    • Coordinator feature— self-healing wire mesh feature has no hardwired backbone for and connects all products together for more robust and reliable system

Manufacturer Resources

Product Specs

Department:
Electrical
Product Group:
Switches
Product Subgroup:
Switches & Receptacles
Product Type:
Switch

Leviton DL15S-1BZ – Frequently Asked Questions

1) Does the Leviton DL15S-1BZ Lumina RF switch need a neutral wire?
Yes, a neutral is required. The DL15S-1BZ will not work in a switch loop or any box where only the hot and switch leg are present. If you open the box and find no white neutral, you need to pull one or pick a different control strategy before this switch goes in.
2) Will the Lumina RF wall switch run on 277V commercial lighting circuits?
It is rated 120/277V, so the same DL15S-1BZ works on a 120V residential or tenant circuit and on a 277V commercial lighting branch. Load rating is 15A.
3) Can I use the DL15S-1BZ for 3-way switching, or do I need a separate companion switch?
The switch supports 3-way switching applications directly. Because the control is RF rather than a hardwired traveler, the second point of control is another Lumina RF device on the mesh, not a traveler wire run between boxes. Pair with the Lumina Gateway when you also want energy management.
4) Will this switch hold up on LED fixtures that draw a big inrush at turn-on?
That is what the H.I.S. (High Inrush Stability) feature addresses. The DL15S-1BZ uses a mechanically held latching relay rated for high inrush loads such as LED and commercial lighting, so it is not the kind of electronic switch that welds contacts on a bank of LED drivers. It also handles incandescent, inductive and fluorescent loads.
5) Does the Lumina RF switch fit a standard single-gang box, or does it need a deeper box?
It is built to standard wall switch size and fits a standard single-gang wall box, so it drops into existing device boxes and takes standard single-gang wallplates.
6) Can the indicator LED on this switch be turned off for hotel guest rooms?
Yes. The LED can be enabled or disabled, which is why it gets specified in hospitality work where a glowing switch in a dark guest room is a complaint.
7) Does a Lumina RF lighting system need a wired backbone between rooms?
No. The DL15S-1BZ includes a coordinator feature and forms a self-healing wireless mesh with the other Lumina devices, so there is no hardwired control backbone to run. Each device relays for the others, which is useful in retrofits where you cannot get low-voltage cable through finished walls.
8) What is the exact part number to order this Leviton Lumina RF switch?
Order Leviton DL15S-1BZ. It is the 15A 120/277V Lumina RF wall switch in bronze, and it is sold as a single model with no finish or amperage options to select.
