Metallics JMPMP812 M8 x 12mm P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

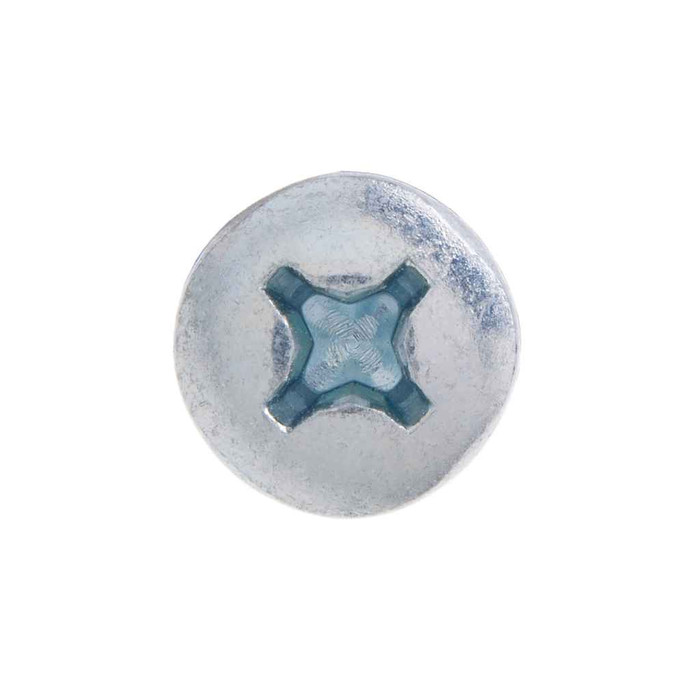

Metallics JMPMP812 M8 x 12mm Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JMPMP812 M8 x 12mm Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JMPMP812
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
M8 x 12mm Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Pan head with Phillips Drive
    • M8 Diameter, 12mm Length
    • Steel Zinc Material

  • Additional Notes

    • METRIC|other sizes and quantities available by request

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ISO 1580
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#4
Fastener Head Height:
4.5 - 4.8 in.
Fastener Head Type:
Pan
Fastener Head Width:
15.57 - 16 in.
Fastener Length:
12mm
Hardness:
Rockwell B71-99.5
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_Steel_Metric_2018.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
2.45 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Tensile Strength:
420 N/mm2 minimum
Thread Pitch:
1.25
Wall Thickness:
1.9
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
MPMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JMPMP812 – Frequently Asked Questions

1) Is the Metallics JMPMP812 machine screw a coarse M8 thread, and will it take a standard M8 nut?
Thread pitch is 1.25mm, which is standard coarse M8. Any M8-1.25 nut, coupling, or tapped hole will take it. If your hole is tapped M8 x 1.0 fine thread, this screw will not run in.
2) How much usable grip length do I get from a 12mm M8 pan head screw?
Length is 12mm measured under the pan head, so the full 12mm is what passes through your material and into the nut or tapped hole. On a pan head the length is not counted into the head. Practically that suits sheet metal, strut, enclosure covers, and box mounting where total stack-up is under about 12mm; thicker assemblies need a longer screw in the same MPMP metric pan head series.
3) Are these Metallics machine screws acceptable on a Buy American or ARRA funded job?
Both the Buy American and ARRA compliance flags are marked compliant on the JMPMP812. Country of origin is listed as multiple, so if your submittal needs a single named origin, that is the one detail to confirm with the mill cert.
4) What size Phillips bit drives these M8 pan head screws?
Phillips drive, #4 driver size. A #4 Phillips is larger than the #2 most electricians carry on the pouch, so bring the right bit or you will cam out and chew the recess on a zinc plated head.
5) Are these metric screws made to a recognized dimensional standard for head and thread?
Yes, the pan head is built to ISO 1580, the metric standard for cross recessed pan head screws. That matters if the screw has to match a drawing callout or interchange with other ISO 1580 metric pan heads already in the assembly.
6) Will zinc plated steel hold up outdoors or in a damp mechanical room?
The finish is zinc on steel, which is a plated corrosion coating suited to dry interior and protected locations. In exterior, washdown, coastal, or chemically aggressive areas the plating will eventually give up and the steel underneath rusts. For those spots specify a stainless metric pan head screw rather than zinc.
7) How are the JMPMP812 screws packaged and what is the minimum I can buy?
They ship in a jar of 100, and 100 count is the order minimum, so a jar is the smallest buy. Jar weight is listed at 2.45 lbs. Handy for a shop drawer or a van bin rather than counting out loose pieces.
8) Why choose a pan head instead of a flat head for mounting devices in an enclosure?
A pan head sits on top of the surface with a broad flat bearing face, so it spreads load over sheet metal and slotted holes without needing a countersink. A flat head needs a chamfered or countersunk hole to seat flush. If your plate is drilled straight through and nothing has to sit flat over the fastener, the pan head is the one to use.
9) Can I get this Metallics metric pan head screw in a different length or diameter?
Yes. The MPMP metric pan head Phillips line runs other diameters and lengths, and other quantities, by request. JMPMP812 is specifically the M8 x 12mm in a 100 count jar.
