Metallics JMPMP860 M8 x 60mm P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

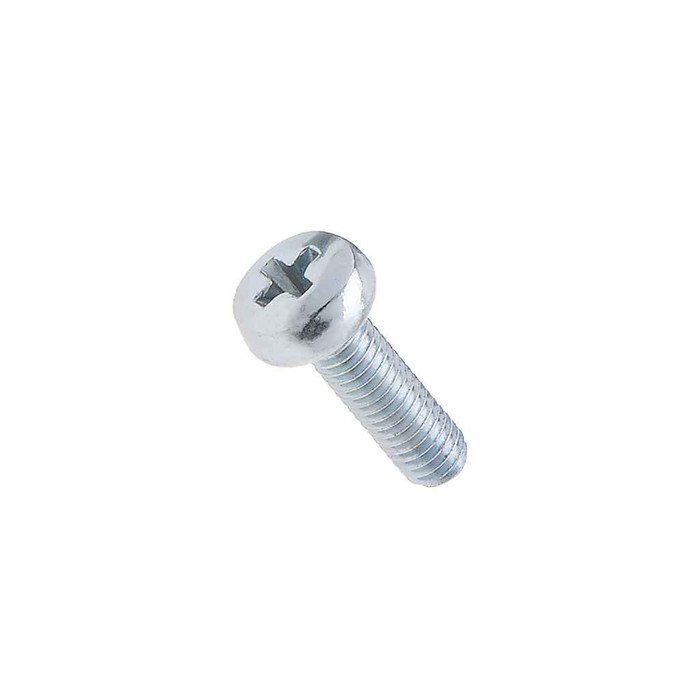

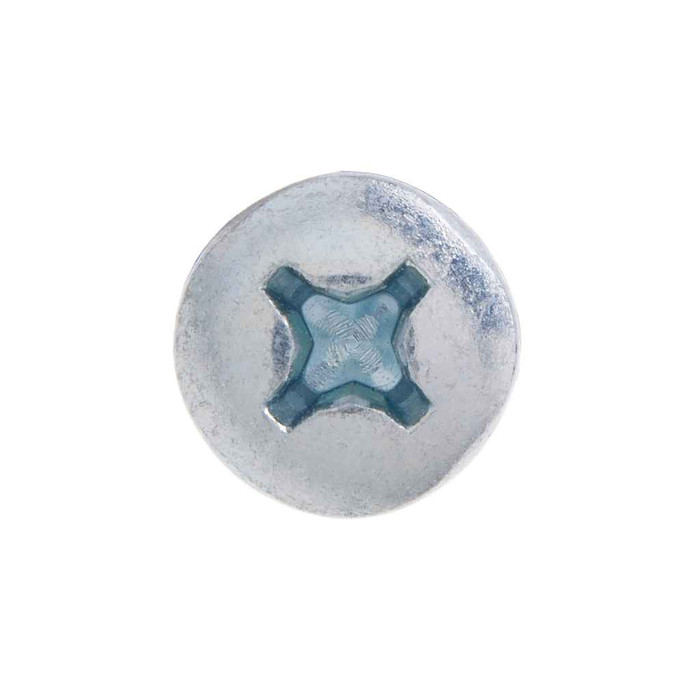

Metallics JMPMP860 M8 x 60mm Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JMPMP860 M8 x 60mm Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JMPMP860
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
M8 x 60mm Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Pan head with Phillips Drive
    • M8 Diameter, 60mm Length

  • Additional Notes

    • METRIC|other sizes and quantities available by request

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ISO 1580
Division:
Electrical H1
Drive Type:
Phillips
Fastener Head Height:
4.5 - 4.8 in.
Fastener Head Type:
Pan
Fastener Head Width:
15.57 - 16 in.
Fastener Length:
60mm
Hardness:
Rockwell B71-99.5
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Sub Division:
Electrical-E H2
Tensile Strength:
420 N/mm2 minimum
Thread Pitch:
1.25
Wall Thickness:
1.9
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
MPMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JMPMP860 – Frequently Asked Questions

1) What thread pitch does the Metallics JMPMP860 M8 machine screw have, and will it fit a standard M8 nut?
Thread pitch is 1.25mm, which is the standard coarse M8 pitch. It will thread into any standard M8-1.25 nut or tapped M8 hole. If your equipment uses the fine M8-1.0 pitch, this screw will not engage.
2) Is the JMPMP860 screw metric or imperial thread?
Metric. It is an M8 diameter screw, 60mm long, with a 1.25mm pitch, built to ISO 1580 for pan head Phillips machine screws. An imperial 5/16-18 screw is close in diameter but the threads are not interchangeable with M8.
3) Are these screws Buy American or ARRA compliant for a government job?
No. The JMPMP860 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries domestic sourcing requirements, this screw will not satisfy them.
4) What is the minimum order quantity on these M8 x 60mm pan head screws?
They sell by the 100-count jar, so 100 pieces is the minimum. Other sizes and quantities can be arranged by request.
5) Will a zinc plated steel machine screw hold up outdoors or in a damp electrical room?
Zinc plated steel gives moderate corrosion resistance, fine for indoor enclosures, panel boards, strut and general electrical fastening. For sustained outdoor exposure, washdown, or coastal air, step up to stainless steel rather than zinc plated steel.
6) What head and driver do these Metallics M8 screws use?
Pan head with a Phillips recess, made to ISO 1580. Pan heads sit slightly domed above the surface with a broad bearing face, so they work where you need clamping area on sheet metal or a plate and do not need a flush countersunk finish. Drive it with a Phillips bit, not a slotted or Torx.
7) Do these M8 x 60mm machine screws come with nuts or washers?
No, the JMPMP860 jar is screws only. You need to source M8-1.25 nuts and any flat or lock washers separately to match the 1.25mm pitch.
8) Is 60mm long enough for my application, and how do I figure the grip?
The 60mm is the overall shank length under the pan head, measured to ISO 1580. Add up your material thicknesses plus the nut height and allow a thread or two past the nut; if that total exceeds 60mm you need a longer screw. Metallics offers other lengths in the MPMP series by request.
