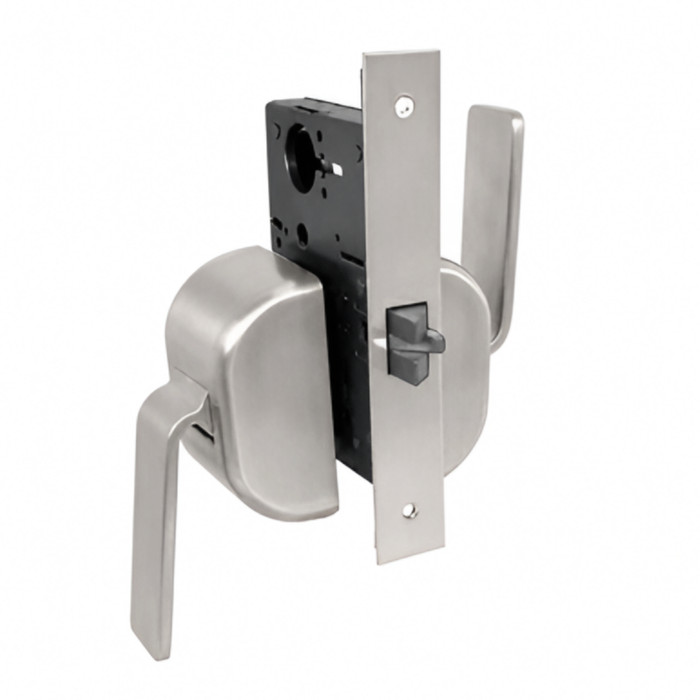

Marks USA 5PDN Grade 1 Hospital Passage Mortise Push/Pull Paddleset

Marks USA MAR5PDN 5PDN Grade 1 Hospital Passage Mortise Push/Pull Paddleset — Ligature Resistant, ADA Compliant, Satin Stainless Steel

(No reviews yet) Write a Review

Model: 5PDN-32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$447.35
$278.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Marks USA 5PDN Grade 1 Hospital Passage Mortise Push/Pull Paddleset — Ligature Resistant, ADA Compliant

The Marks USA 5PDN is a Grade 1 Hospital Passage Mortise Push/Pull Paddleset from the Marks USA Survivor Series, engineered for demanding healthcare and institutional environments where ligature resistance and ADA compliance are essential. Featuring a functional, modern design with variable mounting positions and a short throw angle for easy push/pull door operation, this paddleset is non-handed and reversible for pull or push configurations. Finished in Satin Stainless Steel, it includes lever support springs with 5/16" hubs and a 3/4" latch throw, with a front size of 1-1/4" x 8" and a 2-3/4" backset for standard commercial door preparation.

Key Features

  • Ligature Resistant Design: Specifically engineered for hospital and healthcare applications where ligature resistance is a critical safety requirement.
  • ADA Compliant: Satisfies ADA requirements, ensuring accessible operation for all users in commercial and institutional settings.
  • Short Throw Angle: Allows for easy push/pull action to open doors, reducing operational effort in high-traffic environments.
  • Variable Mounting Positions: Reversible, non-handed configuration supports both pull and push styles for flexible installation on any door.
  • Lever Support Springs with 5/16" Hubs: Precision-engineered internal components provide consistent, reliable paddle operation over the life of the product.
  • Satin Stainless Steel Finish: Durable, corrosion-resistant finish suited for demanding healthcare and commercial environments.
  • Lifetime Mechanical Warranty: Backed by Marks USA's lifetime mechanical warranty, reflecting the Survivor Series' commitment to long-term durability.
  • UL Listed — 3-Hour Fire Rating: UL Listed for 3-hour fire rating, meeting stringent fire and life safety code requirements.

Certifications & Compliance

  • ANSI/BHMA Grade 1
  • UL Listed — 3-Hour Fire Rating
  • ADA Compliant
  • Lifetime Mechanical Warranty (Marks USA Survivor Series)

Technical Specifications

  • Series: 195 Series
  • Features: Lever Support Springs With 5/16" Hubs
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Mortise Locks
  • Subcategory: Cylindrical Locks
  • ANSI/BHMA: ANSI/BHMA, UL Listed
  • Commercial/Residential: Commercial
  • Latch Throw: 3/4"
  • Front Size: 1-1/4" x 8"
  • ANSI Function: F01
  • Product Attribute: Mortise Locks
  • Electronic: No
  • Strike Classification: 4-7/8"
  • Product Category: Mechanical Locks
  • Backset (Distance): 2-3/4"
  • Department: Door Hardware

Typical Applications

  • Hospital Patient Rooms and Behavioral Health Facilities
  • Healthcare and Medical Office Buildings
  • Educational and Institutional Facilities
  • Commercial Office Buildings
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Assisted Living Properties
  • Retail and Hospitality Establishments

Why Marks USA 5PDN?

Marks USA Survivor Series products deliver professional-grade reliability with precision-engineered components — including lever support springs with 5/16" hubs and a 3/4" latch throw — built to meet the rigorous demands of commercial and healthcare environments. The 5PDN's ligature-resistant, ADA-compliant design, combined with UL Listing for 3-hour fire rating and ANSI/BHMA Grade 1 certification, makes it a trusted choice for facilities where safety, durability, and code compliance are non-negotiable.

Manufacturer Resources

Marks USA Product Catalog

Product Specs

Series:
195 Series
Features:
Lever Support Springs With 5/16" Hubs
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Mortise Locks
Subcategory:
Cylindrical Locks
ANSI/BHMA:
ANSI/BHMA, UL Listed
Commercial/Residential:
Commercial
Latch Throw:
3/4"
Front Size:
1-1/4" x 8"
Hub Material:
Steel
ANSI Function:
F01
Product Attribute:
Mortise Locks
Electronic:
No
Strike Classification:
4-7/8"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Marks USA 5PDN-32D – Frequently Asked Questions

1) Will the Marks USA 5PDN push/pull paddleset work on a standard 2-3/4 inch backset mortise prep?
The 5PDN is built for the standard commercial mortise prep: 2-3/4 inch backset, a 1-1/4 x 8 inch front, and a 4-7/8 inch strike classification. If the door and frame were already prepped for a 2-3/4 inch backset mortise lock with an ASA 4-7/8 inch strike, the paddleset drops into that same cutout. Check your existing front dimensions against 1-1/4 x 8 inches before you pull the old body out.
2) Do I need to specify handing when ordering the Marks USA 5PDN paddleset?
No handing to specify. The 5PDN paddleset is non-handed and reversible, and it mounts in variable positions so the same part covers both a push side and a pull side. That is what makes it workable on a fleet of patient room doors swinging both ways, one part number for all of them.
3) Is the Marks USA 5PDN a locking set or just a passage device?
Passage only. The 5PDN carries ANSI function F01, which is the passage/hall/closet function: the paddle always retracts the latch from both sides and there is no cylinder and no locking. If the opening needs to be secured, this is the wrong function, and you want a storeroom or classroom mortise lock instead, such as the Cal-Royal NM8080 storeroom or the Corbin Russwin ML2003 classroom lockset.
4) Will the Marks USA 5PDN latch into the strike that is already in my frame?
With a 3/4 inch latch throw and a 4-7/8 inch strike classification, the 5PDN latches into a standard ASA mortise strike. If the frame already has a 4-7/8 inch mortise strike with the usual lip and the door gap is normal, the existing strike takes it. A frame cut for a cylindrical lock strike will not, and needs a full mortise strike prep.
5) Is a push/pull paddle better than a lever for a behavioral health patient room door?
On a ligature risk opening, a paddle removes the protruding loop a lever creates. The Marks USA 5PDN is a ligature resistant push/pull paddleset with a short throw angle, so the door opens with a shove or a pull rather than a grip and turn. If the facility has standardized on levers instead, the anti-ligature lever equivalents are the TownSteel MRX-L-01 passage mortise lockset or the arch trim MRX-A-01, both Grade 1 passage function. Paddle for the highest risk rooms, ligature resistant lever where staff prefer the familiar motion.
6) Can I use the Marks USA 5PDN paddleset on a door prepped for a cylindrical lock?
No. The 5PDN is a mortise product with a 1-1/4 x 8 inch front and a 2-3/4 inch backset, so it needs a mortise pocket routed into the door edge. A door with a 2-1/8 inch cross bore for a cylindrical lock has to be re-prepped, or you pick a cylindrical product instead, like the Schlage PC10 Grade 1 passage cylindrical lock.
7) What is the closest substitute for the Marks USA 5PDN if I need a Grade 1 mortise passage lock?
For a straight passage swap, the Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating, and the Schlage PM010 is a Grade 1 non-keyed passage latch mortise lock for 1-3/4 inch doors. Both are lever or trim products, though, not paddles. If ligature resistance is the reason you are buying, stay with the 5PDN paddleset or the TownSteel MRX-A-01 ligature resistant arch trim passage lockset, since a conventional lever gives back the anchor point you were trying to remove.
8) What is the closest equivalent to the Marks USA 5PDN for a ligature-resistant passage opening in a behavioral health room?
The TownSteel MRX-A-01 is the nearest match: a Grade 1 heavy duty ligature-resistant mortise lockset in passage function with satin stainless steel arch trim, for doors 1-3/4 inch thick. The Marks USA 5PDN is also Grade 1 with a ligature-resistant, ADA-compliant design, but it operates as a push/pull paddleset rather than trim you grip and turn. The MRX-A-01 uses an arch trim the hand slides against; the 5PDN uses paddles with a short throw angle. Both answer the same anti-ligature requirement, so the choice comes down to which operating motion the facility has standardized on.
9) Is there an anti-ligature mortise passage lockset with a lever instead of a paddle?
Yes. The TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in passage function, stainless steel, for 1-3/4 inch doors. It covers the same passage duty as the Marks USA 5PDN, which is an F01 passage function paddleset, but the operating motion differs: the MRX-L-01 is a sloped lever, the 5PDN is a push/pull paddle with a short throw angle and variable mounting positions. Rooms where staff carry supplies through the door often favor the paddle; rooms matched to an existing lever standard favor the MRX-L-01.
10) Does the Marks USA 5PDN meet ADA requirements for operable hardware?
Yes, the 5PDN is ADA compliant. The push/pull paddle needs no tight grasping, pinching, or wrist twisting to operate, and the short throw angle keeps the effort low, which is exactly what the accessible operable parts requirement is aimed at.
11) Does the Marks USA 5PDN paddleset need power or wiring run to the door?
No power needed. The 5PDN is a purely mechanical paddleset, not an electronic device, so there is no transfer hinge, no power supply, and no wiring in the frame. If access control at the opening is the goal, a wired or electrified mortise lock is the other direction to look, such as the BEST 45HW wired electromechanical mortise lock running 12V or 24V, or the Command Access ML190 with field selectable EL/EU operation on 24VDC.
12) How well does the Marks USA 5PDN paddle hold up on a high-traffic patient room door?
The paddle runs on lever support springs with 5/16 inch hubs, and the hub material is steel, which is the wear point on any paddle or lever set since it takes the operating load every cycle. Combined with the Grade 1 rating, that is the construction the 5PDN carries for repeated daily use in a commercial setting.
13) Which mortise locks carry a 3-hour fire rating like the Marks USA 5PDN?
The 5PDN is UL Listed for a 3-hour fire rating. Among mortise peers, the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock rated 3 hours, and the Schlage Electronics LEBMB-ADD mobile-enabled mortise lock is rated 3 hours at Grade 2. The Falcon MA101 Grade 1 heavy duty mortise passage lock is fire rated as well. Where the opening is a 3-hour rated cross-corridor or stair door in a behavioral health area, the 5PDN is the one of that group that is both Grade 1 and ligature resistant.
14) Is a mortise deadbolt an alternative to the Marks USA 5PDN?
No, they do different jobs. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset, the Kaba Ilco 185 Series is a no-handing mortise deadbolt, and the Alarm Lock DL4500 is a Grade 1 electronic mortise deadbolt with privacy keypad for doors 1-5/8 inch to 1-7/8 inch. A deadbolt secures the door but gives no latching or operating hardware. The Marks USA 5PDN is an F01 passage paddleset that operates the door on a short throw angle with a 3/4 inch latch throw. A deadbolt is added alongside operating hardware, not in place of it.
15) What finish does the Marks USA 5PDN paddleset come in?
One finish only: US32D satin stainless steel. That is the standard institutional finish, so it matches the stainless push plates, kick plates, and pulls typically already hung in a healthcare corridor, and it holds up to repeated disinfectant wipe-down.
16) Which non-handed mortise options are there besides the Marks USA 5PDN?
The 5PDN is non-handed and reversible, supporting both pull and push configurations from variable mounting positions. Among peers, the Falcon MA101 Grade 1 heavy duty mortise passage lock is field reversible, the BEST 45HCAC heavy duty mortise lock body offers field reversible operation, and the Kaba Ilco 185 Series mortise locks are supplied with no handing. Handed alternatives exist too, such as the Baldwin 6310190RRLS right hand reverse entry/storeroom mortise lock, which must be ordered to the swing of the door.
17) What matches a Marks USA 5PDN for finish when standardizing stainless hardware across a floor?
The 5PDN is supplied in US32D satin stainless steel. The TownSteel MRX-A-01 is a satin stainless steel ligature-resistant arch trim mortise lockset and the MRX-L-01 is a stainless steel anti-ligature lever mortise lockset, both Grade 1 heavy duty passage function for 1-3/4 inch doors. Between them, a floor mixing paddle openings and lever openings can hold one stainless appearance and one anti-ligature standard.
