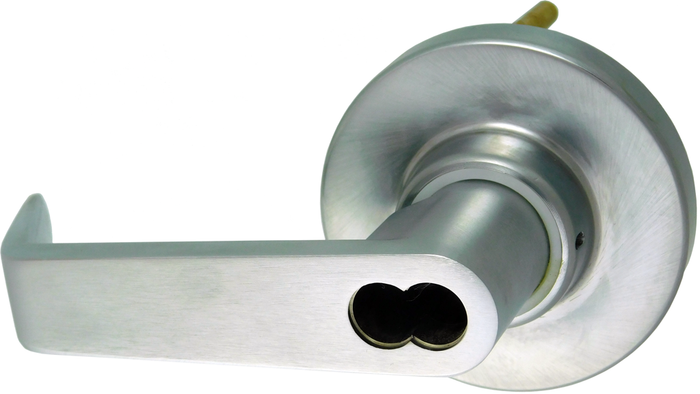

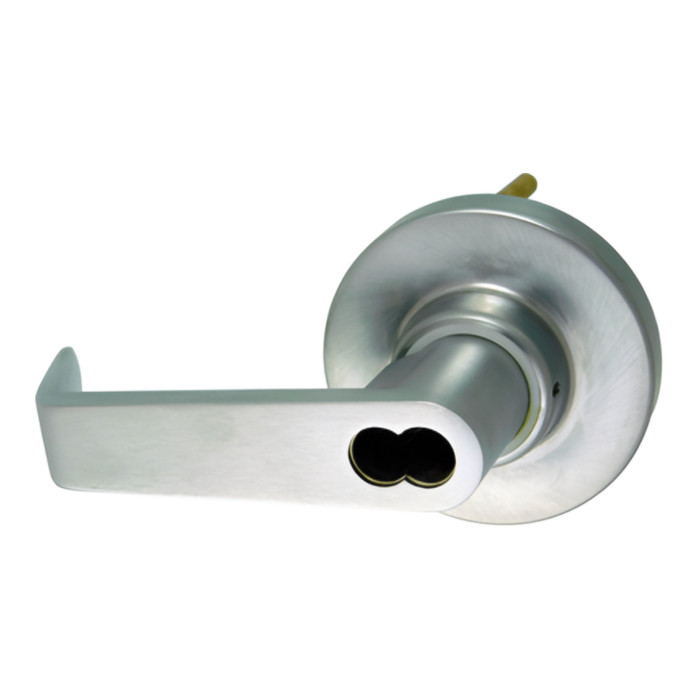

Marks USA M195RF Exit Trim - SFIC Prep Lever x Rose Storeroom Function, Small Format IC, Less Core, 626/US26D Satin Chrome

Marks USA M195RF Exit Trim Lever x Rose Storeroom Function, SFIC Prep, Small Format IC, Less Core, Satin Chrome 626/US26D

(No reviews yet) Write a Review

Model: M195RF/26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$205.91
$103.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Marks USA M195RF Exit Trim — SFIC Prep Lever x Rose Storeroom Function, Small Format IC, Less Core, Satin Chrome 626/US26D

The Marks USA M195RF is a Grade 1 commercial exit trim featuring a lever x rose configuration in a Storeroom function with Small Format Interchangeable Core (SFIC) prep, supplied less core. Built with solid cast Zamac levers with a 1/2" return and thru-bolted 3-7/16" spring-loaded roses on a steel chassis, this trim is engineered for demanding commercial applications. Compatible with door thicknesses from 1-5/8" to 1-7/8", it delivers reliable storeroom-function security in a refined Satin Chrome (626/US26D) finish.

Key Features

  • Storeroom Function (SFIC Prep): M195RF model provides storeroom function specifically designed for Small Format Interchangeable Core (SFIC) cylinders — core not included, allowing flexibility in keying systems.
  • Solid Cast Zamac Levers: Levers are constructed from solid cast Zamac with a 1/2" return for durable, long-lasting performance in high-traffic commercial environments.
  • Thru-Bolted Rose Mounting: 3-7/16" spring-loaded roses are thru-bolted for a secure, tamper-resistant installation that maintains trim alignment over time.
  • Door Thickness Compatibility: Accommodates door thicknesses from 1-5/8" to 1-7/8" for versatile installation across a wide range of commercial door assemblies.
  • Steel Chassis Construction: Heavy-duty steel chassis provides structural integrity and reliable operation under demanding commercial use conditions.
  • Standard Clutch Mechanism: Equipped with a standard clutch for consistent lever operation and protection against forced entry or overload.
  • Satin Chrome Finish (626/US26D): Finished in 626/US26D Satin Chrome for a professional, corrosion-resistant appearance that complements a wide range of commercial door hardware.
  • Multiple Trim Options Available: Part of a broader trim family including Entry (M195S/M195RS), Storeroom (M195F/M195RF), Passage (M195N), and Dummy (M195DT) configurations for coordinated hardware solutions.

Certifications & Compliance

  • Grade 1 — Commercial Grade Hardware
  • Commercial Application Rated

Technical Specifications

  • Grade: Grade 1
  • Product Group: Mechanical Locks
  • Product Subgroup: Panic Devices & Exit Alarms
  • Product Type: Cylindrical Locks
  • Subcategory: Cylindrical Locks
  • Commercial/Residential: Commercial
  • Lock Type: Cylindrical
  • Product Category: Mechanical Locks
  • Department: Door Hardware
  • Lever Design Name: American
  • Mechanical Option Details: Standard Clutch
  • Mounting Method: Thru Bolt

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Marks USA M195RF?

Marks USA M195RF exit trim delivers professional-grade reliability through solid cast Zamac lever construction, a steel chassis, and thru-bolted 3-7/16" spring-loaded roses engineered to withstand the rigors of commercial door applications. Rated Grade 1 and designed for SFIC compatibility, the M195RF provides the flexibility and durability that security professionals demand in storeroom-function exit trim hardware.

Manufacturer Resources

Marks USA Product Catalog

Product Specs

Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Panic Devices & Exit Alarms
Product Type:
Cylindrical Locks
Subcategory:
Cylindrical Locks
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Series:
M195 Series
Product Function:
Storeroom
Product Category:
Mechanical Locks
Department:
Door Hardware
Lever Design Name:
American
Product Material:
Steel
Mechanical Option Details:
Standard Clutch
Mounting Method:
Thru Bolt

Marks USA M195RF/26D – Frequently Asked Questions

1) Does the Marks M195RF come with a cylinder, or do I have to order the core separately?
It ships less core. The M195RF is prepped for a small format interchangeable core (SFIC), and you supply the core, so it drops into whatever SFIC keying system the building already runs. Budget the core and the keying as a separate line on the order.
2) What does storeroom function mean on the M195RF exit trim, and is that what I want on a stairwell or supply room door?
Storeroom function means the outside lever is always locked. Key retracts the latch for entry, and the lever relocks as soon as the key is withdrawn, so the door is never left unsecured by accident. That is the right choice for supply rooms, mechanical rooms, IT closets and stair doors where free egress comes from the inside device and the outside must stay locked at all times. If you want the lever to be left unlocked during business hours instead, the entry configuration in the same M195 family is the one to specify.
3) How does the M195RF lever trim mount, and will it stay tight on a high traffic door?
Mounting is thru-bolt. The 3-7/16 inch spring-loaded roses bolt through the door to each other rather than relying on wood screws, which is what keeps the trim from loosening and rotating under daily traffic and makes it harder to pull off from the outside. The chassis is steel and the levers are solid cast Zamac with a 1/2 inch return.
4) I want keypad or card access instead of a key on this door. What should I buy instead of the M195RF?
The M195RF is mechanical trim keyed by an SFIC core, so it has no code or credential entry. For standalone keypad entry that still takes an IC/SFIC core for key override, the Alarm Lock Trilogy T2 DL2700 is a Grade 1 cylindrical lock covering the same 1-5/8 to 1-7/8 inch door range. For credential and mobile access on a networked system, the Schlage NDEB ENGAGE is a Grade 1 wireless cylindrical lock that includes a storeroom function and fits 1-5/8 to 2 inch doors.
5) Does the Marks M195RF include a latch and strike, or is it just the outside trim?
The M195RF is exit trim: the outside lever, rose and chassis that mount to an exit device. It is not a complete lockset, so there is no separate latch or strike in the box, and it needs the exit device it trims to be on the door. If what you actually need is a standalone keyed lever with its own latch and ANSI strike, the Stanley QCL200 ships keyed different on an SC keyway with a 118F ANSI 1-1/8 by 2-3/4 inch strike.
6) Can I key the Marks M195RF into the master key system we already use across the building?
Yes, as long as your system runs small format interchangeable cores. The M195RF is SFIC prepped and ships less core, so you drop in a core cut to your existing masterkey system and it operates on the same keys as the rest of the facility. That also means rekeying a compromised door later is a core swap, not a lock removal. It will not accept a large format or a standard mortise cylinder.
7) Which lock should be used where the door is thicker than 1-7/8 inches and the M195RF will not reach?
The Marks USA M195RF tops out at 1-7/8 inch door thickness. For a thicker leaf, the Dorma C853 entrance lever and the Dorma C150 entry/office lever are both Grade 1 and go to 2-1/4 inch, the widest range among the comparable levers. The Schlage NDEB reaches 2 inch at Grade 1 heavy duty, and the SDC E75 keypad lockset reaches 2-1/8 inch. The Cal-Royal CAL20 and CAL30 also go to 2 inch at Grade 1 in privacy and passage functions.
8) What is a comparable Grade 1 cylindrical storeroom lever that fits the same 1-5/8 inch to 1-7/8 inch door range?
The Marks USA M195RF is a Grade 1 storeroom-function cylindrical trim for doors 1-5/8 inch to 1-7/8 inch thick. For the same opening with electronic credentials instead of a keyed core, the Schlage NDEB is a Grade 1 heavy duty cylindrical lock in the ENGAGE Series covering doors 1-5/8 inch to 2 inch. The Alarm Lock Trilogy T2 DL2700 is also Grade 1 and covers 1-5/8 inch to 1-7/8 inch, matching the M195RF door range exactly, and it is IC/SFIC compatible so an existing small format core program carries over.
9) What should be used instead of the M195RF on a restroom or a bedroom door?
The Marks USA M195RF is a storeroom-function lock and gives no inside thumbturn, so it is the wrong function for a privacy opening. The Cal-Royal CAL20 is a Grade 1 privacy lock for doors 1-3/8 inch to 2 inch, and the Orca OCL240 is a Grade 2 medium duty privacy cylindrical lockset. Where privacy is wanted with a keypad, the Schlage CO-100 is a Grade 1 heavy duty privacy lock for 1-3/4 inch doors and the Alarm Lock Trilogy 4100 is a Grade 1 privacy lock covering 1-5/8 inch to 1-7/8 inch.
10) Is there a keyless option for a storeroom door that the M195RF would otherwise cover?
The Marks USA M195RF is a mechanical cylindrical lock that needs a key in its small format core. To secure a storeroom without issuing keys, the TownSteel XCE-2000 is a Grade 1 heavy duty keypad cylindrical lockset for doors 1-3/4 inch to 2 inch, the SDC E75 is a battery-powered keypad cylindrical lockset for doors 1-3/4 inch to 2-1/8 inch, and the Schlage XE360M is a Grade 1 wireless tubular lock in classroom/storeroom function for 1-3/4 inch doors. Note that each of those raises the minimum door thickness above the 1-5/8 inch the M195RF accepts.
11) Can a Stanley QCL150 be substituted for the Marks USA M195RF?
They are not equivalents. The Marks USA M195RF is Grade 1 in storeroom function. The Stanley QCL150 is a Grade 2 entrance-function lever in the QCL100 Series, supplied less cylinder with a 2-3/4 inch backset latch and a 4-7/8 inch by 1-1/4 inch ASA strike. If the specification calls for Grade 1 storeroom, the QCL150 changes both the grade and the function. The Stanley QCL200 Series is offered keyed different with an SC keyway and a 118F ANSI 1-1/8 inch by 2-3/4 inch strike, which is a different strike prep than the QCL150 uses.
12) What is an access-controlled alternative to the M195RF when the door has to fail secure on power loss and tie into a system?
The Marks USA M195RF is a standalone mechanical lock with no electrical connection. Where the storeroom has to be released from an access control panel, the SDC Electra 7200 Series is a solenoid controlled cylindrical lock running dual voltage 12/24VDC for doors 1-3/4 inch to 2 inch. For a networked but wireless approach, the Schlage NDEB is a Grade 1 heavy duty ENGAGE Series lock using 2.4 GHz Bluetooth Low Energy and covering storeroom, office, privacy and apartment functions on doors 1-5/8 inch to 2 inch. The Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with audit trail if the requirement is a record of who opened the door.
13) What are the other Marks M195 trim options if I don't need a keyed lever?
The M195 trim family runs four ways: entry (M195S/M195RS), storeroom (M195F/M195RF), passage (M195N) and dummy (M195DT). Passage gives you a lever that always retracts the latch with no key, and dummy is a fixed pull with no latch at all, for the inactive leaf of a pair. The RF is the keyed storeroom version with SFIC prep.
14) Is the Marks M195RF lever Grade 1, and does it hold up in a school or hospital corridor?
Grade 1, commercial rated. That is the heaviest ANSI/BHMA duty tier for cylindrical locks, the one specified for schools, healthcare, government buildings and other high-cycle institutional openings. Combined with the steel chassis and thru-bolted roses, it is built for the traffic those facilities put on a door.
15) What does the standard clutch on the M195RF actually do for me?
The clutch lets the outside lever spin free when the trim is locked. Someone hanging on the handle or forcing it turns the lever without driving anything into the chassis, so the lock takes the abuse instead of the internal mechanism. On a locked storeroom or stair door that gets tried constantly, it is the difference between a lever that survives and one that gets replaced.
16) What finish does the Marks M195RF come in, and will it match the rest of my building's door hardware?
626/US26D satin chrome, and that is the single finish it is offered in. Satin chrome is the default commercial finish across most institutional hardware schedules, so it lines up with the closers, hinges and exit devices already on a typical office, school or healthcare opening. If your building is standardized on oil-rubbed bronze or satin brass, this is not the matching part.
17) If the door does not need to be keyed, what takes the place of an M195RF storeroom lever?
Storeroom function means the outside lever stays locked and is released by the key, so it only makes sense where a cylinder is going in. On an opening that should stay free-swinging, the Cal-Royal CAL30 is a Grade 1 passage lockset for doors 1-3/8 inch to 2 inch, and the Dorma CL701 is a Grade 2 non-keyed lever in passage function. For a medium duty non-keyed opening the Orca OCL210 is a Grade 2 passage cylindrical lockset.
18) What is the difference between the M195RF and an entrance-function lever like the Dorma C853?
The Marks USA M195RF is a Grade 1 storeroom lock: the key retracts the latch and the outside lever does not unlock and stay unlocked. The Dorma C853 is a Grade 1 entrance-function keyed lever in the C800 Series for doors 1-3/8 inch to 2-1/4 inch, and the Dorma C150 is a Grade 1 entry/office lever over the same 1-3/8 inch to 2-1/4 inch range, both of which allow the outside lever to be left unlocked for the business day. The Orca OCL250 covers entrance function at Grade 2 medium duty.
19) Will a dummy lever work in place of an M195RF on an inactive leaf?
No. The Marks USA M195RF is a keyed storeroom lock with a latching chassis, while a dummy trim is fixed and does not latch. For an inactive or pull-only leaf, the Dorma C501 is a Grade 2 single dummy lever for doors 1-3/8 inch to 1-3/4 inch, and the Orca OCL2170 is a Grade 2 half dummy lever at medium duty. Use those only where nothing has to latch or lock.
20) For a classroom door rather than a storeroom, what is the right lock instead of the M195RF?
The Marks USA M195RF is built in storeroom function, which keeps the outside lever locked at all times. Classroom and classroom-intruder openings call for a different function: the TownSteel FCE-2000 is a Grade 1 heavy duty classroom-function cylindrical lockset for 1-3/4 inch doors, the FCE-4000 adds intruder classroom function with RFID at the same 1-3/4 inch thickness, and the TownSteel XCE-9000 is a Grade 1 classroom-intruder keypad lockset for 1-3/4 inch to 2 inch doors.
21) Does a mechanical pushbutton lock like the Lockey 1600 replace a Marks USA M195RF?
Only in part. The Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset covering doors 1-1/8 inch to 2 inch, and the Lockey 2830 is a mechanical pushbutton keyless knob lock with auto-locking passage function over the same 1-1/8 inch to 2 inch range. Both are knob trim and code-operated, where the Marks USA M195RF is a lever with a small format interchangeable core, so a facility running a master key system keeps that continuity with the M195RF and gives it up with a pushbutton knob. The Lockey E985 and E995 are electronic keypad lever locks but cover only 1-3/8 inch to 1-3/4 inch doors.
22) Are residential smart levers such as the Kwikset 912TNL an option where an M195RF is specified?
They are a different class of hardware. The Marks USA M195RF is a Grade 1 commercial lock with a steel chassis and thru-bolted roses. The Kwikset 912TNL SmartCode is a keyed-one-side electronic Tustin lever with Z-Wave for doors 1-3/8 inch to 2 inch, and the CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock in privacy function. A specification written for Grade 1 storeroom is not satisfied by a privacy-function or keyed-one-side lock regardless of the electronics.
23) What is the alternative to an M195RF when both sides of the door need to be controlled?
The Marks USA M195RF is a single-sided exit trim with a small format core on the outside. Where credentials are required entering and leaving, the Alarm Lock DL5200 is a double-sided electronic cylindrical lock with 100 user capacity and battery operation, fitting doors 1-5/8 inch to 1-7/8 inch, the same range the M195RF covers, so the door prep expectation is unchanged.
24) Does a deadbolt or tubular lock cover the same opening as an M195RF cylindrical lock?
No. The Marks USA M195RF is a cylindrical lock, meaning the chassis passes through a bored cross hole in the door face. The Stanley QTL230E in the QTL200 Series is a deadbolt function product, which secures but does not provide latching lever operation, and the Schlage XE360M is a wireless tubular lock rather than a cylindrical one, so it uses a different bore. Confirm the existing door prep before treating either as a swap for a cylindrical chassis.
25) Which keypad locks let a facility keep a mechanical key override alongside the M195RF-style core?
The Marks USA M195RF is prepped for a small format interchangeable core and supplied less core, so keying is chosen separately. If some doors in the same facility need pushbutton entry while retaining a key, the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with key override function, the Lockey E985 is an electronic keypad lever lock with remote control and key override for doors 1-3/8 inch to 1-3/4 inch, and the Accentra nexTouch NTB613 is a Grade 1 cylindrical keypad lock with pushbutton entry.
26) What lever style is the M195RF, and is it ADA-friendly for a public building?
The lever is the Marks American design, solid cast Zamac with a 1/2 inch return. A return that curves the lever end back toward the door is the detail that keeps clothing and equipment from catching as people move through, which is why it is the standard shape on institutional openings. It is a lever rather than a knob, so it operates without grasping or twisting.
