McKinney QC-FT2024 Female Terminal AWG 20-24

McKinney QC-FT2024 Female Terminal AWG 20-24

(No reviews yet) Write a Review

Model: QC-FT2024

In Stock (leaves warehouse same day if ordered before 3pm ET)

$45.69
$41.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
McKinney QC-FT2024 Female Terminal AWG 20-24

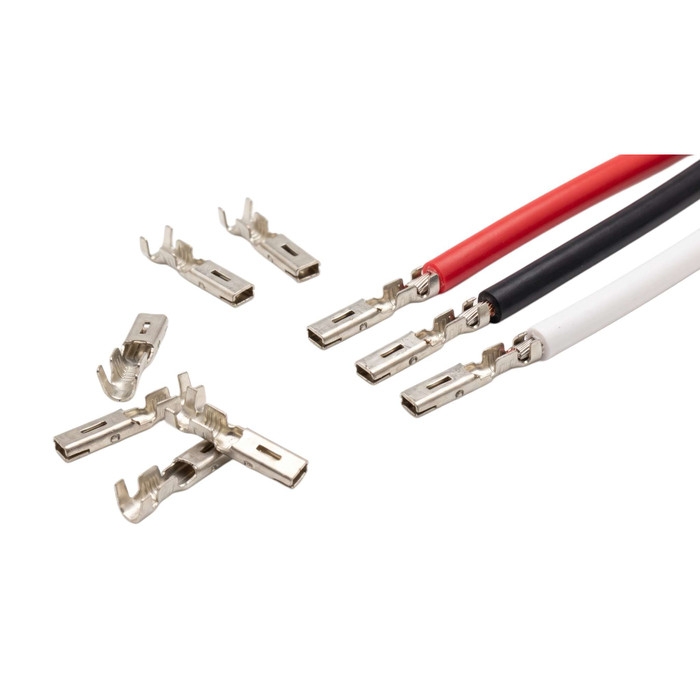

The McKinney QC-FT2024 is a high-precision, commercial-grade female crimp terminal pin engineered for the ASSA ABLOY ElectroLynx® Quick Connect system. Unlike pre-molded molded wiring harnesses, this loose-piece terminal component gives installers and service technicians the flexibility to build, repair, or custom-pin their own ElectroLynx-compatible connectors directly in the field.

Designed specifically to crimp onto wires ranging from 20 to 24 AWG, the QC-FT2024 creates a seamless, low-resistance connection when snapped into ElectroLynx female receptacle housings (such as the QC-RF4 or QC-RF8). It provides an essential building block for custom access control wiring—ensuring a secure, continuous path for power and data passing through electric hinges, power transfer devices, and electromechanical locks without dropping voltage.

Key Features

  • Field-Customizable Termination: Enables custom assembly, pin adjustments, or structural length overrides on-site rather than relying entirely on fixed-length pre-made harnesses.

  • Optimized Wire Range (20-24 AWG): Specifically sized to grip mid-gauge access control wires safely, offering the mechanical strength needed to prevent wire pull-outs.

  • ElectroLynx® Ecosystem Support: Fits flawlessly inside standard ElectroLynx female housing plugs, maintaining total cross-compatibility with ASSA ABLOY brands (Sargent, Corbin Russwin, Yale, etc.).

  • Excellent Conductivity: Formed from premium conductive alloys to minimize resistance, helping prevent signal failure or heating over millions of door cycles.

  • Service Kit Essential: A vital component for field repair kits to replace worn, pinched, or incorrectly pinned wires inside existing architectural openings.

Technical Specifications

Property Specification
Manufacturer McKinney (An ASSA ABLOY Group Brand)
Part Number (MPN) QC-FT2024 (Also known as QCFT2024)
Component Type Crimp Terminal Pin / Electrical Accessory
Gender Female
Wire Gauge Range 20 to 24 AWG
Connection Method Crimp termination (Optimized for standard Molex hand crimp tools like the McKinney QC-R003)
Packaging Unit Typically sold in contractor-friendly packs (e.g., 100-pack)
System Compatibility Fits standard ElectroLynx Female Receptacles (QC-RF Series)
Applications Electrified Hinge Repair, Custom Door Harness Assembly, Retrofit Access Control Systems



Manufacturer Resources

Product Specs

Product Group:
Door Hinges and Pivots
Product Type:
Wire Harnesses & Parts
Commercial/Residential:
Commercial
Application:
Door Side Application
Product Subgroup:
Pivots and Pivot Sets
Product Model:
QC-RF4
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

McKinney QC-FT2024 – Frequently Asked Questions

1) What wire gauge does the McKinney QC-FT2024 female terminal crimp onto?
The QC-FT2024 is sized for 20 to 24 AWG wire, which covers most access control and door power/data runs. Anything heavier than 20 AWG won't seat properly in the barrel, and anything thinner than 24 AWG risks pulling out of the crimp.
2) Which connector housings does the QC-FT2024 pin fit into?
It drops into standard ElectroLynx female receptacle housings in the QC-RF series, including the QC-RF4 and QC-RF8. That keeps it cross-compatible across ASSA ABLOY brands such as Sargent, Corbin Russwin and Yale.
3) What tool do I need to crimp these ElectroLynx terminals in the field?
Crimp termination is the connection method, and the pin is optimized for standard Molex-style hand crimp tools such as the McKinney QC-R003. No solder, no special bench setup, so a tech can pin a connector at the opening.
4) Is this a male or female terminal, and does that matter?
Female. The QC-FT2024 is the female crimp pin, so it belongs in the female ElectroLynx receptacle housing. If you are building the mating half of the connection you need the male terminal instead, not this one.
5) Should I buy loose crimp terminals or a pre-made ElectroLynx harness?
Pre-molded harnesses come at fixed lengths and fixed pin counts, which is fine on new construction where the run is known. Loose pins like the QC-FT2024 are what you want for repairs and odd openings: you set your own wire length, re-pin a damaged conductor, or build a connector that matches what is already in the frame. Most service techs carry both.
6) Can I use the QC-FT2024 to repair an electrified hinge that has a pinched or broken wire?
That is one of its stated uses. Electrified hinge repair, custom door harness assembly and retrofit access control wiring are the listed applications, so a pinched or wrongly pinned conductor can be cut back, re-crimped and re-seated in the existing housing rather than replacing the whole hinge lead.
7) Will these ElectroLynx pins work with Sargent or Corbin Russwin electrified hardware, not just McKinney?
Yes. The ElectroLynx Quick Connect system is shared across ASSA ABLOY brands, so the same female pin serves McKinney hinges, Sargent, Corbin Russwin and Yale electrified hardware as long as you are seating it in an ElectroLynx female housing.
8) Is the QC-FT2024 terminal meant for commercial openings or residential doors?
Commercial. It is a door-side component for electrified commercial door hardware, carrying power and data through electric hinges, power transfer devices and electromechanical locks.
