McKinney TA2714 Electric Hinge with ElectroLynx Quick Connect Concealed Circuit
Model: MCK-TA2714-QC
McKinney TA2714 Electric Hinge with ElectroLynx Quick Connect Concealed CircuitElectroLynx hinges use concealed plug connectors to transfer power from the incoming source through to the electrified...
McKinney
Starting at
$196.10
$143.07
Molex/Repair/Service Kit
Includes 2, 4, 8 Molex receptacles and plugs (Qty. 10 ea) and the corresponding terminals (100 of each type), extraction tool and pinning assembly guide. Customer must purchase Molex crimper separately.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Product Group:
- Door Hinges and Pivots
- Product Type:
- Wire Harnesses & Parts
- Commercial/Residential:
- Commercial
- Features:
- Contains 10 Each 2, 4, 8 Molex Receptacles and Plugs as Well as Corresponding Terminals, Extraction Tool and Pinning Assembly Guide
- Product Subgroup:
- Pivots and Pivot Sets
- Product Model:
- QC-R001
- Product Category:
- Door Hinges and Pivots
- Department:
- Door Hardware
McKinney QC-R001 – Frequently Asked Questions
1) What comes in the McKinney QC-R001 ElectroLynx service kit?

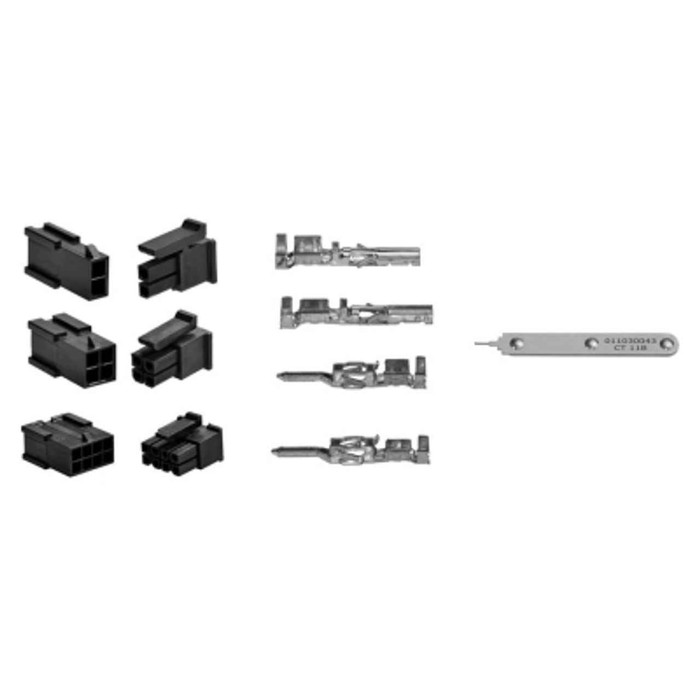

The QC-R001 kit holds 10 each of the 2-pin, 4-pin and 8-pin Molex receptacles and plugs, 100 terminals of each corresponding type, an extraction tool, and a pinning assembly guide. It is the repair and service kit for ElectroLynx quick-connect wiring, so one kit covers several openings rather than a single door.
2) Does the McKinney QC-R001 kit include the Molex crimper?
No. The crimping tool is a separate purchase. The kit supplies the connector bodies, terminals, an extraction tool for pulling pins back out of a housing, and the pinning assembly guide, but you have to supply the crimper to terminate the wire.
3) I have a damaged ElectroLynx connector on an electrified hinge. Can I repair it in the field instead of replacing the hinge?
That is exactly what the QC-R001 kit is built for. It gives you replacement Molex receptacles, plugs and terminals in the 2, 4 and 8 pin configurations used on ElectroLynx quick-connect wiring, plus an extraction tool to remove damaged pins from a housing and a pinning assembly guide showing how the circuits land. Add a Molex crimper and you can re-terminate a harness on site.
4) Which pin counts does the McKinney ElectroLynx repair kit cover?
Three: 2-pin, 4-pin and 8-pin. Those are the ElectroLynx quick-connect sizes, so a single kit covers a simple two-wire power transfer for an electrified strike or mag lock as well as an 8-pin run carrying power plus monitoring or request-to-exit back to an electrified lock.
5) Is the McKinney QC-R001 a hinge, or just the connectors?
Connectors only. The QC-R001 is a Molex repair and service kit, not a hinge or power transfer device. If you need the electrified hinge itself or a complete power transfer, this is not that part; order it alongside as the consumable that lets you terminate and repair the ElectroLynx connections.
6) Is the QC-R001 ElectroLynx kit meant for commercial openings?
Commercial. McKinney lists the QC-R001 as commercial door hardware, and it is a wire harness and parts item rather than a finished hinge, so it belongs in a locksmith's or integrator's service stock rather than on a residential job.
7) How many repairs will one QC-R001 kit cover?
Terminal count is the limit, not the housings. You get 10 receptacles and 10 plugs in each of the 2, 4 and 8 pin sizes, backed by 100 terminals of each type, so there are spare terminals for crimps that go wrong. For a property manager or integrator stocking a truck, that is enough for a run of service calls rather than a one-door fix.
