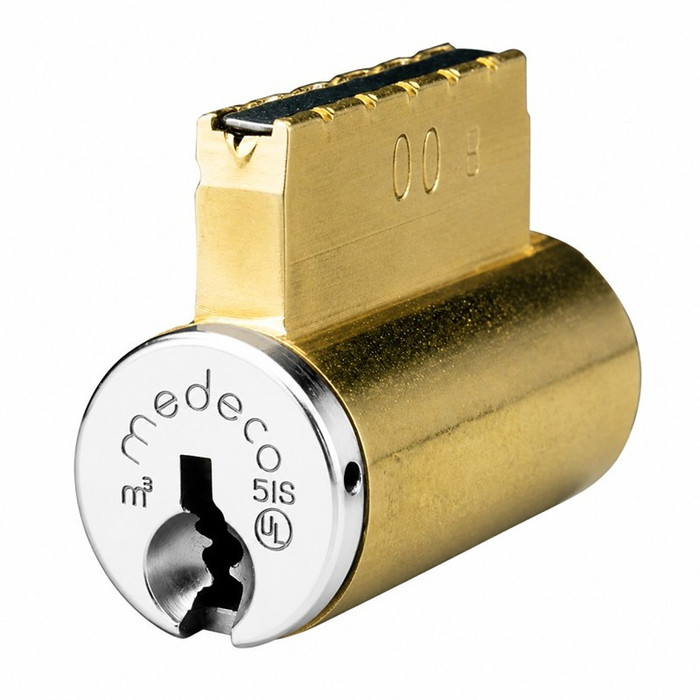

Medeco Medeco 2001400 - 5 Pin Cylinder for Schlage F Series Lever Manufactured Prior to 2004 MED-2001400

Medeco 2001400 5-Pin Key-in-Lever Cylinder for Schlage F Series Levers Manufactured Prior to 2004

(No reviews yet) Write a Review

Model: 2001400T-05-DLT
$176.00
$148.37
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$148.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2001400 5-Pin Key-in-Lever Cylinder for Schlage F Series Levers Manufactured Prior to 2004

The Medeco 2001400 is a 5-pin Key-in-Lever retrofit cylinder engineered specifically for Schlage F Series lever locksets manufactured prior to 2004. Constructed from durable machined brass components, this cylinder is designed to retrofit lever-type cylindrical locksets, knob-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks without requiring full lockset replacement. Medeco M4 (Medeco 4) Key-in-Knob/Lever cylinders carry UL437 listing for drill and pick resistance and feature utility patent-pending key control, delivering high-security performance in a direct-replacement format. Certified to ANSI A156.30 Level A and ANSI A156.5 Grade 1, this cylinder meets rigorous standards for key control, physical strength, and consistent quality in heavy-use commercial applications.

Key Features

  • 5-Pin Cylinder Configuration: Precision 5-pin tumbler design engineered for the Schlage F Series lever platform manufactured prior to 2004, ensuring a direct, compatible retrofit fit.
  • High-Security Key Control: Medeco M4 cylinders feature utility patent-pending key control and UL437 listing for drill and pick resistance, providing superior protection against unauthorized key duplication.
  • Durable Machined Brass Construction: All cylinder components are constructed of machined brass for long-lasting performance and corrosion resistance in demanding commercial environments.
  • Broad Retrofit Capability: Designed to retrofit knob-type cylindrical locksets, lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks — reducing the need for complete lockset replacement.
  • Industry-Leading Cylinder Range: Medeco offers over 100 different cylinder designs and tailpiece configurations, providing the largest retrofit capability in the industry for maximum installation flexibility.
  • Wide Finish Selection: Available in 14 finishes including Bright Brass (05), Satin Brass (06), Antique Brass (09), Satin Brass Blackened (10), Bright Bronze (11), Satin Bronze (12), Oil Rubbed Bronze (13), Bright Nickel (18), Satin Nickel (19), Antique Nickel (20), Black (22), Dark Bronze (24), Bright Chrome (25), and Satin Chrome (26).
  • Commercial-Grade Quality: ANSI A156.5 Grade 1 certification assures consistent quality and reliability for heavy-use commercial applications.

Certifications & Compliance

  • UL437 Listed — Drill and Pick Resistance (Medeco M4)
  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength (M4, M3)
  • ANSI A156.5 Grade 1 — Consistent Quality for Heavy-Use Applications (M4/M4 BiLevel, M3)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 5-Pin
  • Compatible Hardware: Schlage F Series Lever Manufactured Prior to 2004
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings Upgrading Existing Schlage F Series Lever Hardware
  • Educational Facilities Requiring High-Security Key Control
  • Healthcare Institutions with Controlled-Access Requirements
  • Retail Establishments Seeking Retrofit Security Upgrades
  • Government and Municipal Buildings with Restricted Key Systems
  • Multi-Tenant Residential Properties with Commercial-Grade Locksets
  • Industrial and Warehouse Facilities Requiring Drill and Pick Resistance

Why Medeco?

Medeco cylinders are built from durable machined brass components and engineered to meet the most demanding security certifications, including UL437 for drill and pick resistance and ANSI A156.30 Level A for patent-protected key control. With over 100 cylinder designs and tailpiece configurations available, Medeco delivers unmatched retrofit flexibility — allowing facilities to upgrade security without replacing entire locksets. For commercial applications where key control and physical security are non-negotiable, the Medeco 2001400 provides a proven, professional-grade solution.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2001400
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
5Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2001400T-05-DLT – Frequently Asked Questions

1) Will the Medeco 2001400 cylinder fit my Schlage F Series lever?
Only if the lever was manufactured before 2004. The Medeco 2001400 is a 5-pin key-in-lever retrofit cylinder cut specifically for the pre-2004 Schlage F Series lever platform. Schlage changed the F Series cylinder interface, so a lever made from 2004 onward takes a different Medeco key-in-lever cylinder, not this one. Check the date of the lockset before you order, because the two are not interchangeable.
2) Can I upgrade to Medeco security without replacing the whole Schlage lockset?
That is exactly what the 2001400 is for. It drops into the existing pre-2004 Schlage F Series lever and replaces only the cylinder, so the lever, latch and door prep all stay as they are. Medeco builds the same key-in-knob/lever cylinder family to retrofit knob-type and lever-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks, with over 100 cylinder and tailpiece configurations across the line. For a property manager running a floor of Schlage levers, that means a key control upgrade without touching the doors.
3) Do I order the Medeco 2001400 in Biaxial or M3?
Both keyways are offered, and the right one is whichever platform your facility is already keyed to. Biaxial and M3 are separate Medeco key systems, and keys will not cross between them, so a cylinder ordered on the wrong platform cannot be brought into your existing master key system. If you have no Medeco system yet, pick one and standardize on it across the building.
4) Is the Medeco 2001400 drill and pick resistant, and what standards does it meet?
UL 437 listed for drill and pick resistance as a Medeco M4 key-in-knob/lever cylinder, certified to ANSI A156.30 Level A for patent-protected key control and physical strength, and to ANSI A156.5 Grade 1 for heavy-use commercial applications. For a government, healthcare or education spec calling out restricted keying and attack resistance, those three are the lines that get checked.
5) What does Pinned versus Sub-Assembled mean when ordering a Medeco key-in-lever cylinder?
Three build states are offered on the 2001400. Pinned ships as a finished, keyed cylinder ready to install. Sub-Assembled ships unpinned for a locksmith or an end-user with a Medeco pinning kit to key into an existing system on site. Sub-Assembled, No Slider leaves the slider out as well, for shops building the cylinder up to their own restricted specification. If you are not set up to pin Medeco in house, order Pinned.
6) Can I get a Medeco retrofit cylinder to match the finish of my existing door hardware?
Thirteen finishes are built on the 2001400: Antique Nickel (20), Bright Brass (605), Satin Brass (606), Antique Brass (609), Bright Bronze (611), Satin Bronze (612), Dark Bronze Oil-Rubbed (613), Bright Nickel (618), Satin Nickel (619), Flat Black (622), Dark Bronze (624), Bright Chrome (625) and Satin Chrome (626). Since only the cylinder face shows once installed, matching to the existing Schlage lever finish is usually a matter of picking the equivalent BHMA number, 626 satin chrome being the common commercial default.
7) Will a Medeco key-in-lever cylinder stop tenants from copying keys at a hardware store?
That is the main reason buildings specify it. The Medeco M4 cylinder carries utility patent-pending key control, so blanks are restricted and cannot be duplicated over the counter, and the ANSI A156.30 Level A certification covers exactly that patent-protected key control alongside physical strength. Ordering Pinned on an existing Medeco system keeps every new cylinder inside the same restricted keyway.
8) Is a Medeco 2001400 cylinder suitable for a high-traffic commercial building?
It is built for commercial duty. All cylinder components are machined brass, which holds up to wear and resists corrosion, and the ANSI A156.5 Grade 1 certification is the heavy-use commercial tier. Typical placements are office buildings upgrading existing Schlage F Series levers, schools, hospitals, and multi-tenant residential running commercial-grade locksets.
