Medeco 2001700 5-Pin Key-in-Le...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$183.89

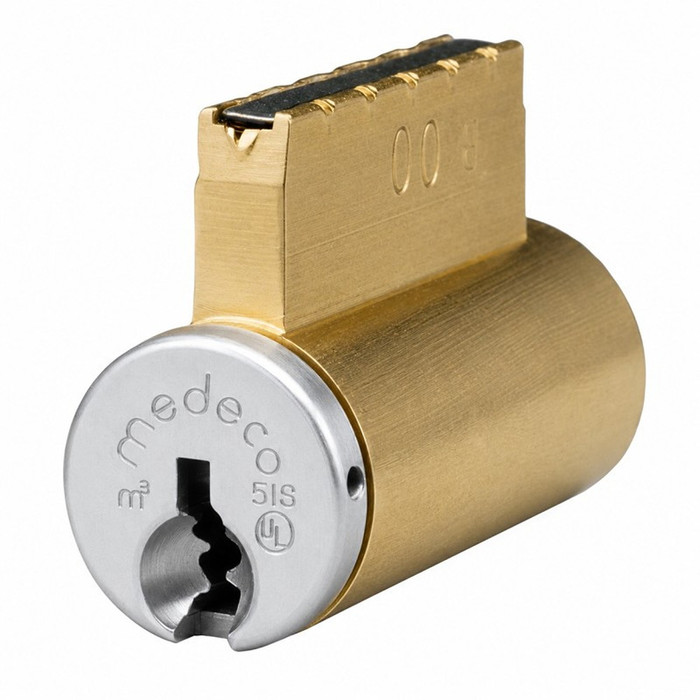

Medeco Medeco 2001700 - 5 Pin Cylinder for Schlage F Series Lever (Manufactured 2004 through 2007 MED-2001700

Medeco 2001700 5-Pin Key-in-Lever Cylinder for Schlage F Series (2004-2007)

(No reviews yet) Write a Review

Model: 2001700T-26-DLT
$183.89
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$183.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 2001700 5-Pin Key-in-Lever Cylinder for Schlage F Series (2004–2007)

The Medeco 2001700 is a 5-pin Key-in-Lever retrofit cylinder engineered specifically for Schlage F Series lever locksets manufactured between 2004 and 2007. Constructed from durable machined brass components, this cylinder is designed to retrofit lever-type cylindrical locksets without requiring full lockset replacement, making it an efficient upgrade path for commercial security applications. It carries ANSI A156.30 Level A certification for patent-protected key control and physical strength, as well as ANSI A156.5 Grade 1 certification for consistent quality in heavy-use environments. Medeco's M4 Key-in-Knob/Lever cylinders are also UL437 listed for drill and pick resistance with utility patent-pending key control.

Key Features

  • Precision Retrofit Design: Engineered to retrofit lever-type cylindrical locksets, knob-type cylindrical locksets, padlocks, and bored-type auxiliary deadlatches and deadlocks without full lockset replacement.
  • 5-Pin Cylinder Configuration: Features a 5-pin tumbler design for enhanced key control and security performance in commercial applications.
  • Schlage F Series Compatibility: Specifically designed for Schlage F Series lever locksets manufactured from 2004 through 2007 for precise, reliable fitment.
  • Machined Brass Construction: Cylinders are constructed of durable machined brass components for long-lasting performance in high-use commercial environments.
  • UL437 Listed (M4): Medeco M4 Key-in-Knob/Lever cylinders are UL437 listed for drill and pick resistance, providing a high level of physical security.
  • Patent-Pending Key Control: Utility patent-pending key control technology helps restrict unauthorized key duplication for enhanced access management.
  • Broad Retrofit Capability: Medeco offers over 100 different cylinder designs and tailpiece configurations, supporting the most popular security hardware brands in the industry.
  • Multiple Finish Options: Available in 14 finishes including Bright Brass, Satin Brass, Antique Brass, Satin Brass Blackened, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Nickel, Satin Nickel, Antique Nickel, Black, Dark Bronze, Bright Chrome, and Satin Chrome.

Certifications & Compliance

  • ANSI A156.30 Level A — Patent-protected key control and physical strength (M4, M3)
  • ANSI A156.5 Grade 1 — Consistent quality for heavy-use applications (M4/M4 BiLevel, M3)
  • UL437 Listed — Drill and pick resistance (M4 cylinders)

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 5-Pin
  • Compatible Hardware: Schlage F Series Lever (Manufactured 2004 through 2007
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Medeco?

Medeco cylinders are built from durable machined brass components and engineered to meet rigorous ANSI A156.30 Level A and ANSI A156.5 Grade 1 certifications, ensuring both physical strength and reliable key control in demanding commercial environments. With UL437 listing for drill and pick resistance and over 100 retrofit cylinder configurations available, Medeco delivers professional-grade security solutions that minimize the need for costly full lockset replacements.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
2001700
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
5Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 2001700T-26-DLT – Frequently Asked Questions

1) Can I upgrade my Schlage locks to Medeco keys without replacing the whole lockset?
That is exactly what the 2001700 is for. It is a retrofit cylinder: you pull the existing key-in-lever cylinder out of the Schlage F Series lockset and drop the Medeco in, keeping the lever, chassis, latch and door prep as they are. No new door boring, no new hardware to install. For a property manager or facility with a lot of openings, that is the cheap path to patented key control, because the labor is a cylinder swap rather than a lockset change-out.
2) Is the Medeco 2001700 UL 437 listed and what ANSI grade is it?
Security ratings on the Medeco 2001700 key-in-lever cylinder: ANSI/BHMA A156.30 Level A for patent-protected key control and physical strength, ANSI/BHMA A156.5 Grade 1 for heavy-use quality, and UL 437 listing for drill and pick resistance on the M4 cylinders. A156.30 Level A is the top tier of the high-security cylinder standard, which is what most institutional and government specs call out when they ask for a high-security cylinder rather than just a Grade 1 lock. Grade 1 under A156.5 is the commercial heavy-duty tier.
3) What is the difference between Medeco Biaxial and M3 keyway on the 2001700 cylinder?
Both are offered on the 2001700 as a Technology and Keyway choice, and the one that matters is whichever your building is already keyed to. A Medeco system is keyed within its own technology, so a Biaxial cylinder works on a Biaxial system and an M3 cylinder works on an M3 system. If you already run Medeco on other doors, match what you have or the new cylinder will not key into the existing master system. If you are starting fresh, pick one and stay on it across the facility. Note the UL 437 listing in the product data is stated for M4 cylinders.
4) Do I order the Medeco 2001700 pinned or unpinned?
Three ways to order it. Pinned means Medeco pins the cylinder to your key bitting at the factory, which is what you want if you are not running your own key machine and you need it to work out of the box on an existing system. Sub-Assembled ships for a locksmith or end user with a Medeco license to pin on site. Sub-Assembled No Slider is the same, minus the slider component, for shops that stock and set their own sliders. If you are a property manager rather than a locksmith, order Pinned and supply your key system information.
5) Can I key the Medeco 2001700 into a master key system with my other Medeco cylinders?
Yes, provided the rest of the system is on the same Medeco technology. Order the 2001700 in the keyway that matches your existing system, Biaxial or M3, and specify Pinned so it arrives cut to your bitting. Because Medeco key control is patent-protected and the cylinder meets A156.30 Level A, keys cannot be duplicated at a hardware store, which is the point of putting one on a tenant or mechanical room door in the first place. Mixing technologies across a facility breaks the master system, so standardize on one before expanding.
6) What finishes does the Medeco 2001700 key-in-lever cylinder come in?
Thirteen finishes on the 2001700, so it can be matched to nearly any existing lever: 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 20 Antique Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome and 626 Satin Chrome. Most commercial Schlage F Series openings are 626 Satin Chrome or 619 Satin Nickel, so if you are matching a building standard and cannot read the finish off the lock, those are the two to check first.
7) Will this Medeco cylinder work in a Schlage knob lock or a padlock instead of a lever?
The 2001700 itself is the 5-pin configuration for Schlage F Series levers from 2004 to 2007. Medeco's key-in-knob/lever cylinder family as a whole retrofits knob-type cylindrical locksets, padlocks, and bored auxiliary deadlatches and deadlocks as well, but those take different cylinder and tailpiece configurations, not this one. Medeco publishes over 100 cylinder and tailpiece combinations covering the major hardware brands, so for a knob lock or a padlock you want the configuration matched to that housing rather than the F Series lever part.
8) Does a 5-pin Medeco cylinder give me real drill and pick resistance, or do I need 6-pin?
The 2001700 is a 5-pin cylinder, and the security in a Medeco does not come from pin count. It comes from the angled, rotating pin design and the patent-protected keyway, which is what earns the A156.30 Level A rating and the UL 437 listing for drill and pick resistance on the M4 cylinders. Pin count on a key-in-lever cylinder is dictated by the housing it retrofits, not by how much security you want. For a Schlage F Series lever from 2004 to 2007, 5-pin is the configuration that fits.
9) Is the Medeco 2001700 cylinder durable enough for a high-traffic commercial door?
It is a commercial-duty part. The 2001700 is built from machined brass components and carries ANSI A156.5 Grade 1, the heavy-use tier, which is the grade schools, hospitals, government buildings and multi-tenant residential specs normally require. Brass is what you want in a cylinder body because it machines to tight tolerance and does not seize the way cheaper pot metal does after a few winters on an exterior opening.
How fast can I get the Medeco 2001700T-26-DLT delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Medeco 2001700T-26-DLT come with a warranty?
Absolutely. The Medeco 2001700T-26-DLT is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Medeco 2001700T-26-DLT?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Medeco 2001700T-26-DLT from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
