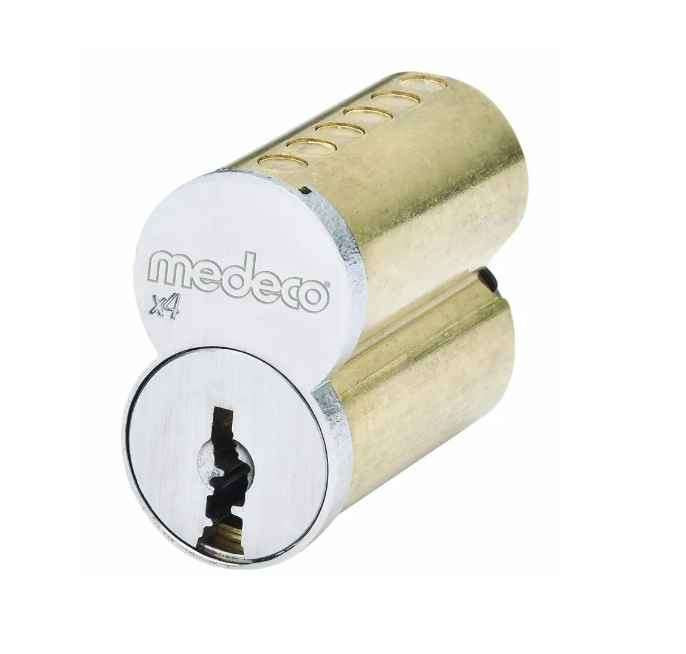

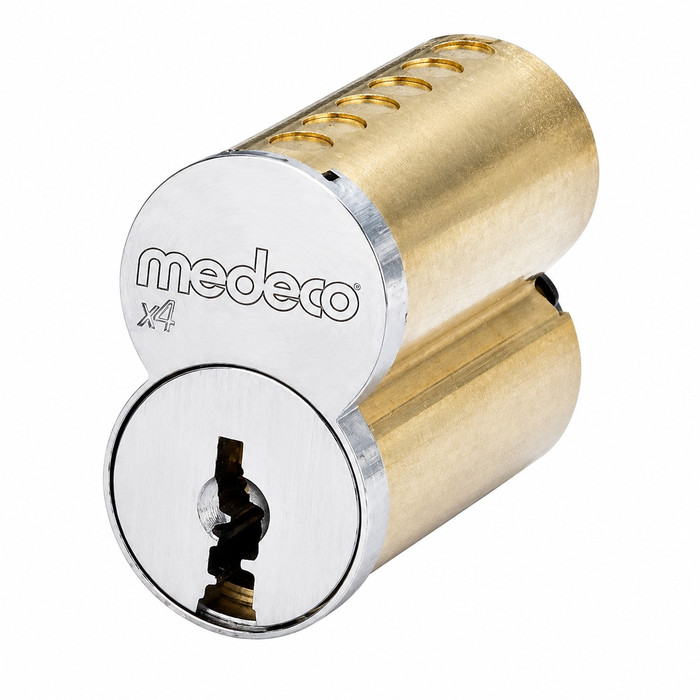

Medeco 33600006-K-26-7J-S Interchangeable Core Cylinder, Small Format, Medeco KM, 7J Keyway, 6-Pin, Sub Assembly, Satin Chrome, With Clip Retainer, Removable Front Plate

Medeco 33600006 Small Format Interchangeable Core Cylinder, KeyMark KM, 7J Keyway, 6-Pin, Satin Chrome, Sub Assembly with Clip Retainer and Removable Front Plate

(No reviews yet) Write a Review

Model: 33600006-K-26-7J-S
$100.00
$66.05
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$100.00
$66.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 33600006 Small Format Interchangeable Core Cylinder — KeyMark KM, 7J Keyway, 6-Pin, Satin Chrome

The Medeco 33600006 is a Small Format Interchangeable Core (SFIC) Cylinder engineered for commercial-grade security applications. Featuring the Medeco KeyMark (KM) technology with a 7J keyway and 6-pin configuration, this sub assembly cylinder delivers the high-security key control and precision construction that Medeco is known for. Supplied in a Satin Chrome finish, it includes a clip retainer and removable front plate for streamlined installation and serviceability in interchangeable core systems.

Key Features

  • Small Format Interchangeable Core (SFIC): Designed for small format IC systems, allowing quick core removal and replacement without disassembling the lock hardware — ideal for high-security commercial facilities.
  • Medeco KeyMark (KM) Technology: Incorporates Medeco's proprietary KeyMark technology for enhanced key control, restricted key duplication, and superior pick resistance.
  • 7J Keyway: Configured with the 7J keyway for compatibility within Medeco KeyMark keying systems, ensuring proper key interchange and master key system integration.
  • 6-Pin Configuration: Six-pin cylinder design provides an expanded combination matrix for complex master key systems and high-security keying requirements.
  • Sub Assembly Format: Supplied as a sub assembly for integration into compatible small format interchangeable core hardware, offering flexibility across a wide range of commercial door hardware applications.
  • Clip Retainer Included: Comes with a clip retainer for secure, tool-free core retention within the host hardware, simplifying installation and core change procedures.
  • Removable Front Plate: Features a removable front plate for easy access and adaptability to various mortise lock and trim configurations.
  • Satin Chrome Finish: Finished in Satin Chrome (26) for a professional aesthetic that coordinates with a wide range of commercial door hardware finishes.

Certifications & Compliance

  • Commercial Grade — Designed and rated for commercial door hardware applications
  • Medeco KeyMark Restricted Keyway System — Key control and duplication restriction

Technical Specifications

  • Series: Small Format Interchangeable Core (SFIC)
  • Cylinder Technology: Medeco KeyMark (KM)
  • Pinning: 6-Pin
  • Keyway: 7J Keyway
  • Assembly Type: Sub-Assembly with clip retainer, removable front plate
  • Construction: Solid brass construction, spool-shaped pins for pick resistance
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Campuses
  • Healthcare Institutions and Medical Facilities
  • Government and Municipal Buildings
  • Retail Establishments
  • Multi-Tenant Residential and Mixed-Use Properties
  • Industrial and Warehouse Facilities

Why Medeco?

Medeco's Small Format Interchangeable Core Cylinders are built to the exacting standards demanded by commercial security professionals, combining KeyMark restricted keyway technology with a precision 6-pin configuration for robust key control and master key system flexibility. The 33600006 sub assembly — complete with clip retainer and removable front plate — is engineered for demanding environments where security, serviceability, and long-term reliability are non-negotiable.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
SFIC Cylinder
Subcategory:
Small Format Interchangeable Core
Compatibility:
Keymark
Commercial/Residential:
Commercial
Technology:
KeyMark
Keyway Profile:
7J Keyway
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 33600006-K-26-7J-S – Frequently Asked Questions

1) What is a small format interchangeable core cylinder, and how is the Medeco 33600006 different from a standard mortise or rim cylinder?
An SFIC cylinder is a figure-eight shaped core that drops into a housing and pulls back out with a control key, so you can rekey an opening by swapping the core instead of pulling the lock apart. The Medeco 33600006 is that core format, built on KeyMark technology with a 7J keyway and six pins. A conventional mortise or rim cylinder threads or bolts into the lock body and has to be repinned in place. If your existing hardware is not already prepped for a small format IC housing, an SFIC core will not go in, and you need the conventional cylinder style instead.
2) Will the Medeco 33600006 core work on my existing keys if my building is already on a Medeco KeyMark system?
It has to be the same system. The 33600006 is a KeyMark cylinder cut for the 7J keyway, so it operates on keys from a KeyMark 7J system and it will not accept a key from a different Medeco keyway or from another manufacturer's restricted system. Six pin chambers means it also has to match the pinning depth of your existing master key system. Check the keyway stamp on a key you already carry before ordering.
3) Does the Medeco 33600006 come pinned to my key, or do I have to key it myself?
It ships as a sub assembly, not a finished keyed core. That means a locksmith pins it to your system before it goes in the door. If you run your own key system in house, or your locksmith holds your KeyMark bitting, this is the format you want. If you need a core that arrives ready to turn on a key you already have, a sub assembly is the wrong buy.
4) What comes with the Medeco 33600006 sub assembly?
The package includes the core sub assembly, a clip retainer, and a removable front plate. The clip holds the core in the host hardware without tools during a core change, and the front plate comes off so the assembly can be set up for different mortise lock and trim configurations. Pins, springs, and the key blanks for your system are the locksmith's side of the job.
5) Why choose a 6-pin KeyMark core over a standard 6-pin SFIC for a campus or hospital master key system?
Key control is the reason. KeyMark is a restricted keyway, so blanks are not sold over the counter and duplication is controlled through the system holder. On a campus, hospital, or municipal building where keys walk off with staff and contractors, that is the difference between rekeying a wing and issuing a replacement key. Six chambers also gives you more usable combinations for deep master key trees than a five pin core. A standard commercial SFIC on an open keyway costs less to key but anyone can copy the key.
6) Can I use the Medeco 33600006 in exit device trim, knobs, and padlocks across one building?
That is the point of the small format IC format. One core profile carries across mortise locks, cylindrical locksets, exit device trim, cabinet locks, and IC padlocks, as long as each piece of hardware is ordered with a small format IC prep. Standardizing on the 7J KeyMark core means one key system covers every opening type in the facility and a core swap on any of them takes the same control key. Hardware built for large format IC or for a conventional cylinder will not take it.
7) A tenant moved out and I need to change the locks on several doors fast. Does an SFIC cylinder like this actually save time?
Yes, and that is the main reason property managers spec IC. Pulling a core takes a control key and a few seconds per door, with no disassembly of the lock and no door off the hinges. Replacement cores get pinned ahead of time, so a turnover across a floor is a walk down the hall rather than a locksmith visit per opening. The catch is that every opening has to already be running IC hardware, and on a KeyMark system the replacement cores have to come from your own 7J bitting.
8) Is the 626 satin chrome finish on this Medeco core going to match my satin chrome or brushed nickel door hardware?
The core is finished 626 satin chrome, which is the standard satin chrome used across commercial lever sets, exit device trim, and mortise locks, so it reads consistently against 626 hardware on the same door. Against brushed nickel (619 or a 15 style residential finish) it will be close but not an exact match. On a core the visible surface is only the face, so a slight variance is far less noticeable than it would be on a full escutcheon.
9) Is the Medeco 33600006 cylinder suitable for residential use?
It is a commercial part. The 33600006 is built for commercial door hardware, and the KeyMark system behind it only makes sense where key control is administered, meaning a facility with a records holder and a locksmith who can cut blanks. A single family home has no IC prepped hardware to receive it and no system to pin it to. For apartment buildings, mixed use, and multi-tenant residential run by a manager, it is a fit.
