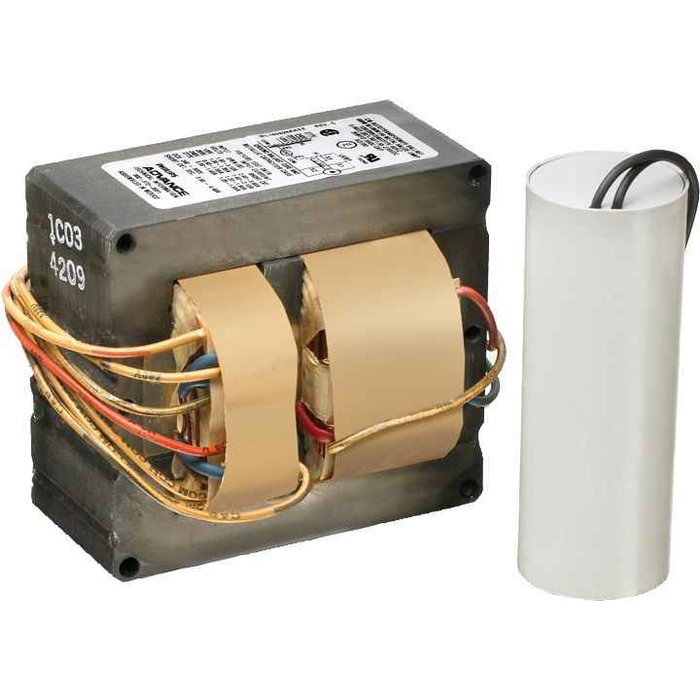

Advance 1000W Metal Halide Magnetic Ballast M47 5-Tap Multi-Voltage Kit

Advance 1000W Metal Halide Magnetic Ballast M47 5-Tap Multi-Voltage Kit

(No reviews yet) Write a Review

Model: 71A6552001
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$464.61
$287.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 1000W Metal Halide Magnetic Ballast M47 5-Tap Multi-Voltage Kit

Professional magnetic ballast for 1000W metal halide lighting applications

The Advance 1000W Metal Halide Magnetic Ballast delivers reliable performance for commercial and industrial lighting systems. This M47 ANSI code ballast features 5-tap multi-voltage capability (120/208/240/277/480V) and Class P thermal protection for versatile installation requirements. Built with Signify Electronics technology and manufactured in the USA, this magnetic HID ballast provides consistent lamp operation with probe start type and 0.9 power factor efficiency.

Professional Features & Benefits

  • 1000W Power Rating: Handles high-intensity metal halide lamps for demanding commercial lighting applications
  • 5-Tap Multi-Voltage Design: Compatible with 120/208/240/277/480V systems for flexible installation across various electrical configurations
  • M47 ANSI Code: Ensures proper lamp compatibility and optimal performance with standard metal halide fixtures
  • Class P Thermal Protection: Automatic thermal shutdown prevents overheating and extends ballast service life
  • Magnetic HID Technology: Proven reliability with 0.9 power factor and probe start operation for consistent lamp ignition
  • UL Listed & CSA Certified: Meets rigorous safety standards with RoHS compliance for professional installations
  • USA Manufacturing: Quality construction with Signify Electronics components for dependable long-term operation

Technical Specifications

  • Ansi Code: M47
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 24 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 1000 WTT
  • Product Height: 4.2500 IN
  • Product Length: 6.0000 IN
  • Product Type: Magnetic HID
  • Product Wattage: 1000 W
  • Product Weight: 24.100 Lbs
  • Product Width: 4.7000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PROBE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277/480 V

Professional Applications

  • Commercial warehouse and industrial facility lighting
  • Retail store and showroom high-bay illumination
  • Sports facility and gymnasium lighting systems
  • Parking structure and outdoor area lighting
  • Manufacturing plant and workshop applications
  • Professional office building common areas

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL and CSA certifications ensuring safety and performance standards. The Class P thermal protection and robust magnetic design provide long-term durability, while USA manufacturing with Signify Electronics components ensures consistent quality and professional-grade operation for demanding commercial lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
M47
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
24 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
1000 WTT
Product Height:
4.2500 IN
Product Length:
6.0000 IN
Product Type:
Magnetic HID
Product Wattage:
1000 W
Product Weight:
24.100 Lbs
Product Width:
4.7000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PROBE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277/480 V
Department:
Electrical

Advance 71A6552001 – Frequently Asked Questions

1) Can I use this 1000W metal halide ballast on 480V, or is it a single-voltage unit?
It is a 5-tap multi-voltage ballast covering 120, 208, 240, 277 and 480V at 60 Hz. You pick the tap that matches the service at the fixture and land the line lead on it. That means one part number covers a 277V retail bay and a 480V warehouse feed, which is why MRO buyers stock this one instead of five separate ballasts.
2) Is the capacitor included with the Advance 1000W M47 ballast kit, and what rating is it?
This is sold as a kit, and the capacitor spec is 24 MFD. Magnetic HID ballasts of this type need the correct microfarad value to strike and hold the lamp, so if you are replacing a failed capacitor only, 24 MFD is the value to match.
3) Can I dim a 1000W metal halide fixture using this Advance magnetic ballast?
No. The 71A6552001 is not dimmable. It runs the lamp at a ballast factor of 1.0, meaning full rated lamp lumens, with no reduced output setting. If the space needs level control, metal halide on a magnetic ballast is the wrong system for it, and you'd be looking at an LED retrofit instead.
4) Does this Advance metal halide ballast have built-in thermal protection for an enclosed high bay?
Yes, it carries Class P thermal protection, which cuts the ballast out if the winding temperature climbs too far and resets once it cools. In an enclosed high bay or a parking garage fixture where heat builds, that is the protection a spec writer is looking for on a magnetic core.
5) Is the Advance 71A6552001 ballast UL listed and RoHS compliant for a spec job?
It is UL recognized, holds a CSA certificate, and is RoHS compliant, and it is made in the USA. For federal, healthcare, or school work where domestic origin and third-party listing both get asked about on the submittal, those are the two boxes this one checks.
6) What power factor does this 1000W HID ballast run, and does it count as high power factor?
It runs a 0.9 power factor, which is high power factor by the usual trade threshold of 0.9 and above. On a 1000W load that keeps the line current down compared with a normal power factor ballast, which matters when you are counting fixtures on a branch circuit.
7) Can I run two 1000W metal halide lamps off one of these ballasts?
No. It is a single-lamp ballast rated 1000 watts. Each 1000W metal halide lamp needs its own M47 ballast, so a two-lamp fixture takes two.
