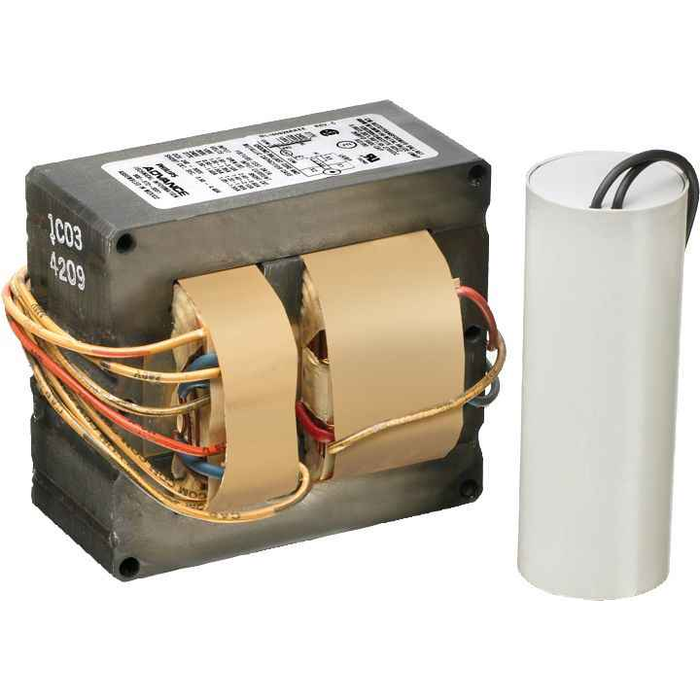

Advance Magnetic HID Ballast 1000W HPS S52 5-Tap Multi-Voltage Kit

Advance Magnetic HID Ballast 1000W HPS S52 5-Tap Multi-Voltage Kit

(No reviews yet) Write a Review

Model: 71A8753001
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$651.96
$632.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Magnetic HID Ballast 1000W HPS S52 5-Tap Multi-Voltage Kit

Professional HPS Lighting Control with Multi-Voltage Flexibility

The Advance Magnetic HID Ballast delivers reliable 1000W HPS lamp operation with versatile 5-tap voltage configuration supporting 120/208/240/277/480V applications. This magnetic ballast features S52 ANSI code compatibility, pulse start technology, and Class P thermal protection for professional lighting installations requiring dependable performance and multi-voltage adaptability.

Professional Features & Benefits

  • 1000W Power Rating: Provides full-power operation for high-intensity HPS lighting applications requiring maximum illumination output.
  • 5-Tap Multi-Voltage Design: Supports 120/208/240/277/480V operation, offering installation flexibility across diverse electrical systems and facility requirements.
  • S52 ANSI Code Compatibility: Ensures proper lamp matching and optimal performance with standard HPS lamp specifications.
  • Pulse Start Technology: Delivers reliable lamp ignition and consistent operation for professional lighting applications.
  • Class P Thermal Protection: Provides automatic thermal shutdown protection, enhancing safety and extending ballast service life.
  • Magnetic HID Technology: Offers proven reliability and durability for demanding commercial and industrial lighting environments.
  • 0.9 Power Factor: Maintains efficient power utilization and reduces electrical system loading for cost-effective operation.

Technical Specifications

  • Ansi Code: S52
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: HPS
  • Microfarad: 26 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 1000 WTT
  • Product Height: 4.2500 IN
  • Product Length: 6.0000 IN
  • Product Type: Magnetic HID
  • Product Wattage: 1000 W
  • Product Weight: 30.800 Lbs
  • Product Width: 6.0000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277/480 V

Professional Applications

  • Commercial Warehouse Lighting
  • Industrial Facility Illumination
  • Retail Store High-Bay Lighting
  • Manufacturing Plant Work Areas
  • Distribution Center Operations
  • Professional Sports Facilities
  • Large-Scale Outdoor Lighting

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with ULR and CSA certification, RoHS compliance, and Class P thermal protection. Made in USA with robust magnetic HID technology, this ballast provides dependable performance for demanding professional lighting applications requiring consistent operation and multi-voltage flexibility.

Manufacturer Resources

Product Specs

Ansi Code:
S52
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
HPS
Microfarad:
26 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
1000 WTT
Product Height:
4.2500 IN
Product Length:
6.0000 IN
Product Type:
Magnetic HID
Product Wattage:
1000 W
Product Weight:
30.800 Lbs
Product Width:
6.0000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277/480 V
Department:
Electrical

Advance 71A8753001 – Frequently Asked Questions

1) Will this Advance 1000W ballast run my existing 1000 watt high pressure sodium lamp?
It runs a single 1000W high pressure sodium lamp carrying ANSI code S52. Match the S52 designation printed on your lamp or on the old ballast label, because an HPS ballast is lamp-code specific; an S52 unit will not correctly operate a metal halide lamp or an HPS lamp of a different ANSI code. Ballast factor is 1, so the lamp runs at full rated lumens.
2) Does the Advance 71A8753001 ballast kit come with the capacitor, or do I order that separately?
It is sold as a kit built around a 26 MFD capacitor rating, along with the core and coil and pulse starter needed for S52 lamp operation. When you replace it, check that the capacitor value on your old assembly reads 26 MFD; a mismatched microfarad value on an HID circuit puts the lamp outside its proper operating current.
3) Can I dim a 1000W magnetic HPS ballast like this one?
No. This magnetic HID ballast is not dimmable and runs the lamp at full output only. If the space needs level control, you are looking at a different technology entirely, typically an LED high bay with a 0-10V driver, not a magnetic HID core and coil.
4) How heavy is this 1000W ballast and will it fit in my existing high bay housing?
Plan for a heavy core and coil: 30.8 pounds, measuring 6 inches by 6 inches by 4.25 inches across length, width and height. That weight matters for pole-top and high-bay mounting, since the fixture ballast tray and any remote enclosure have to carry it. Verify the mounting hole pattern and tray depth in your housing before swapping.
5) What protects the ballast if the fixture overheats?
Class P thermal protection is built in, meaning the ballast shuts itself down automatically if internal temperature climbs past the limit and resets once it cools. On enclosed high bay and outdoor floodlight housings where heat builds up, that is the feature keeping a failing lamp or a restrike condition from turning into a burned ballast.
6) Is this a pulse start or probe start ballast?
Pulse start. An igniter fires the high voltage pulse that strikes the HPS arc, which is standard for sodium lamps. If your fixture has a separate remote igniter in the circuit, confirm what the kit replaces before you rewire, since this assembly is supplied with the starting components for S52 operation.
