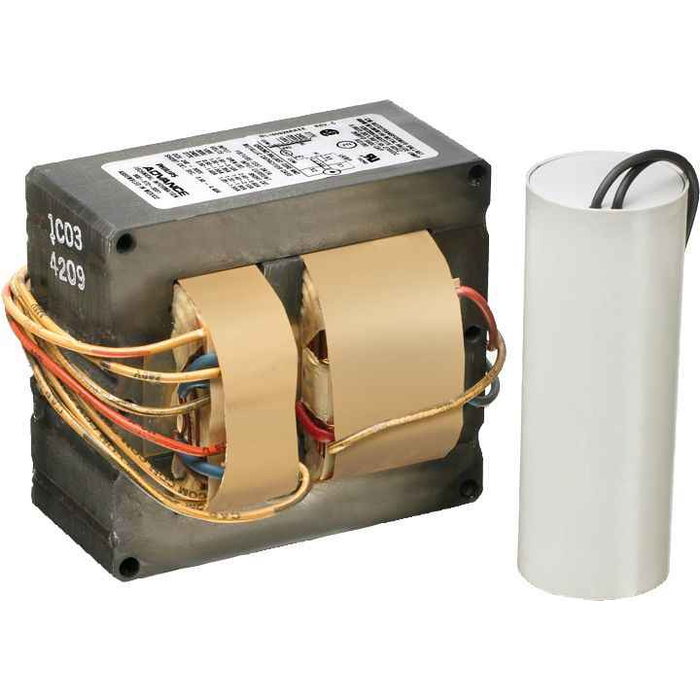

Advance Magnetic HID Ballast 250W HPS S50 5-Tap Multi-Voltage Kit

Advance Magnetic HID Ballast 250W HPS S50 5-Tap Multi-Voltage Kit

Professional HPS lighting ballast with multi-voltage capability

The Advance Magnetic HID Ballast delivers reliable 250W HPS lamp operation with versatile 5-tap voltage configuration. This professional-grade ballast features S50 ANSI code compatibility, pulse start technology, and Class P thermal protection for dependable performance across 120/208/240/277/480V applications. Made in USA with UL and CSA certifications for commercial and industrial lighting installations.

Professional Features & Benefits

• 250W Power Rating: Optimized for high-pressure sodium lamps with consistent light output and energy efficiency
• 5-Tap Multi-Voltage Design: Accommodates 120/208/240/277/480V systems for flexible installation across diverse electrical configurations
• S50 ANSI Code Compatibility: Ensures proper lamp matching and optimal performance with standard HPS fixtures
• Pulse Start Technology: Provides reliable lamp ignition and extended lamp life through controlled starting sequence
• Class P Thermal Protection: Built-in safety feature prevents overheating and extends ballast service life
• 0.9 Power Factor: High power factor reduces electrical system losses and improves overall efficiency
• UL and CSA Certified: Meets rigorous safety standards for commercial and industrial applications

Technical Specifications

• Ansi Code: S50
• Ballast Factor: 1
• Country Of Origin: USA
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Type: HPS
• Microfarad: 35 MFD
• Number Of Lamps: 1
• Power Factor: 0.9
• Power Rating: 250 WTT
• Product Height: 4.2500 IN
• Product Length: 4.7500 IN
• Product Type: Magnetic HID
• Product Wattage: 250 W
• Product Weight: 13.663 Lbs
• Product Width: 3.6000 IN
• Standard: ULR;CSA certificate;RoHS Compliant
• Start Type: PULSE
• Thermal Protection: CLASS P
• Voltage Rating: 120/208/240/277/480 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Warehouse Lighting
• Industrial Facility Illumination
• Parking Structure Lighting
• Street and Area Lighting
• Security and Perimeter Lighting
• Retail and Office Buildings
• Municipal and Government Facilities

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL and CSA certifications, Class P thermal protection, and USA manufacturing. The robust magnetic design provides long-term durability while RoHS compliance ensures environmental responsibility for professional lighting installations.
